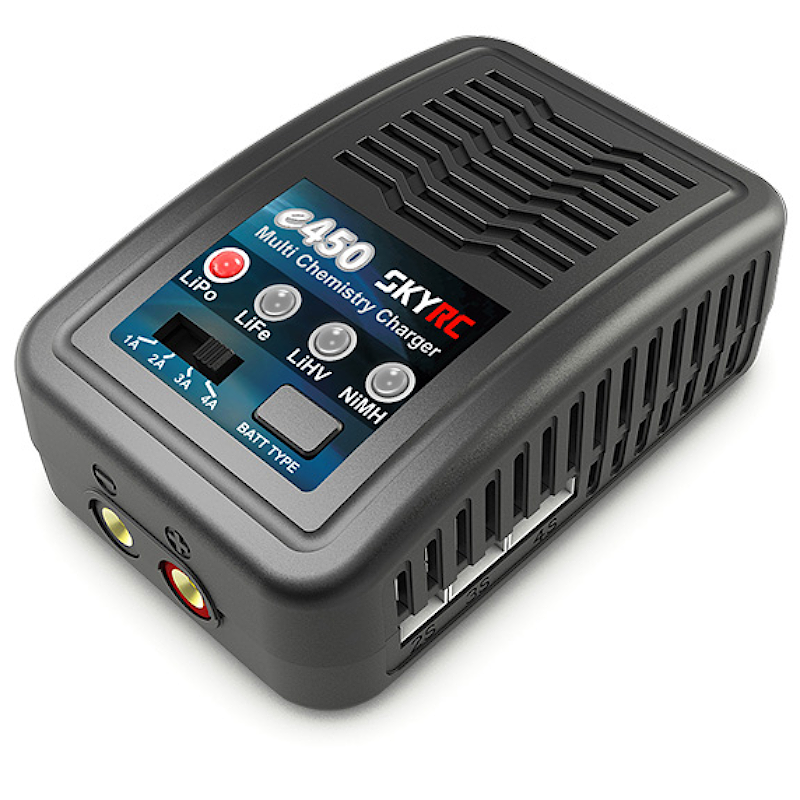

CARREGADOR BATERIAS LIPO SKYRC E450 2S-4S 50W

: BAT02062
26,75 €

Este carregador SKYRC e450 é um carregador econômico e de alta qualidade de 100-240 V, projetado para
carregar baterias LiPo, LiFe e LiHV de 2 a 4 células no modo de equilíbrio. Pode carregar baterias NiMH de 6 a 8S
também. A potência do circuito é de 50W e a corrente máxima de carga pode chegar a 4A.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Multi Chemistry Charger

SkyRC e450 Charger is an economical, high-quality 100-240V AC balance charger, designed for charging LiPo, LiFe and LiHV batteries from 2-4 cells in balance mode. It also can charge 6-8S NiMH batteries. The circuit power is 50W and max charge current can reach to 4A. There are four kinds of charge current 1A/2A/3A/4A that can be selected. You could select the proper charge. current according to battery capacity.






Explanation of LED Status

LED green and red blinking The charger is ready to charge
LED glows constant red Battery capacity is less than 25% charged.
LED blinking red Battery capacity is between 25% to 50% charged.
LED blinking yellow Battery capacity is between 50% to 75% charged.
LED blinking green Battery capacity is between 75% to 99%charged.
LED glows constant green Battery is fully charged.



What’s in the Box




Specifications

  1. AC Input: 100-240V

  2. Battery Type: LiPo/LiFe/liHV/NiMH

  3. Cell Count:

    1. LiPo/LiFe/liHV:2-4S

    2. NiMH:6-8S

  4. Charge Current: 1A/2A/3A/4A ± 10%

  5. Circuit Power: 50W

  6. Current Drain for Balancing: 300mA

  7. Weight: 220g




Size

Length： 110.7mm
Width： 69.4mm
Height： 40.5mm


BAT02062
