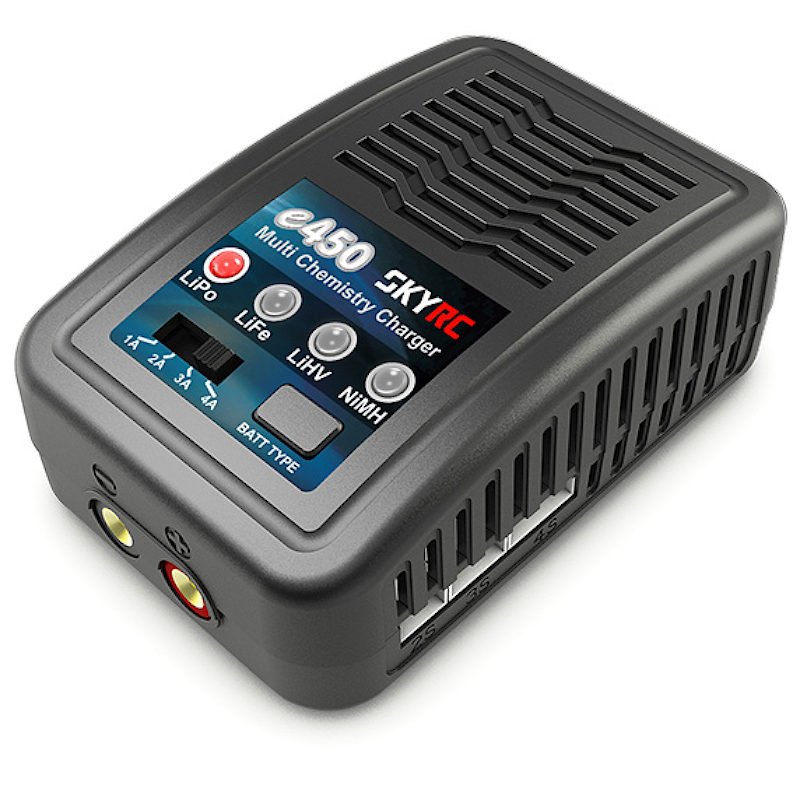

LIPO BATTERY CHARGER SKYRC E450 2S-4S 50W

: BAT02062
€26.75

SKYRC e450 Charger is an economical, high quality 100-240V AC balance charger, designed for
charging LiPo, LiFe and LiHV batteries from 2-4 cells in balance mode. It can charge 6-8S NiMH batteries
also. The circuit power is 50W and max charge current can reach to 4A.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Multi Chemistry Charger

SkyRC e450 Charger is an economical, high-quality 100-240V AC balance charger, designed for charging LiPo, LiFe and LiHV batteries from 2-4 cells in balance mode. It also can charge 6-8S NiMH batteries. The circuit power is 50W and max charge current can reach to 4A. There are four kinds of charge current 1A/2A/3A/4A that can be selected. You could select the proper charge. current according to battery capacity.

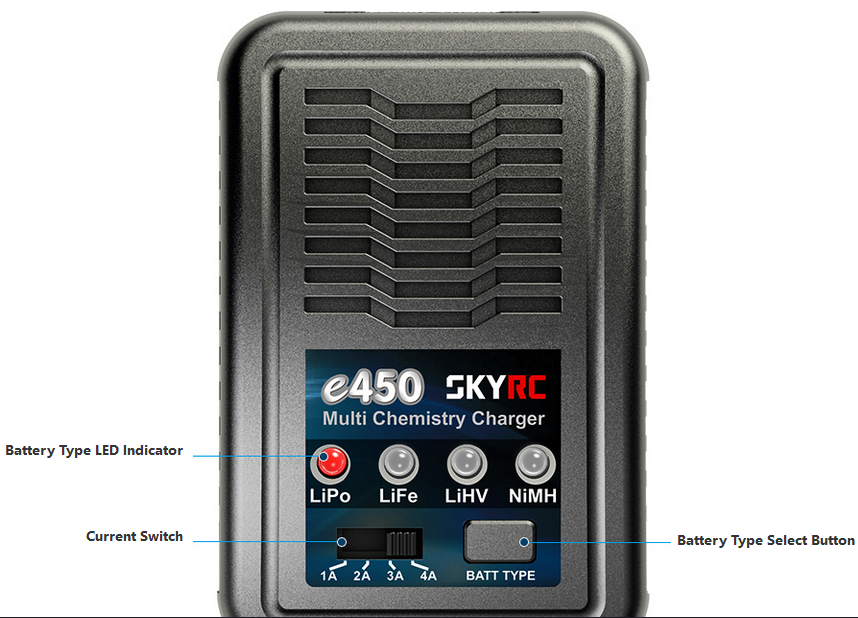

Explanation of LED Status

LED green and red blinking The charger is ready to charge
LED glows constant red Battery capacity is less than 25% charged.
LED blinking red Battery capacity is between 25% to 50% charged.
LED blinking yellow Battery capacity is between 50% to 75% charged.
LED blinking green Battery capacity is between 75% to 99%charged.
LED glows constant green Battery is fully charged.



What’s in the Box




Specifications

  1. AC Input: 100-240V

  2. Battery Type: LiPo/LiFe/liHV/NiMH

  3. Cell Count:

    1. LiPo/LiFe/liHV:2-4S

    2. NiMH:6-8S

  4. Charge Current: 1A/2A/3A/4A ± 10%

  5. Circuit Power: 50W

  6. Current Drain for Balancing: 300mA

  7. Weight: 220g




Size

Length： 110.7mm
Width： 69.4mm
Height： 40.5mm
