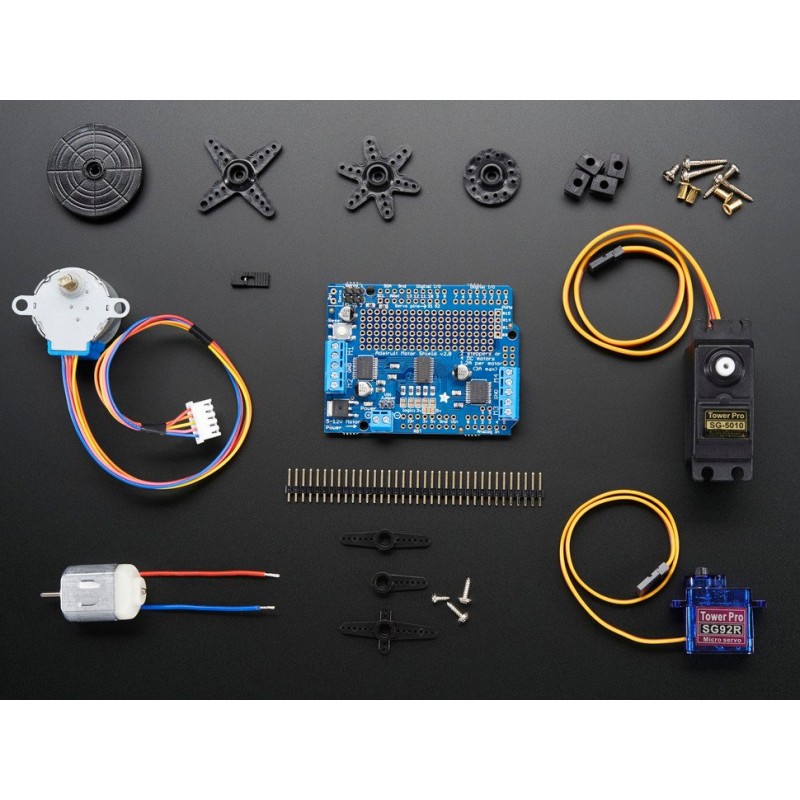

Pack Motor Party shield para Arduino com 4 motores incluídos

: ARD03195
45,93 €

Faça a sua própria festa de motores Arduino com um shield de motor com uma boa variedade de motores! Atenção! Foi actualizado o shield para anova versão 2, com drivers mais potentes, e usa menos pinos para inicializar!

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Included in this add-on pack is:

An Arduino is not included, and you'll need one to use the shield. The shield does take a little assembly but its fairly easy. Makes a fantastic addition to a Arduino Starter Pack.

If you'd like to stack shields on top of the Adafruit Motor Shield, grab a set of stacking headers to solder on!

Check out these specs:

  • 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter!
  • 4 H-Bridges: TB6612 chipset provides 1.2A per bridge  (3A for brief 20ms peaks) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 13.5VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
  • Motors automatically disabled on power-up
  • Big terminal block connectors to easily hook up wires (18-26AWG) and power
  • Arduino reset button brought up top
  • Polarity protected 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
  • Tested compatible with Arduino UNO, Leonardo, ADK/Mega R3, Diecimila & Duemilanove. Works with Due with 3.3v logic jumper. Works with Mega/ADK R2 and earlier with 2 wire jumpers.
  • Download the easy-to-use Arduino software library, check out the examples and you're ready to go!
  • 5v or 3.3v compatible logic levels - jumper configurable.

Need to learn more about the shield and how to use it, check out this link: Adafruit Motor Shield V2
