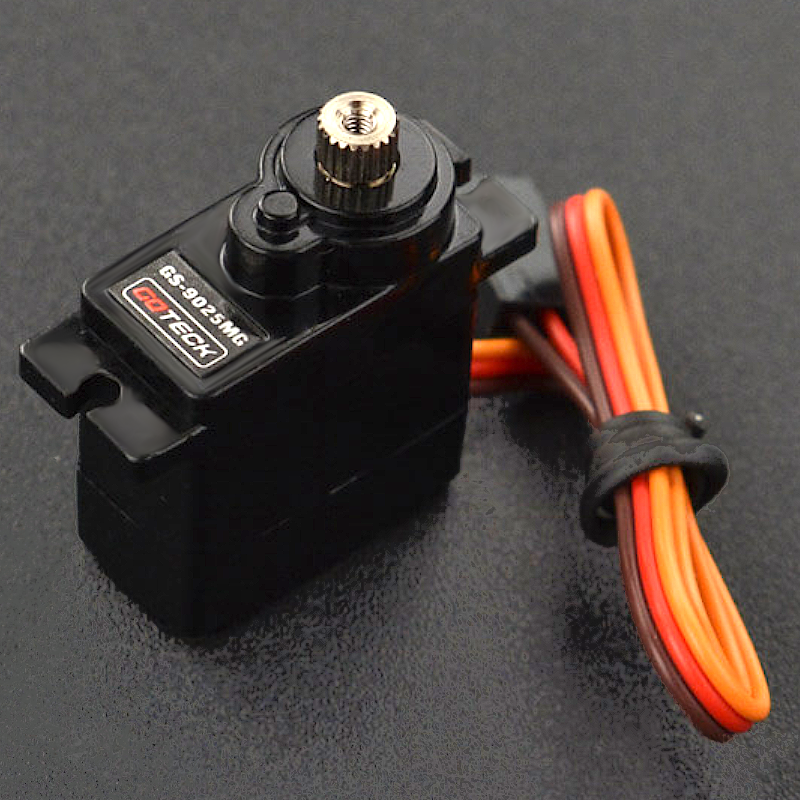

Goteck 9025MG micro metal gear servo (2.5kg)

:MOT03015
11,50 €
preço com IVA incluído

Servo muito pequeno, muito leve (14.7g) e poderoso (2.5Kg)



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a metal gear servo(2.5kg) from Goteck.It's very small, lightweight, and powerful! Metal gear for longer wear life and extra strength in demanding applications. Perfect for use in medium-sized electric airplanes,helicopters or mini Robots.



Specification

  1. Operating voltage : 4.8~6V

  2. Stall torque: 2.3kg-cm(4.8v)  2.5kg-cm(6.0v)

  3. Operating speed: 0.10sec/60(6V),0.11sec/60(4.8V)

  4. Bearing:Top ball bearing

  5. Metal Gear

  6. Size:23x12.1x28.8mm (0.9x0.5x1.1in)

  7. Weight:14.7g

  8. Cable Length:180mm (7 inch)(JR)

  9. Operation Travel: 60°± 10°

  10. Limit angle: 90°± 10°



Documents



Shipping List

  1. 9025MG Metal Gear Servo   x1

MOT03015
