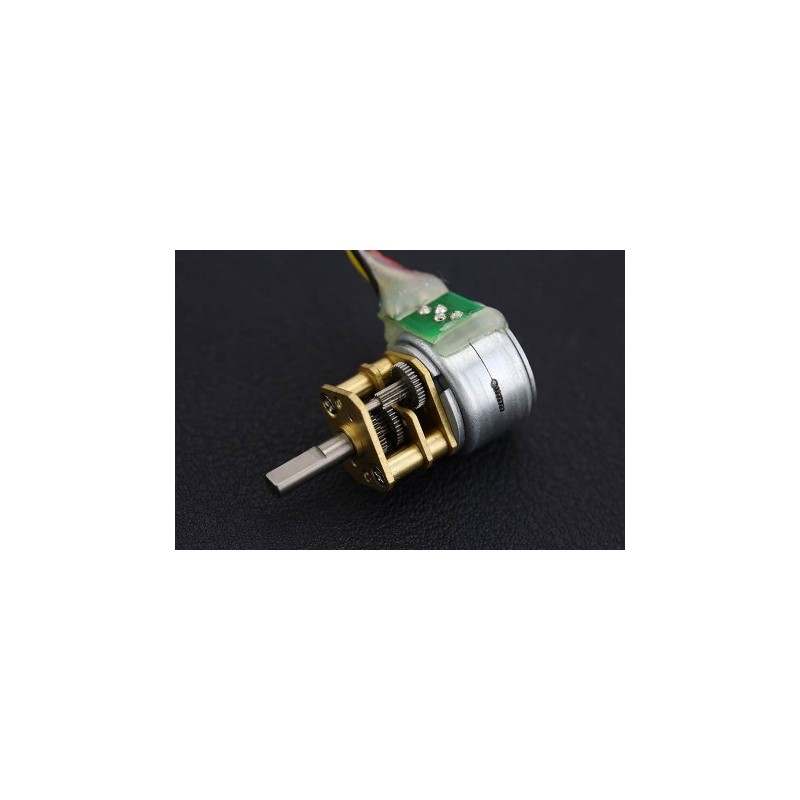

MicroMotor de Passo com caixa redutora (12V 0.6kg.cm)

:MOT04012
7,90 €
preço com IVA incluído

Motor de passo bastante pequeno com uma caixa redutora de 100:1 para um maior binário à saída. Ideal para aplicar em projectos relacionados com impressão 3D ou CNC que exige um controlo de rotação preciso.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for the 3D printers and applications which require precise rotation control.

Note: Please limit the motor current, or overlarge current will burn the motor.

SPECIFICATION

  • Stepper Motor:
  • Coil resistance: 30Ω±10%
  • NO. Of Phases: 2 PHASES
  • Step Angle: 18° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 6gf-cm min
  • Lead Out Torque: 10gf-cm max
  • Stepper Motor with Gear Box:
  • Step Angle: 18/100° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 0.5Kgf-cm min
  • Lead Out Torque: 0.8Kgf-cm max
  • Cable Length: 15cm
  • Weight: 14g



DOCUMENTS

MOT04012
