Motor de Passo Bipolar c/ caixa Redutora (18Kg.cm)
  • Motor de Passo Bipolar c/ caixa Redutora (18Kg.cm)
  • Motor de Passo Bipolar c/ caixa Redutora (18Kg.cm)
  • Motor de Passo Bipolar c/ caixa Redutora (18Kg.cm)

Motor de Passo Bipolar c/ caixa Redutora (18Kg.cm)

: MOT04011
35,69 €
32,44 € Poupe 3,25 €
Quantidade

INTRODUCTION

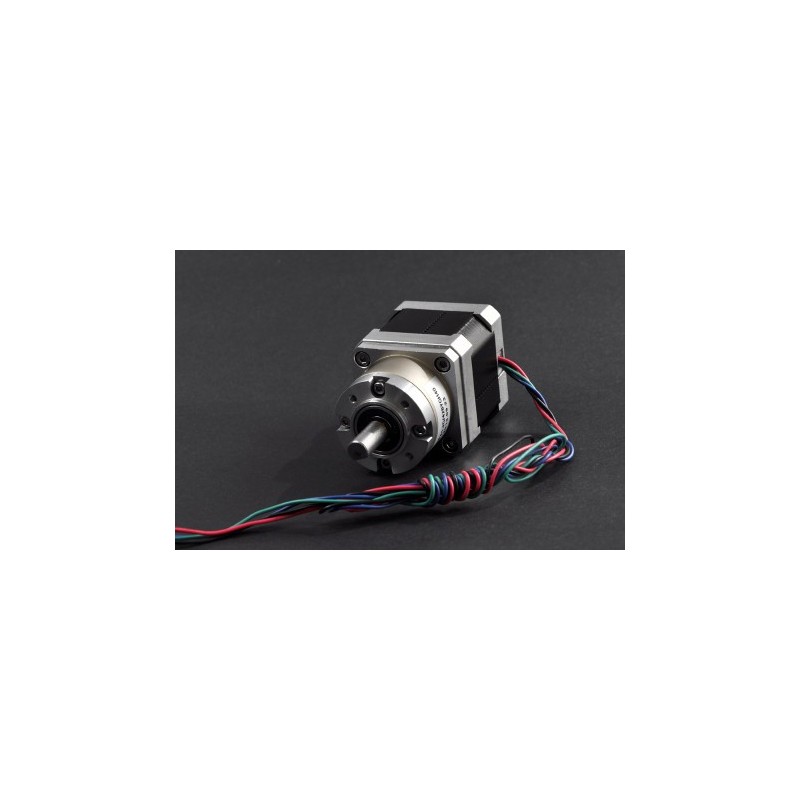

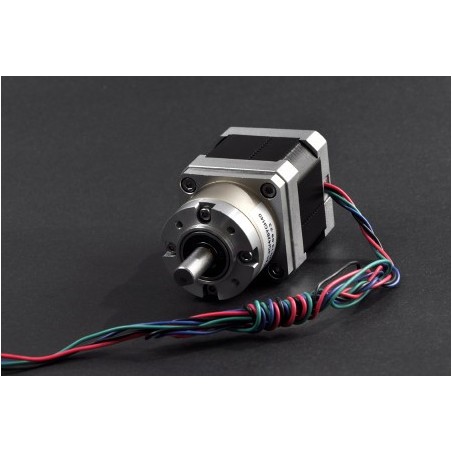

This bipolar stepper motor with planet gear box (gear ratio: 5.18) uses a standard 8mm-diameter D type output shaft, and has a 1.8° step angle (200 steps/revolution). Each phase draws 1.6 A at 2.78 V, allowing for a holding torque of 18kg-cm (176N-cm) (200rpm). The motor has a body dimension of 42mm square and 40mm in length, while the planet gear box is 36mm in diameter and 27mm in length. The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be easily mounted with 4 M3 threaded holes and can be controlled with the Dual Bipolar Stepper Motor Shield for Arduino (A4988).



Notice: please carefully confirm techical details (torque, dimension, mounting, etc) for your project(s) before purchasing.

APPLICATIONS

  • Printer
  • 3D Printer
  • CNC
  • Robotics
  • Linear Actuators

SPECIFICATION

  • Model No:36PA5.2G-42BYG40-160-4A
  • Step Angle (degrees) :1.8
  • 2 Phase
  • Rated Current : 1.6A@2.78V ,0.37A@12V
  • Holding Torque : 3.5kg*cm (48.6 oz/in)
  • Hold Torque with Gearbox: 18kg·cm (176N·cm) (200rpm)
  • Gear Ratio: 5.18:1
  • Winding resistance: 1.5 Ω
  • Winding inductance: 2.5 mH
  • Max flux linkage: 1.8 Vs
  • Step Angle Accuracy : ±5% (full step, no load)
  • Resistance Accuracy:  ±10%
  • Inductance Accuracy:  ±20%
  • Temperature Rise:  80°C   Max.(rated current,2 phase on)
  • Ambient Temperature:  -20°C~+50°C
  • Insulation Class: B
  • Dimension: 42×42×40mm(1.65x1.65x1.57")
  • Mounting: 4 x M3
  • Mounting Hole Diameter:Φ28

DOCUMENTS

SHIPPING LIST

  • Stepper Motor with Planet Gear Box ×1
MOT04011
