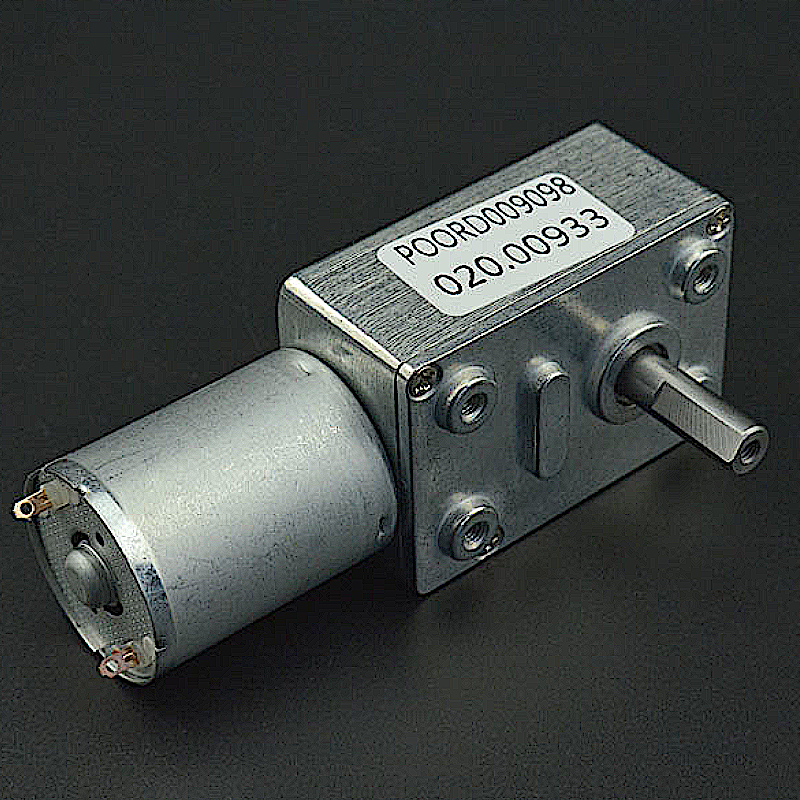

MOTOR DC COM CAIXA REDUTORA A 90º 12V 40RPM 8KG.CM

:MOT02106
22,50 €
preço com IVA incluído

Motor com caixa redutora e com estrutura mecanica sem fim que permite bloquio automático sem conseguir movimentar o veio de saída, funcionando assim como um travão.

Binário máximo: 8Kgf.cm
Tensão nominal: 12Vdc
Corrente em vazio: 35mA
Corrente nominal: 180mA
Corrente em bloqueio: 1A
Rotação sem carga: 40rpm

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.

(From wikipedia)

This part uses a two wire connection and supports direction control as well as PWM speed control. Rated voltage is 12v and will achieve 40RPM, with a torque of 8kg/cm.



Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.



Specification

  1. Operating Voltage: 6 - 15 V

  2. Rated Voltage: 12V

  3. No-load Speed: 40 RPM

  4. No-load Current: 35 mA

  5. Rated Torque: 32 RPM

  6. Rated Current: 180 mA

  7. Rated Torque: 2.2 kg.cm

  8. Rated Power: 1.1 W

  9. Stall Torque: 8 kg/cm

  10. Stall Current: 1 A

  11. Reduction Ratio: 1:150

  12. Weight: 167 g



Shipping List

  1. Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1

MOT02106
