Micro motor DC 140rpm (par)

:MOT02055
4,50 €
preço com IVA incluído

Par de Micro motores DC de 4.5VDC, com uma corrente de consumo sem carga de 190mA, acoplado com uma caixa redutora de 48:1 e uma velocidade à saída sem carga de 140 RPM.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

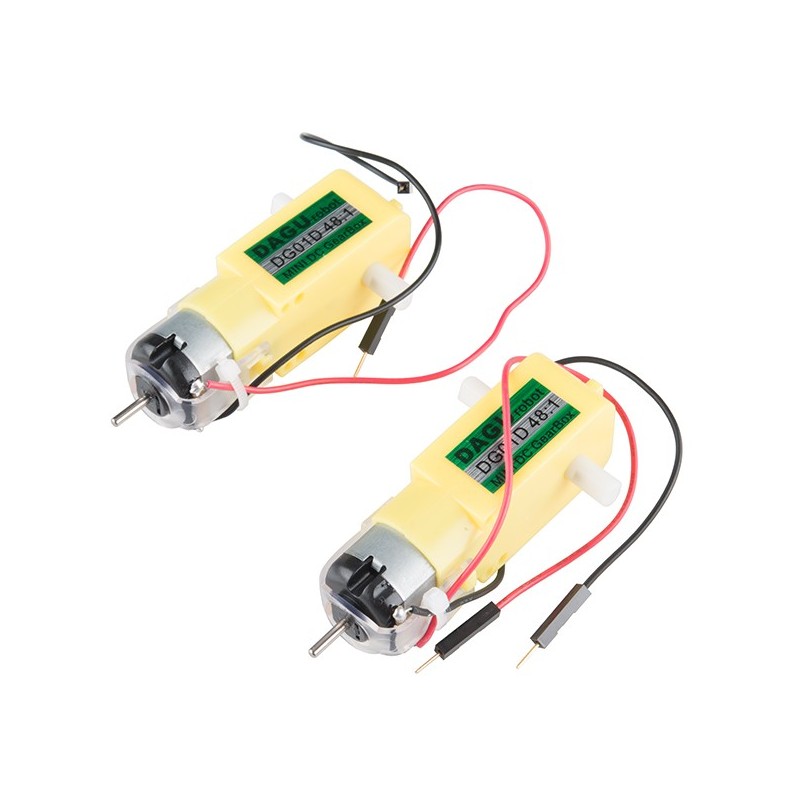

These are a pair of hobby gearmotors from DAGU. These gearmotors are the same ones recommended for use in the Shadow Chassis and offer a cheap and easy-to-use setup to get your wheels turning. Each Hobby Gearmotor also possess a 9mm long output on a straight axis.

These gearmotors require a voltage of 4.5V with a no load current of 190mA while possessing a gearbox ratio of 48:1 and a wheel speed of 140 RPM unloaded.

Every motor order is sold in packs of two.

Note: The RPM listed in the datasheet below is listed as 90RPM. Based on our own testing we found the gearmotors can actually achieve a No Load Speed of about 140 RPM.

Features:

  • Suggested Voltage: 4.5VDC
  • No Load Speed: 140RPM
  • No Load Current: 190mA
  • Max. Load Current: 250mA
  • Torque: 800 gf-cm

Documents:

MOT02055
