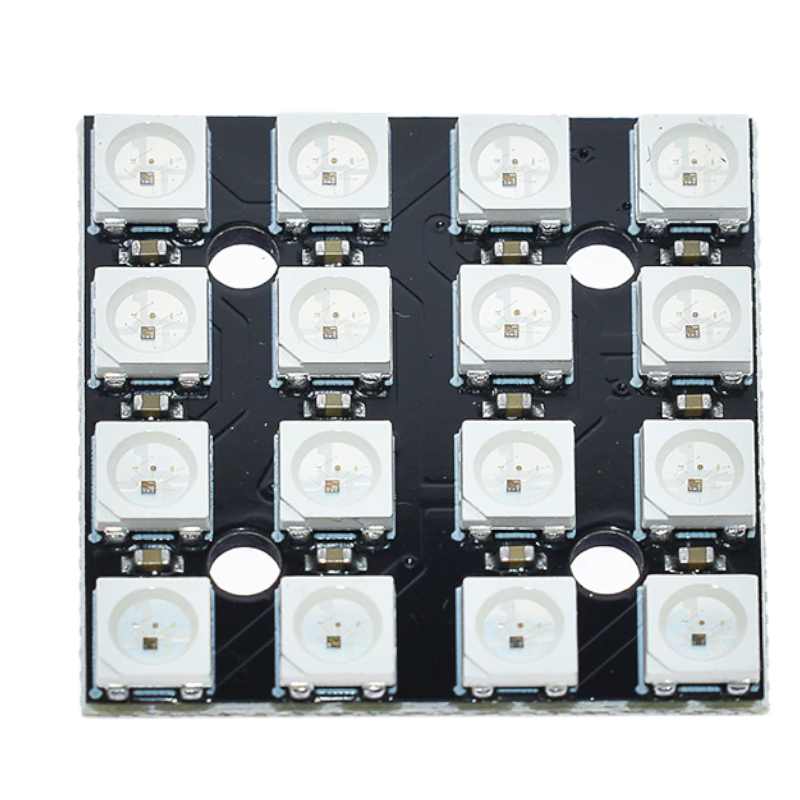

Módulo LED RGB WS2812 5050 Neopixel - MATRIZ DE 16 LEDS 4X4

: LCD03022
5,28 €

Ilumina os teus projetos com esta matriz de 16 LEDs RGB (4x4). Podes controlar cada um destes LEDs individualmente, ajustando a cor e intensidade do mesmo.

Consulta o Guia de Seleção para conheceres toda a gama de Matrizes e LED's WS2812.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Use this 16 Pixel RGB LED Square to add squares of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED square, stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole square. Each of the 16 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.

Specifications:

  1. RGB LED Square

  2. Chipset: WS2812 (Neopixel compatible)

  3. Number of LEDs: 16

  4. Data Transmission: up to 800Kbps

  5. Refresh Rate: 30 frames / sec

  6. Scanning Frequency: greater than 400Hz/s

  7. Full color: 16777216 colors, 256

  8. Dimensions:  30mm -x 30mm x 3.19mm

  9. Can be soldered to conductive thread or wire

  10. Pinout: 5V / GND / DIN: Data Input / DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)

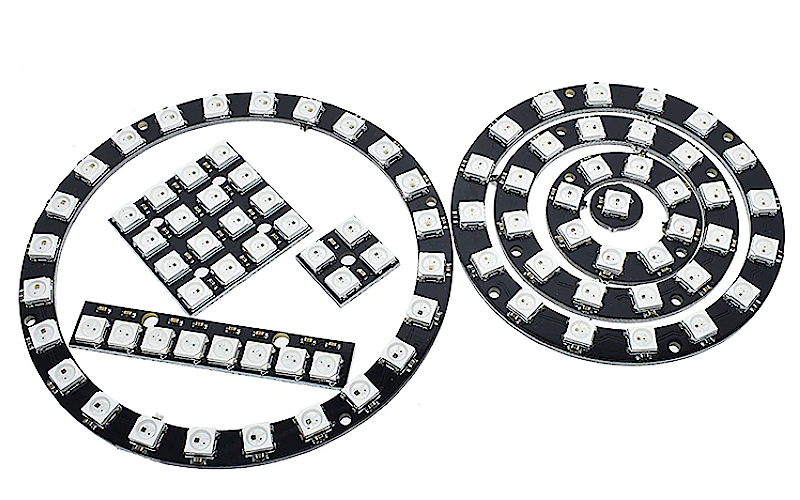

Selection Guide (all models):


CEL03108 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 1x LED

CEL03109 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 8 LEDS

CEL03110 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS

CEL03111 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 16 LEDS

CEL03112 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 24 LEDS

CEL03113 - NEOPIXEL RGB LED MODULE WS2812B 5050 - STICK 8 LEDS

LCD03021 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 2X2 MATRIX 4 LEDS

LCD03022 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 4X4 MATRIX 16 LEDS




LCD03022
