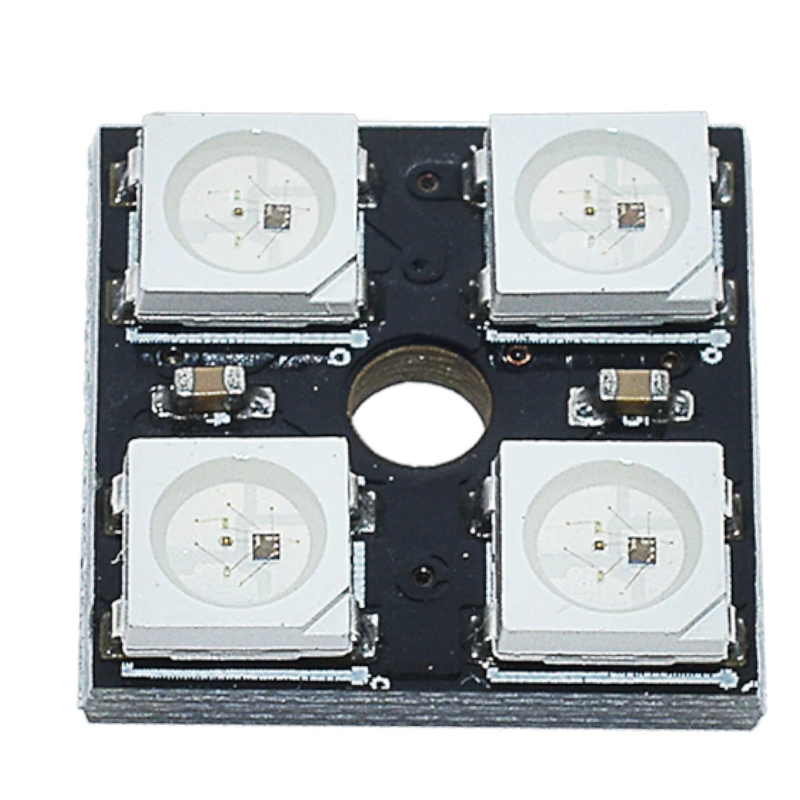

Módulo LED RGB WS2812 5050 Neopixel - MATRIZ DE 4 LEDS 2X2

: LCD03021
2,85 €

Usa esta pequena matriz de 4 LED's RGB para iliuminares os teus projetos.

Consulta o Guia de Seleção para conheceres toda a gama de Matrizes e LED's WS2812.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Use this 4 Pixel RGB LED Square to add squares of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED square, stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole square. Each of the 4 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.



Specifications:

  1. RGB LED Square

  2. Chipset: WS2812 (Neopixel compatible)

  3. Number of LEDs: 8

  4. Dimensions:  15mm x 15mm x 3.19mm

  5. Can be soldered to conductive thread or wire

  6. Max Current Draw: 0.24A

  7. Pinout: 5V / GND / DIN: Data Input / DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)

Selection Guide (all models):

CEL03108 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 1x LED

CEL03109 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 8 LEDS

CEL03110 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS

CEL03111 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 16 LEDS

CEL03112 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 24 LEDS

CEL03113 - NEOPIXEL RGB LED MODULE WS2812B 5050 - STICK 8 LEDS

LCD03021 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 2X2 MATRIX 4 LEDS

LCD03022 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 4X4 MATRIX 16 LEDS
