• Novo

Leitor Código de barras de alta precisão 1D/2D e QR CODE 5V/3.3V C/ USB E UART TTL - Waveshare 24468

:SEN04068
44,90 €
preço com IVA incluído

Este é um leitor de código de barras 1D e 2D capaz de ler também QR codes de forma rápida e precisa. Pode comunicar através de USB. TTL ou porta série UART. O aliado perfeito para introduzir identificação através de código de barras ou QR code aos seus projetos.

Se quiseres saber mais sobre este produto, consulta a sua WikiPage.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

2D Codes Scanner Module

1D/2D Codes Recognition | High Accuracy | Screen scanning

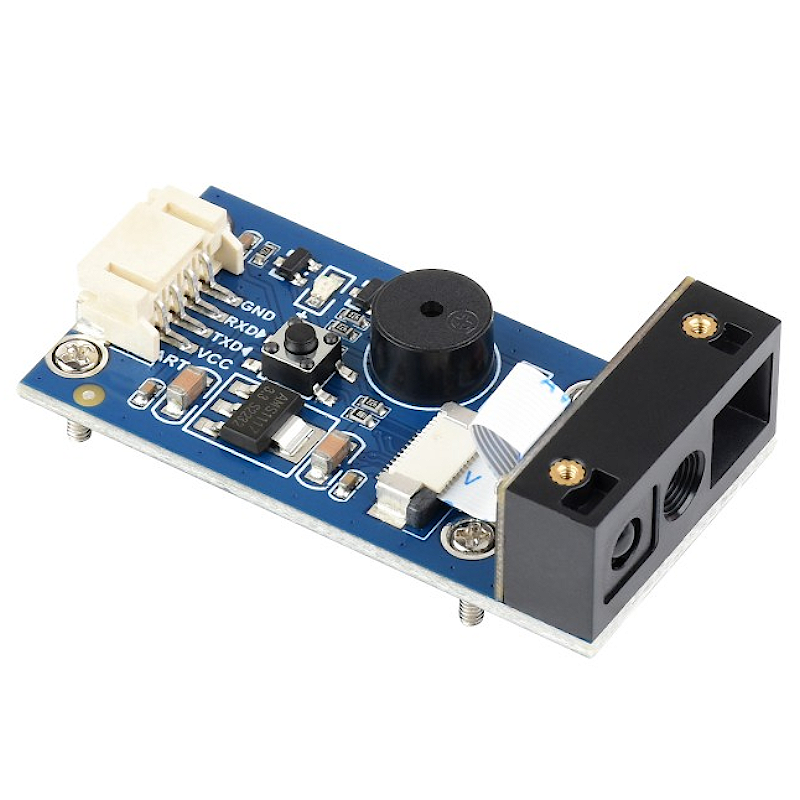

The Barcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.



Comparison

Model Barcode-Scanner-Module-C-details-2-2.jpg
Barcode Scanner Module (C)		 Barcode-Scanner-Module-C-details-2-1.jpg
Barcode Scanner Module
Resolution 640 × 480 648 × 488
Scan angels pitch ±60°, skew ±60°, roll 360° pitch ±60°, skew ±65°, roll 360°
Scan mode Sensing, Continuous, Manual (default)
Accuracy 1D Codes 3mil
2D Codes 5mil		 -
Communication Interface USB keyboard mode (default), USB virtual port, UART port
Light source White (Lighting) + Green (Aiming), both are visible light White (Lighting) + Red (Aiming), both are visible light
Power Supply 5V / 3.3V 5V
Current Operating 250mA 135mA
Standby 20mA 58mA
Boot 258mA -
Temperature Operating -20 ~ +60°C
Storage -40 ~ +70°C -30 ~ +70°C




Decoding Capability

Code type BARCODE Barcode Scanner Module (C) Barcode Scanner Module
READABLE DEFAULT READABLE READABLE DEFAULT READABLE
2D QR Code √ √ √ √
Micro QR √
DataMatrix √ √
PDF417 √ √ √
Micro PDF417 √
Aztec √
1D EAN-13 √ √ √
EAN-8 √ √ √
UPC-A √ √ √
UPC-E √ √ √
ISSN √
ISBN √
Codabar √ √
Code 128 √ √   √
Code 93 √ √
Code 39 √ √ √
Code 11 √   √
ITF-14 √
ITF-6 √
Interleaved 2 of 5 √   √
Industrial 2 of 5 √
Matrix 2 of 5 √   √
CS Databar(RSS) √   √
MSI-Plessey √   √

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it




Onboard resource




Product Show




Outline Dimensions


Resources & Services


  1. Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(C)

  2. Barcode Scanner Quick Start

  3. User Manual/Setting Manual



Package Content

Weight: 0.059 kg

  1. Barcode Scanner Module (C) x1

  2. USB type A plug to micro B plug cable x1

  3. PH2.0 4Pin cable x1

1Barcode-Scanner-Module-C-1_220.jpg2Barcode-Scanner-Module-C-11_93.jpg3Barcode-Scanner-Module-C-12_93.jpg
