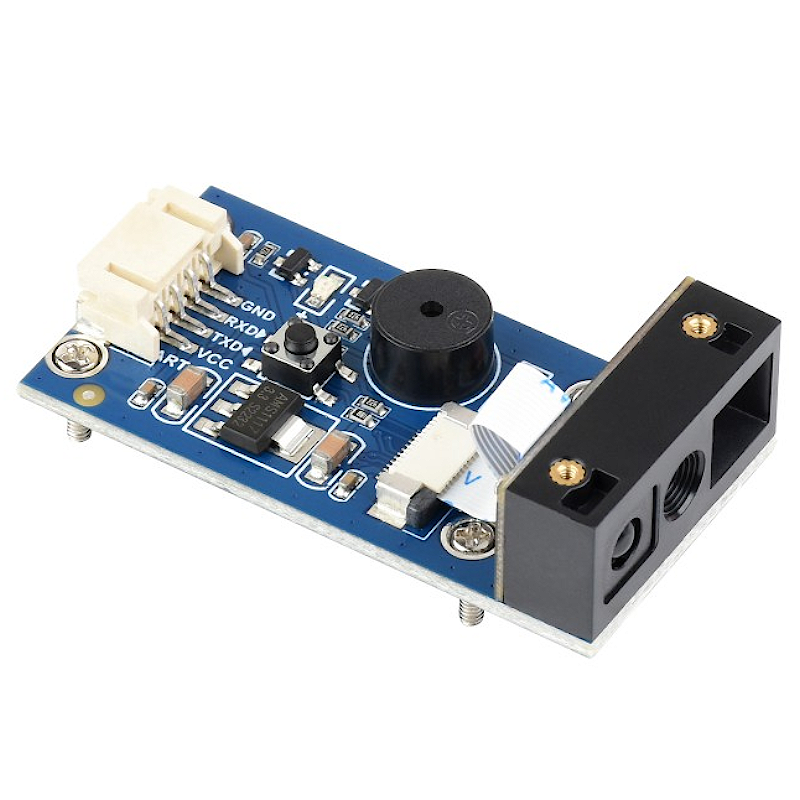

2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader - Waveshare 24468

:SEN04068
€44.90
Tax included

This is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

2D Codes Scanner Module

1D/2D Codes Recognition | High Accuracy | Screen scanning


The Barcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.



Comparison

Model Barcode-Scanner-Module-C-details-2-2.jpg
Barcode Scanner Module (C)		 Barcode-Scanner-Module-C-details-2-1.jpg
Barcode Scanner Module
Resolution 640 × 480 648 × 488
Scan angels pitch ±60°, skew ±60°, roll 360° pitch ±60°, skew ±65°, roll 360°
Scan mode Sensing, Continuous, Manual (default)
Accuracy 1D Codes 3mil
2D Codes 5mil		 -
Communication Interface USB keyboard mode (default), USB virtual port, UART port
Light source White (Lighting) + Green (Aiming), both are visible light White (Lighting) + Red (Aiming), both are visible light
Power Supply 5V / 3.3V 5V
Current Operating 250mA 135mA
Standby 20mA 58mA
Boot 258mA -
Temperature Operating -20 ~ +60°C
Storage -40 ~ +70°C -30 ~ +70°C




Decoding Capability

Code type BARCODE Barcode Scanner Module (C) Barcode Scanner Module
READABLE DEFAULT READABLE READABLE DEFAULT READABLE
2D QR Code √ √ √ √
Micro QR √
DataMatrix √ √
PDF417 √ √ √
Micro PDF417 √
Aztec √
1D EAN-13 √ √ √
EAN-8 √ √ √
UPC-A √ √ √
UPC-E √ √ √
ISSN √
ISBN √
Codabar √ √
Code 128 √ √   √
Code 93 √ √
Code 39 √ √ √
Code 11 √   √
ITF-14 √
ITF-6 √
Interleaved 2 of 5 √   √
Industrial 2 of 5 √
Matrix 2 of 5 √   √
CS Databar(RSS) √   √
MSI-Plessey √   √

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it




Onboard resource




Product Show




Outline Dimensions


Resources & Services


  1. Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(C)

  2. Barcode Scanner Quick Start

  3. User Manual/Setting Manual



Package Content

Weight: 0.059 kg

  1. Barcode Scanner Module (C) x1

  2. USB type A plug to micro B plug cable x1

  3. PH2.0 4Pin cable x1

1Barcode-Scanner-Module-C-1_220.jpg2Barcode-Scanner-Module-C-11_93.jpg3Barcode-Scanner-Module-C-12_93.jpg
