Sensor Barreira Fotoelétrica 5mm 10~30V

:SEN03056
8,70 €
preço com IVA incluído

Este interruptor fotoelétrico do tipo slot de 4 fios integra um módulo transceptor óptico, proporcionando desempenho estável e forte capacidade anti-interferência. Ligue-o a 10-30V. A faixa de detecção do módulo é a largura do slot, que é de 5 mm. Há um indicador integrado para indicar o estado do dispositivo em tempo real.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The 4-wire interfaces of the module can be freely switched between normally open and closed status. Also, it comes with protection mechanisms like short-circuit protection, overload protection, and reverse connection. This product is well suitable for distinguishing transparent objects, detecting high-speeding moving things, or counting materials, etc.

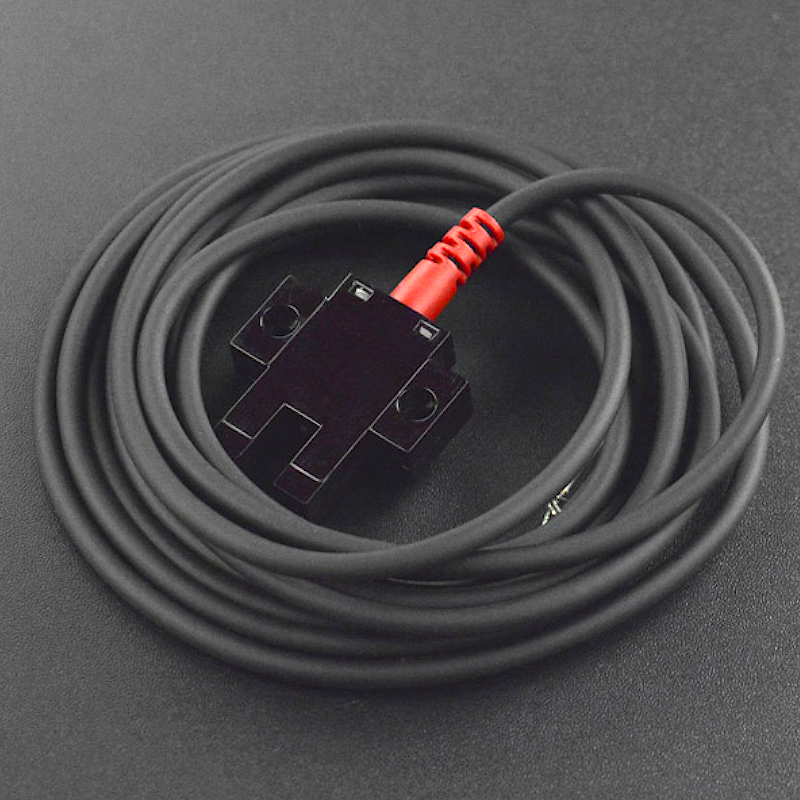

4-Wire Slot Type Photoelectric Switch

Specification



  • Power Supply: DC10-30V
  • Detection Distance: 5MM (Slot width)
  • Output Mode: PNP (4-wire connector)
  • Connection Mode:Brown line-positive pole,Blue line-negative pole, Black line- normally closed output,White line-normally open output
  • Switch Frequency: 500hz
  • Response Time: <1.5ms
  • Protection Mechanism: short circuit protection, overload protection, reverse connection protection
  • Protection Level: IP50
  • Size: 26.2*25*7mm/1.03*0.98*0.28”



Shipping List

  • 4-Wire Slot Type Photoelectric Switch x1
SEN03056
