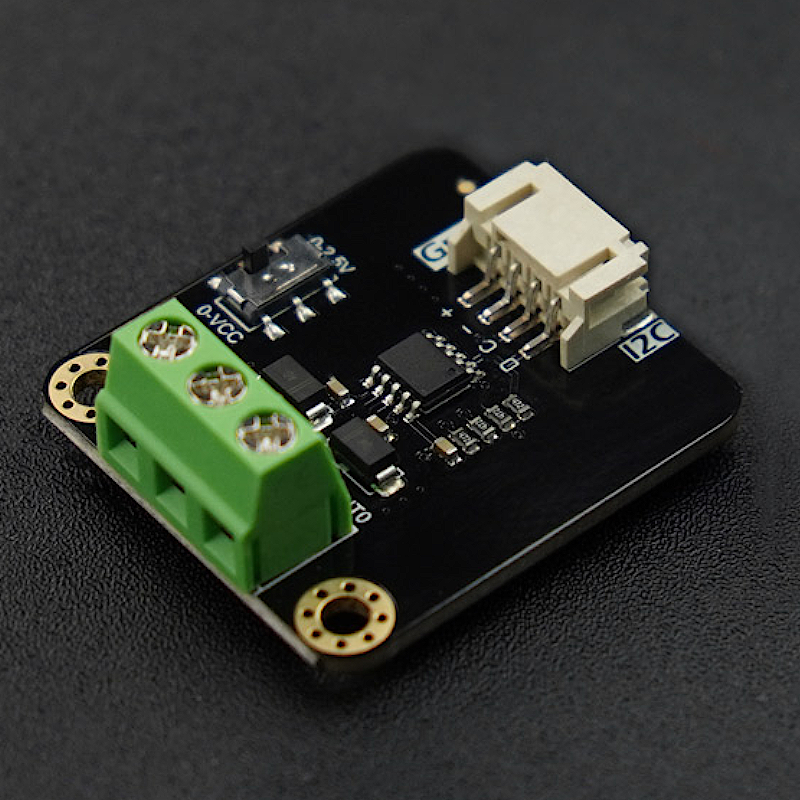

Módulo DAC GP8503 12bit 2 canais: I2C para 0-2.5V ou 0-VCC (VCC 3.3V~5V) - DFRobot DFR1034

:COM07021
12,30 €
preço com IVA incluído

Este é um módulo DAC de saída de tensão analógica de 2 canais com comunicação I2C, resolução de 12 bits e precisão de 0,1%. É adequado para projectos de controlo que operam na gama de 3,3 V, como o ESP32, Raspberry Pi, STM32 e outros microcontroladores que requerem saída de sinal analógico.

Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a 2-channel analog voltage output DAC module with I2C communication, 12-bit resolution, and 0.1% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.

Functional Diagram of Gravity: GP8503 2-Channel 12bit I2C to 0-2.5V/VCC DAC Module

Functional Diagram of Gravity: GP8503 2-Channel 12bit I2C to 0-2.5V/VCC DAC Module





Wiring Diagram of Gravity: GP8503 2-Channel 12bit I2C to 0-2.5V/VCC DAC Module

Wiring Diagram of Gravity: GP8503 2-Channel 12bit I2C to 0-2.5V/VCC DAC Module and Arduino UNO



We provide various models of DAC modules. If you need a different model, please check the selection guide:

Click here to get Selection Guide of DAC Modules



Features

  1. Support 3.3V-5V power supply.

  2. Output voltage error is less than 0.1%.

  3. Output voltage linearity error is 0.1%.

  4. Two channels of voltage output, either 0-2.5V or 0-VCC, enabling connection and control of standard analog voltage devices.

  5. Gravity interface, I2C communication, Arduino control, suitable for program automation control.



Applications

  1. Motor rotational speed regulation

  2. Sonorous intensity modulation

  3. Indoor and outdoor luminance modulation

  4. Display panel backlight automatic adjustment



Specification

  1. Operating voltage: 3.3V to 5V

  2. Communication Method: I2C

  3. Chip Type: GP8503

  4. Resolution: 12-bit

  5. Output Voltage: 0-2.5V or 0-VCC

  6. Number of channels: 2 channels

  7. Value Range: 0 - 4095 corresponding to 0-2.5V or 0-VCC

  8. Output voltage: 0.1%

  9. Output voltage linearity error: 0.1%



Documents



Shipping List

  1. GP8503:2-Channel 12bit I2C to 0-2.5V/VCC DAC Module ×1

  2. Gravity-4P I2C/UART Sensor Cable × 1

COM07021
