• Novo

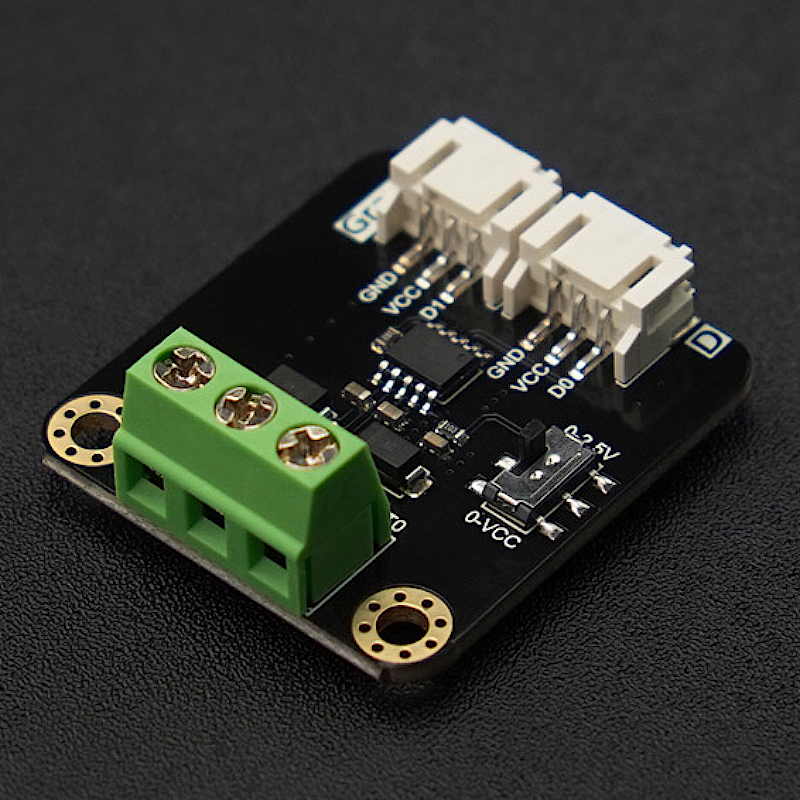

Módulo DAC GP8501 8bit 2 canais: PWM para 0-2.5V ou 0-VCC (VCC 3.3V~5V) - DFRobot DFR1037

:CEL01044
12,50 €
preço com IVA incluído

Este é um módulo DAC de saída de tensão analógica de 2 canais com comunicação PWM, resolução de 8 bits e precisão de 0,5%. É adequado para trabalhar com placas controladoras que trabalham na gama dos 3.3V, tais como Raspberry Pi, STM32.

Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a 2-channel analog voltage output DAC module with PWM communication, 8-bit resolution, and 0.5% precision. It is well-suited for control projects operating within the 3.3V range, such as ESP32, Raspberry Pi, STM32, and other microcontrollers that require analog signal output.

PWM signal drive allows the module to be controlled by MCU digital ports, providing a simple and convenient usage. The design with two channels also enables effective cost reduction for the project.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.

Functional Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module

Functional Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module





Wiring Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module



Wiring Diagram of Gravity: GP8501 2-Channel PWM to 0-2.5V/VCC DAC Module and Arduino UNO

Selection Guide of DAC Modules



Features

  1. Support 3.3-V-5V power supply.

  2. Output voltage error is less than 0.5%.

  3. Output voltage linearity error is 0.1%.

  4. Two channels of voltage output, either 0-2.5V or 0-VCC, enabling connection and control of standard analog voltage devices.

  5. Gravity interface, PWM communication, Arduino control, suitable for program automation control.

  6. PWM signals can be utilized to drive the module, enabling it to be controlled simply by the digital port of the MCU.



Applications

  1. Motor speed control

  2. Sound volume control

  3. Indoor and outdoor lighting brightness adjustment

  4. Display screen backlight automatic adjustment



Specification

  1. Operating voltage: 3.3V to 5V

  2. Communication Method: PWM

  3. Chip Type: GP8501

  4. Resolution: 8-bit

  5. Output Voltage: 0-2.5V or 0-VCC

  6. Number of channels: 2 channels

  7. Value Range: 0 - 255 corresponding to 0-2.5V or 0-VCC

  8. Output voltage: 0.5%

  9. Output voltage linearity error: 0.1%



Documents



Shipping List

  1. GP8501: 2-Channel PWM to 0-2.5V/VCC DAC Module ×1

  2. Gravity-3Pin Analog Sensor Cable ×1

CEL01044
