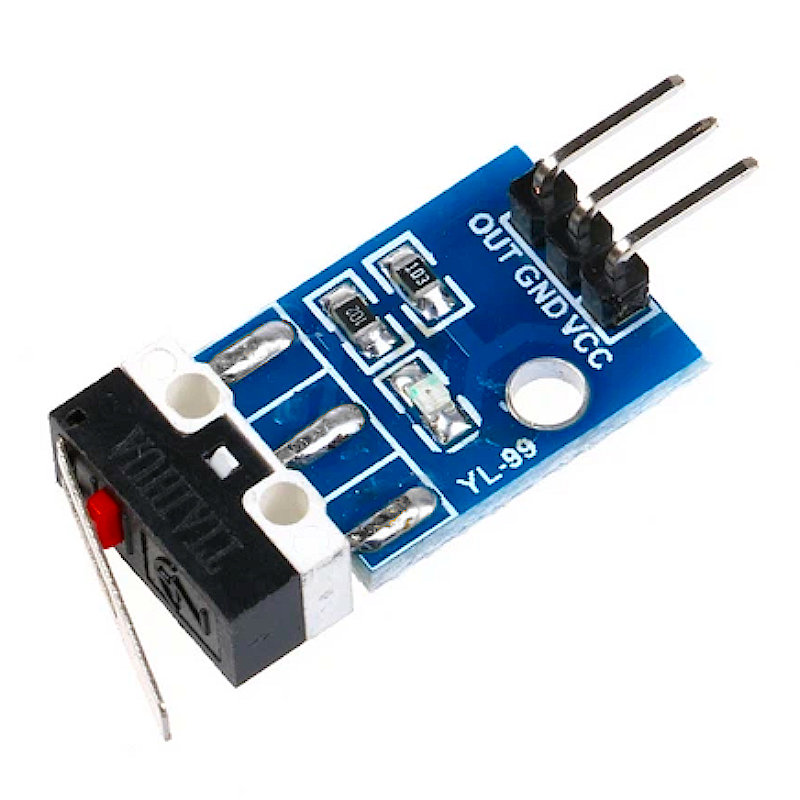

Modulo Sensor de Obstáculos por Microswitch

:SEN15031
2,20 €
preço com IVA incluído

O sensor de colisão, também conhecido como interruptor eletrónico, é um módulo de entrada on-off digital necessário para a aprendizagem eletrónica elementar.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Using the 3P sensor cable to connect to the sensor shield, it can be installed on the 4WD mobile robot platform to realize the collision detection function. It is convenient and efficient. The module reserves the M3 mounting hole, convenient for fixing on a platform.

1.The module installation forefront of collision, the module output low, there is no collision, the output high.
2.Module reserved M3 mounting holes for easy fixing in a small car.
3.Module size: 2.5cm * 1.9cm.
4.with a light switch, there is a collision, lights, no collision lights out.

Module Pin Description
1.VCC:  3v-12v power supply
2.GND:  then the power ground
3.OUT:  high and low output
SEN15031
