Lua NodeMCU V3 WIFI module ESP8266 32MB CH340G

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview:

Nodemcu V3 Lua WiFi module integrated ESP8266 + additional memory 32M FLASH, USB serial port ch340g

Description:

• WiFi modern ESP8266 + 32MB, the module is based on a wide range of exploration ESP8266 system chip from expressif.
• WiFi modern ESP8266 + 32MB, compatible with nodemcu board. We add an extra memory size of 32MB. This is better for big library projects. You do not have to worry about the size of the memory.
• On board there are USB-TTL serial converter CH340G, mini USB socket. DC 4~9Vdc PowerIn pin VIN. Pitch 2.54mm (0.1 ") 15 x 2-wire pin set (not soldered).
• Combine WiFi access point and feature station + microcontrollers using Lua programming language is simple. WiFi Modern ESP8266 + 32MB, provides: arduino hardware IO.
• Can be used in the arduino IDE event-driven API network application 10 D0~D10, PWM function programming, IIC and SPI communication, in a board WiFi wireless network and ADC (A0, etc. can be used as an access point and / or station, host Server), connect to the Internet, get or upload data, and the developing board can use the mounting board.

Resources:

For Arduino and ESP8266:

• https://github.com/esp8266/Arduino
• https://www.filipeflop.com/blog/programar-nodemcu-com-ide-arduino/

For NodeMCU programming:

• NodeMCU Documentation
• Getting Started with NodeMCU Quick Start
• Como programar o módulo ESP8266 NodeMCU
• Web Server with ESP8266 NodeMCU and DHT22

For Python programming:

• https://docs.zerynth.com/latest/official/board.zerynth.nodemcu3/docs/index.html

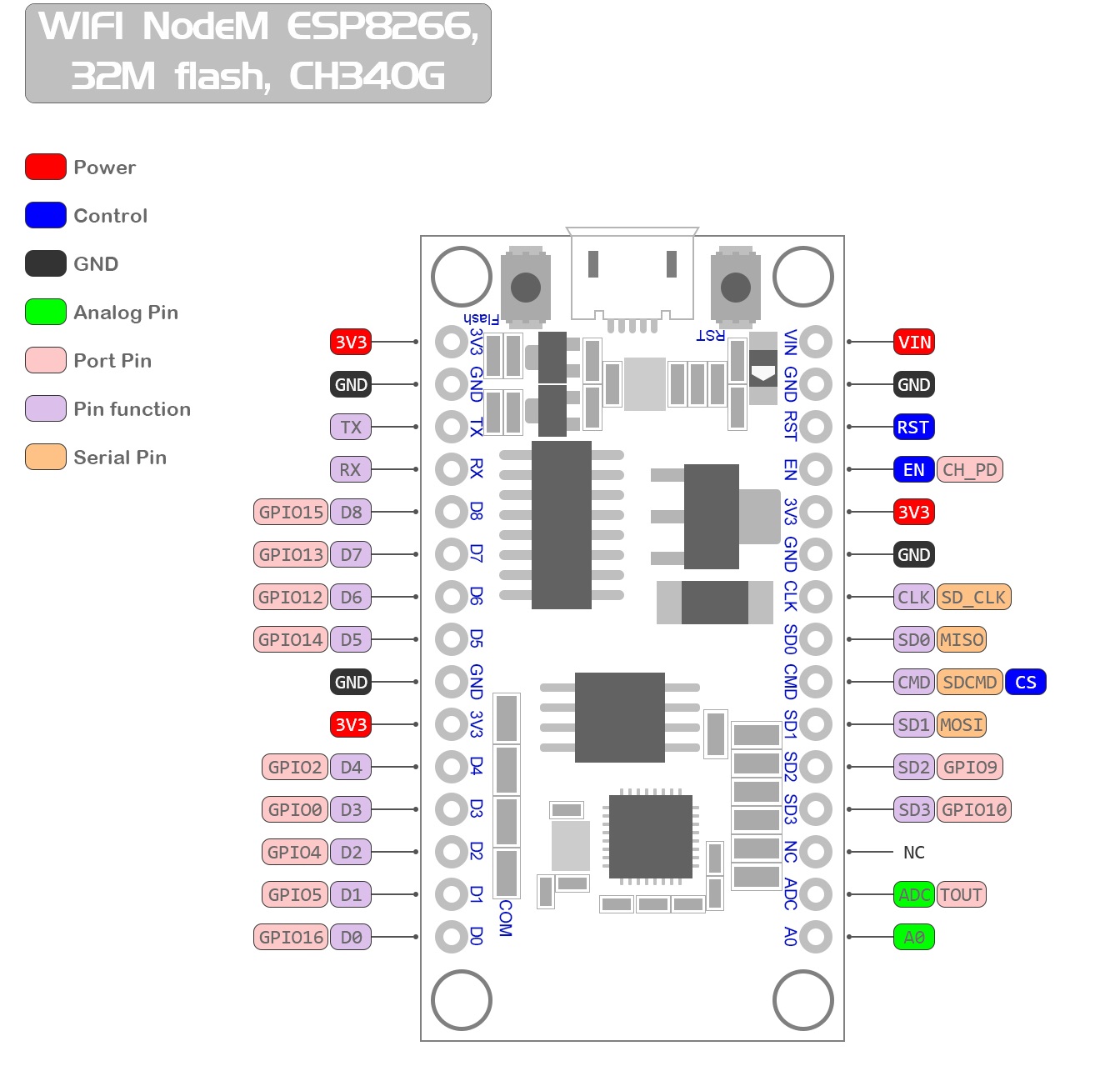

Pinout:

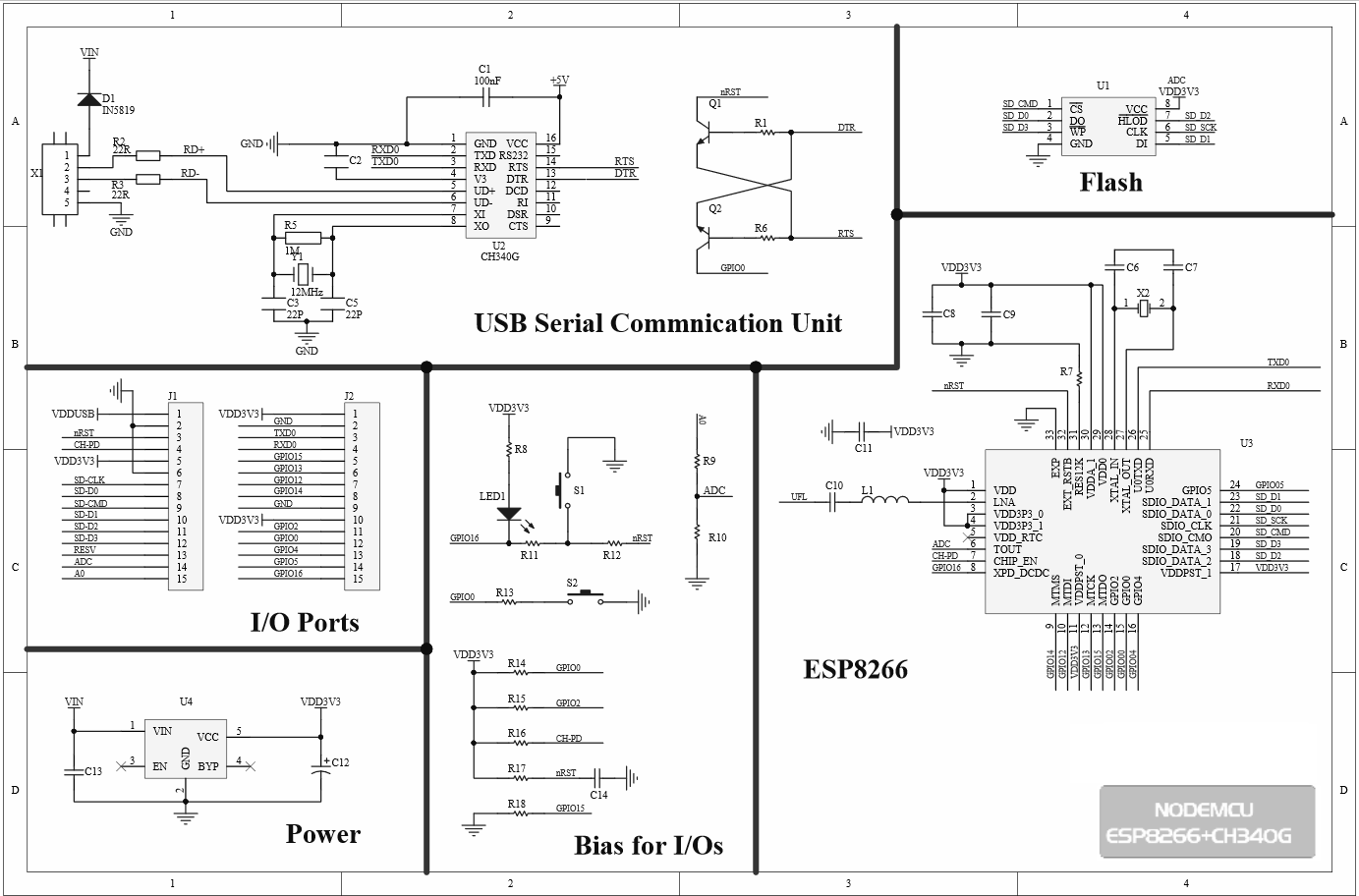

Schematic:

Dimensions:

Package included:

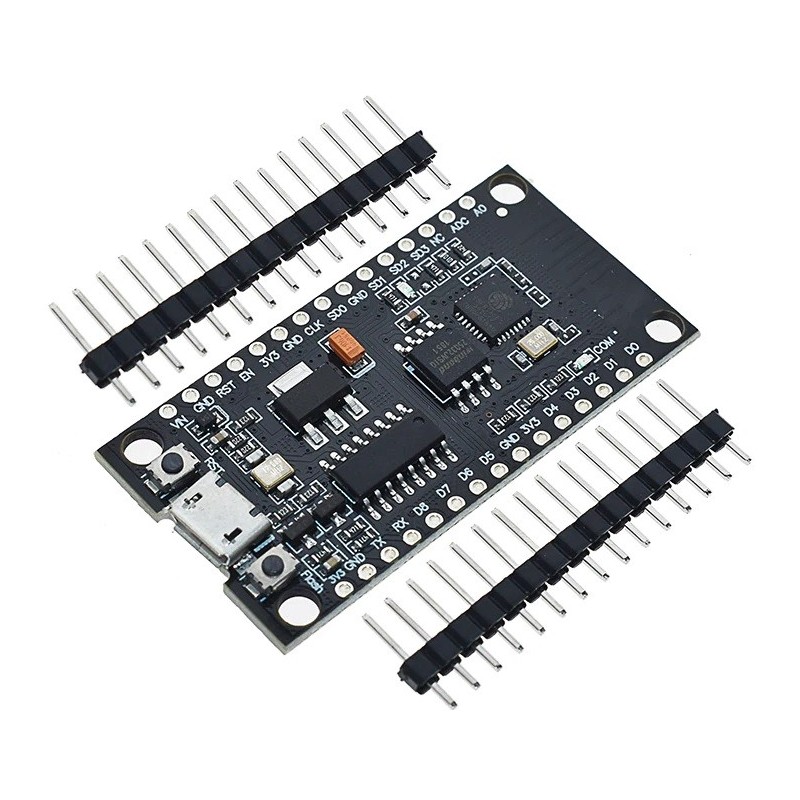

• 1 x Nodemcu V3 Lua ESP8266 32MB CH340G Development Board
• 2 x 15pin header for soldering
