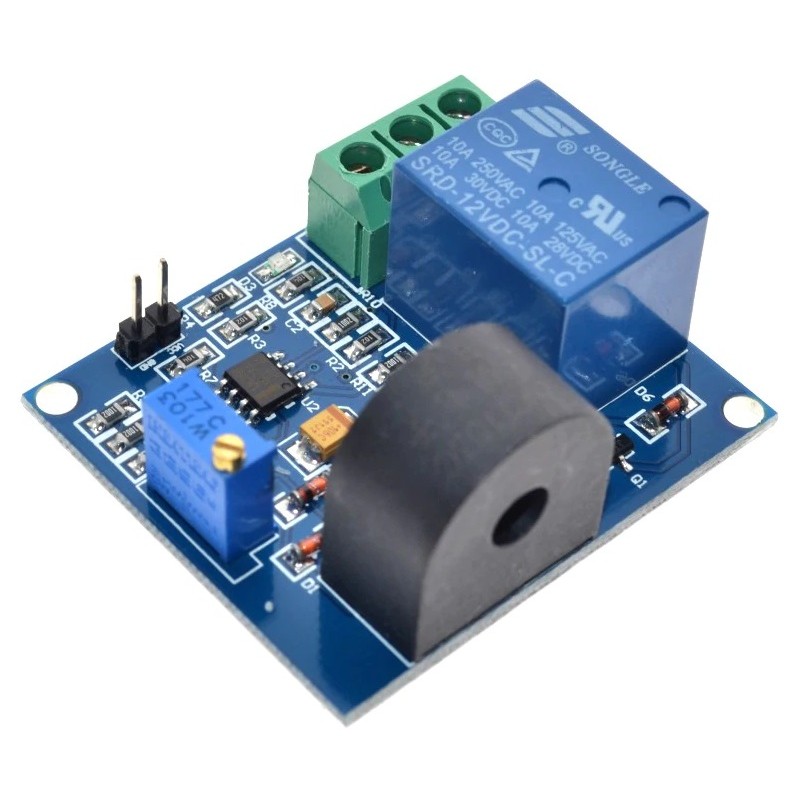

Protecção de Sobrecarga de Corrente AC 0~5A

:SEN14004
9,50 €
preço com IVA incluído

Com este sensor de corrente poderá deslastrar cargas ou até proteger um equipamento contra correntes excessivas. Com alimentação de 12Vdc, o controlo de correntes entre 0~5A (AC) pode ser ajustado através do potenciómetro.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product Specification:

  • Dimensions: Length 40mmX width 38mm.
  • The main chip: operational amplifiers, transformers.
  • Operating voltage: DC 12V.
  • Output: Switch Relay.
  • Current detection range: AC 0~5A.
  • Current detection resolution can change the resistance parameter settings.
  • Output over-current switch signal output.
  • Over-current signal is adjustable to set the critical point, set the resolution 0.2A.
  • With mounting holes for easy installation.
  • Applications: AC current equipment such as motor overcurrent detection, stall protection, short circuit protection testing, demonstration teaching experiments and so on occasion, to facilitate the secondary development; suitable for different loads, including inductive load, capacitive load, resistive load testing.

Conecctions

SEN14004
