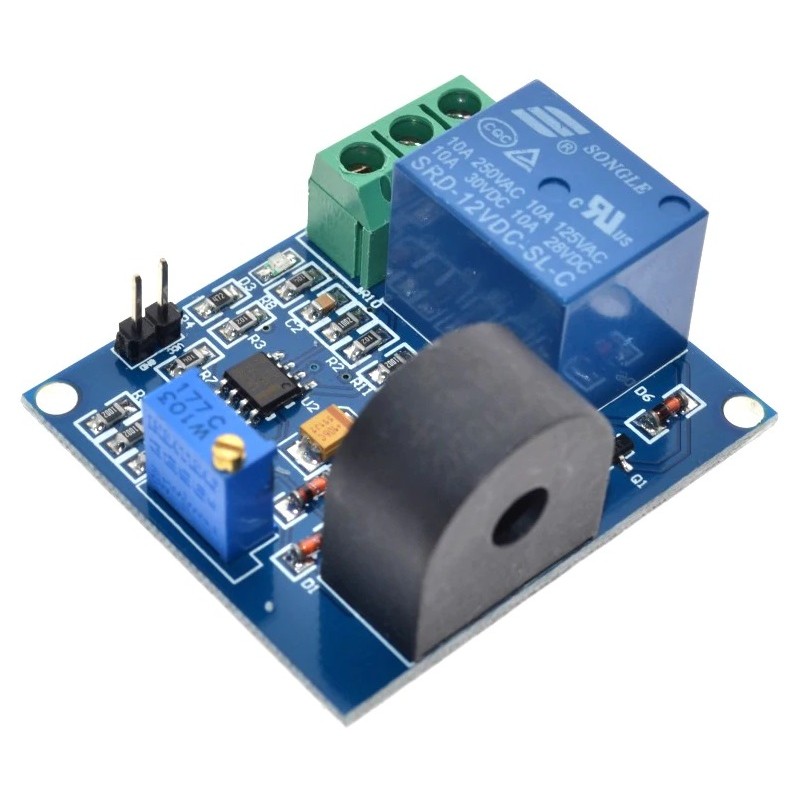

AC Current Relay Protection Sensor 0~5A

:SEN14004
€7.72

Applications: AC current equipment such as motor overcurrent detection, stall protection, short circuit protection testing, demonstration teaching experiments and so on occasion, to facilitate the secondary development; suitable for different loads, including inductive load, capacitive load, resistive load testing.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Specification:

  • Dimensions: Length 40mmX width 38mm.
  • The main chip: operational amplifiers, transformers.
  • Operating voltage: DC 12V.
  • Output: Switch Relay.
  • Current detection range: AC 0~5A.
  • Current detection resolution can change the resistance parameter settings.
  • Output over-current switch signal output.
  • Over-current signal is adjustable to set the critical point, set the resolution 0.2A.
  • With mounting holes for easy installation.
  • Applications: AC current equipment such as motor overcurrent detection, stall protection, short circuit protection testing, demonstration teaching experiments and so on occasion, to facilitate the secondary development; suitable for different loads, including inductive load, capacitive load, resistive load testing.

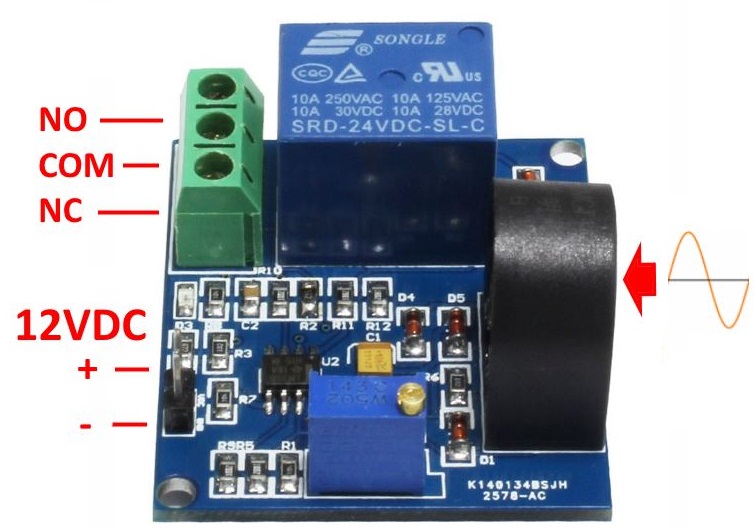

Conecctions

SEN14004
