Driver Motores Brushless 7-12VDC 1.2A

:MOT01058
18,40 €
preço com IVA incluído

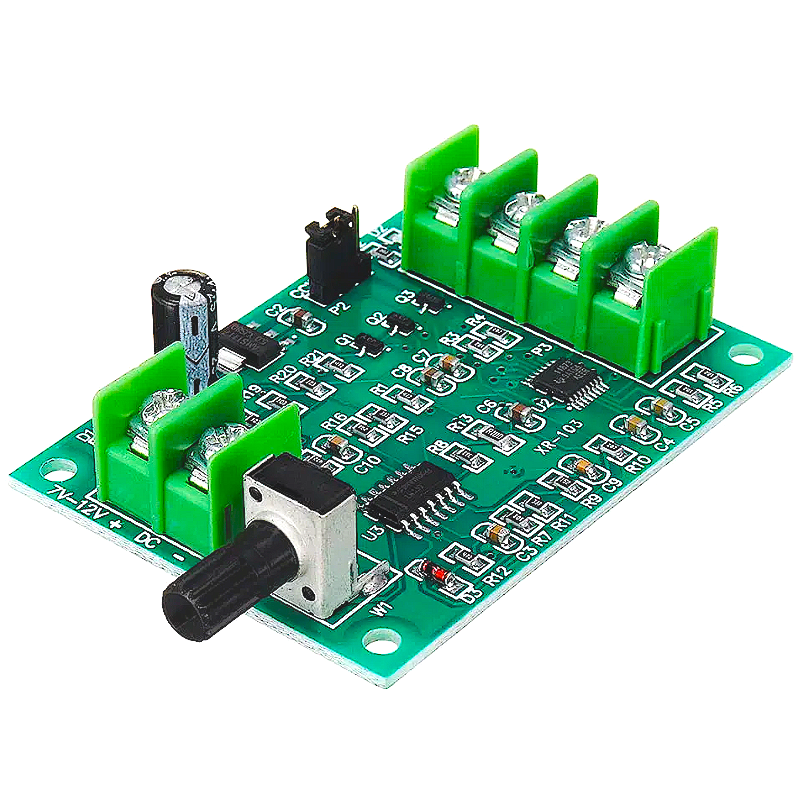

Placa de driver de motor sem escovas

1. Proteção de tensão reversa
2. Proteção contra sobrecorrente
3. Controle de reversão de fase
4. A placa de driver pode acionar motores sem escova de disco rígido, motor sem escova de CD-ROM e assim por diante, o micro de 3 fios ou 4 fios sem motor de escova.
5. Ligação fácil

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Small size, light weight, large output. High reliability, good stability, strong adaptability, simple maintenance. So you can use it safely.

Specification:

Material: PCB
Color: Green
Driving Voltage: DC5-12V
Working current: Less than or equal to 1.2A
Speed Adjustment: 0%-100%
How to identify the four-wire motor common port:
Test these four terminals with the multimeter's resistancex gear, one of them the resistance of the terminal and the other three terminals is the smallest and equal. So this is a COM terminal.
Weight: Approx. 22 g

MOT01058
