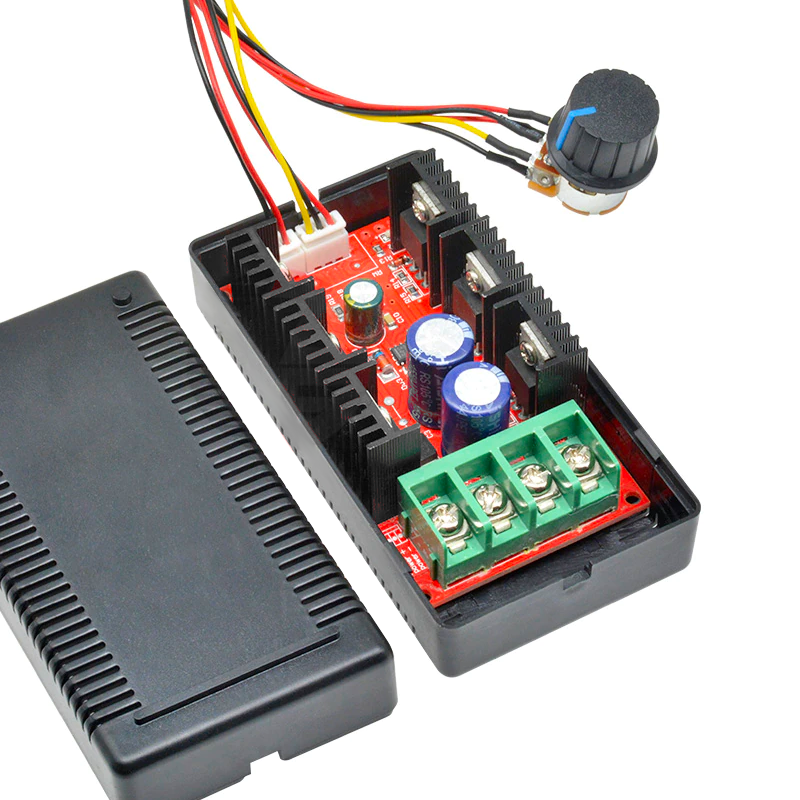

Variador Velocidade Motor DC 12 / 24V até 40A

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Power requirement: DC 9~50 V
Rated current: 40 A(Maximum output current)
Frequency: 12 KHZ
Control Motor Power: 0.01~2000 W
12 V: 480 W(max), 24 V: 960 W(max)
36 V: 1440 W(max), 50 V: 2000 W(max)
Regulation range: 5-100%
Working Temperature:-20~+40℃
Board Size(L*W*H): 90 x 50 x 27 mm
Case size(L*W*H): 105 x 55 x 40 mm

• Power Control with Soft Start

Main application:

1.All kinds of general-purpose have a dc motor speed control.
4.All kinds of dc lamp dimming, all kinds of dc heater temperature adjustment.
2.All kinds of motor(cars, car wiper, car fan control cooling fan control, auto air-conditioning fan speed control motor speed).
3.Production line conveyor belt, pipe exhaust fan speed control of speed and running machine control of motor speed, multiple computers parallel speed control, electronic fan speed control.
