Driver para 2 Motores DC até 1.2A (TB6612FNG) - Gravity

:MOT01046
6,83 €

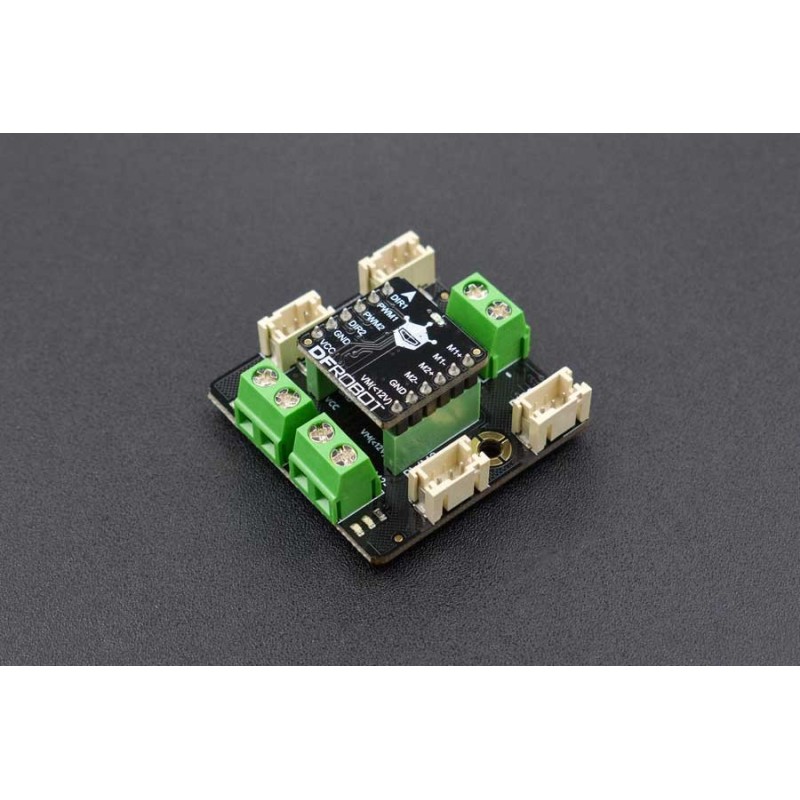

Esta placa é uma driver de motores DC DFRobot de dois sentidos com conector Gravity. É projetada com base no driver de motor TB6612FNG. Precisando apenas de quatro pinos para acionar dois motores.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The Gravity connector version expands four GPIO with standard Gravity connector. Once you use the Gravity IO Expansion board, it will be quite convenient.
TB6612FNG is a dual-channel full-bridge drive chip. The maximum continuous drive current of single channel can reach 1.2A, peak value 2A/3.2A (continuous pulse / single pulse) , which can drive some micro DC motors. The control logic is similar to L298n, and the code can be directly compatible with the DFROBOT L298N motor driver. Standard XH2.54 pin can be inserted directly into the breadboard. It is a good choice for DIY project or product developments. If you need some tiny module, you can also use the TB6612FNG module separately.



FEATURES

  • Gravity Ports Plug and play
  • Only four wires are required to drive two motors
  • Control method is compatible with Romeo, Code can be transplanted directly



SPECIFICATION

  • VCC Operating Voltage: 2.7V~5.5V
  • VM Input Power: 2.5V~12V
  • Driver Channel: 2 channel
  • Output Current: 1.2A (single-channel continuous drive current)
  • Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
  • Dimension:1.57x1.57(in) / 40 × 40(mm)



DOCUMENTS

Product wiki
More Documents



SHIPPING LIST

  • Dual DC Motor Driver (TB6612) (Pre-soldered headers) x1
  • Motor Driver Expansion Board with Gravity Connector x1
  • Gravity Analog Sensor Cable x4
MOT01046
