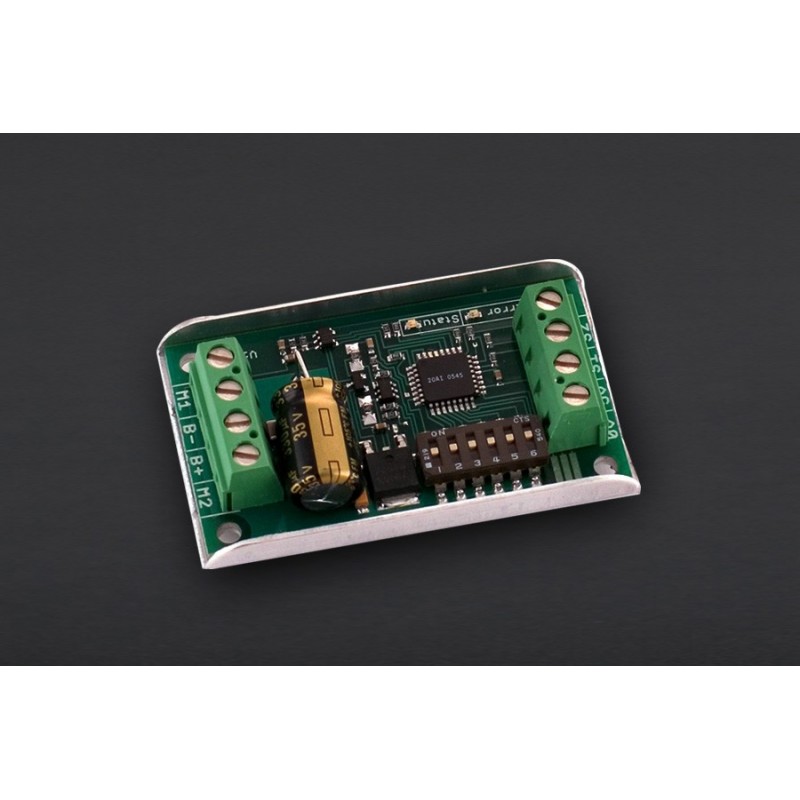

SyRen - Driver para motor DC até 10A

:MOT01042
51,02 €

O driver do motor SyRen é um dos drivers de motor mais versáteis, eficientes e fáceis de usar do mercado. É adequado para robôs de média potência.
O SyRen 10 pode fornecer 10A continuamente a um único motor DC, com correntes de pico de 15A por alguns segundos.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.



With just one SyRen driver you can control a motor with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a SyRen. Owning two SyRens allows you to build differential drive (tank style) robots because they can work in tandem with built in mixing.



The operating mode is set with the onboard DIP switches so there are no jumpers to lose. The SyRen features screw terminal connectors - making it possible for you to build a robot without even soldering.



SyRen is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. SyRen also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge.



SyRen has a built in 5V BEC that can provide power to a microcontroller or R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available.



SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no one will be able to hear your robot ninja army approaching.
Use of our motor drivers with cheap AC adapters is not recommended. Use a battery or at least put a battery in parallel with a DC supply.


APPLICATIONS

  • Combat robots up to 30lb
  • Normal and hobby robots up to 100lb
  • Differential drive robots
  • Electric vehicles, ride-on toys, scooters
  • Easy speed/direction control for pumps, conveyors, automation and any application that uses a brushed DC motor



SPECIFICATION

  • Up to 18V in: 10A continuous, 15A peak
  • 24V in: 8A continuous, 10A continuous with additional heatsinking/airflow, 15A peak
  • Synchronous regenerative drive
  • Ultra-sonic switching frequency
  • Thermal and overcurrent protection
  • Lithium protection mode
  • Input modes: Analog, R/C, simplified serial, packetized serial
  • Size: 35 x 57 x 14 mm (1.38 x  2.24 x 0.55")



DOCUMENTS



SHIPPING LIST

  • SyRen Dual 10A DC Motor Driver ×1
MOT01042
