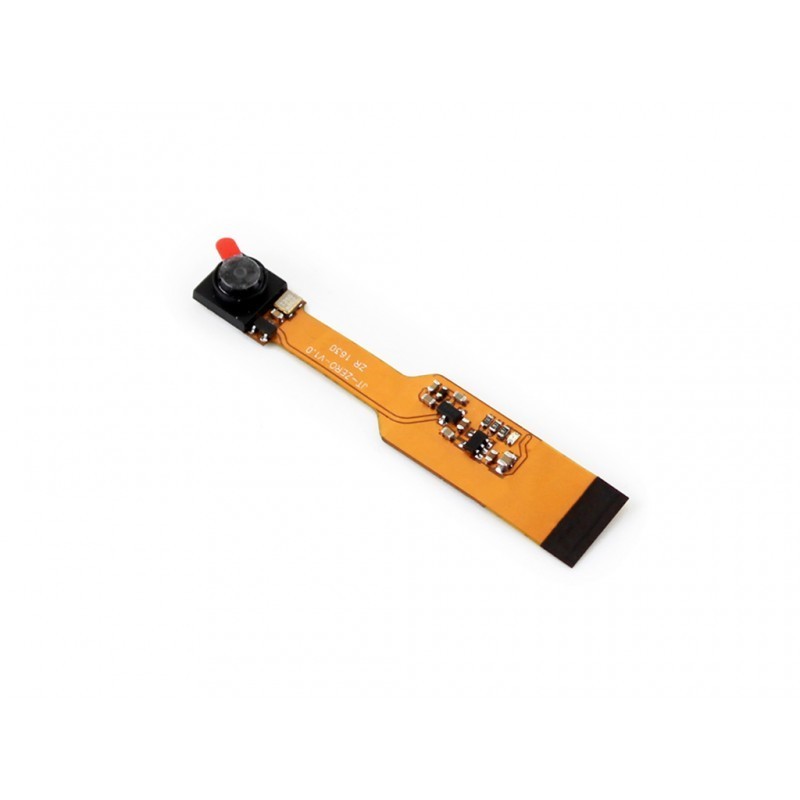

Mini Camera v1.3 p/ Raspberry Pi Zero
  • Mini Camera v1.3 p/ Raspberry Pi Zero
  • Mini Camera v1.3 p/ Raspberry Pi Zero
  • Mini Camera v1.3 p/ Raspberry Pi Zero
  • Mini Camera v1.3 p/ Raspberry Pi Zero

Mini Camera v1.3 p/ Raspberry Pi Zero

:PCO01074
22,80 €
preço com IVA incluído

Câmera de 5 Mpixel com sensor OV5647 para a Raspberry Pi Zero.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

  • Raspberry Pi Camera, supports Raspberry Pi Zero V1.3 ONLY
  • 5 megapixel OV5647 sensor
  • Camera specifications
    • CCD size : 1/4inch
    • Field of View : 72.4 degree
    • Sensor best resolution : 1080p
  • 2592 × 1944 still picture resolution
  • Support 1080p30, 720p60 and 640x480p60/90 video record
  • Dimension: 60mm × 11.5mm × 5mm

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Zero_V1.3_Camera

Selection Guide

PartnumberPixelsSensorAdjustable-focusInfrared Night VisionAngle of View (degree)ManufacturerDimensions (mm)Recommendation 1
RPi Camera 5 Mega OV5647 × × 72.4 element14 25x24x9 ★
RPi Camera V2 8 Mega IMX219 × × 73.8 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × √ 73.8 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 √ × 75.7 Waveshare 32x32 ★★★
RPi Camera (C) 5 Mega OV5647 × × 72.4 - 25x24x9 ★☆
RPi Camera (D) 5 Mega OV5647 × × 72.4 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × √ 72.4 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 √ √ 75.7 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 √ × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 √ √ 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 √ × 170 Waveshare 32x32 ★★★
RPi Camera (J) 5 Mega OV5647 √ × 222 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera 2 5 Mega OV5647 √ √ 75.7 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera 5 Mega OV5647 × × 72.4 Waveshare 60x11.5x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.

Package Content

Weight: 0.01 kg

  • RPi Zero V1.3 Camera × 1
PCO01074
