Interruptor de efeito Hall
  • Interruptor de efeito Hall
  • Interruptor de efeito Hall
  • Interruptor de efeito Hall

Interruptor de efeito Hall

:SEN10031
9,90 €
4,95 € Poupe 4,95 €
preço com IVA incluído

Interruptor Sensor Magnetico ON/OFF por efeito Hall

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

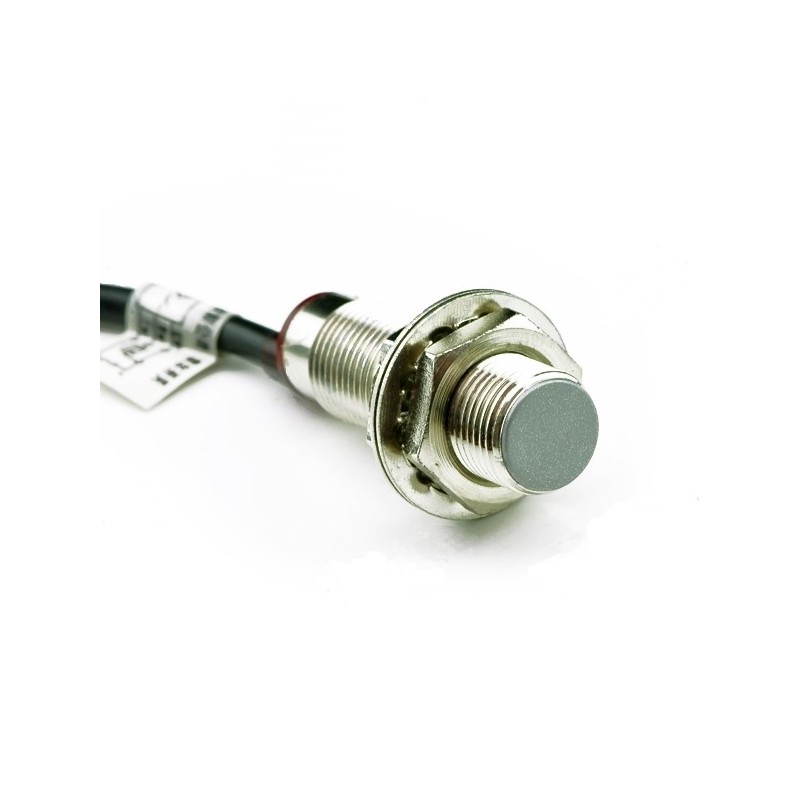

Description: The is a Hall effect Switch sensor. Holding a magnet near the sensor will cause the output pin to toggle.

Specification

  • Output:NPN
  • Brown: VCC; Black:Signal;Blue:GND
Model number CHE12-10 series
External dimensions M12x1x38
Detection distance 10mm
Supply voltage-hall effect 5-30VDC
Continuous load current 150mA
Sensing object Permanent magnet
Output indication Red and green LED
Protection Reverse polarity protection/Surge suppressor
Dielectric strength 1500Vac, 1min (between charging part and housing)
Cable length Standard is 1.5 m, can be customized
Material Case: Brass-nickel plated
Purpose Widely used in detecting clockwise rotating and anticlockwise rotating counting. When the magnet pass gray face, red LED light, black wire switch on, pass black face, green LED light, white wire switch on.

CHE12-10N11-H710 two way hall effect sensor

SEN10031
