SENSOR MAGNÉTICO + ÍMAN - ALCANCE 10~15MM IP68

:SEN02014
1,95 €

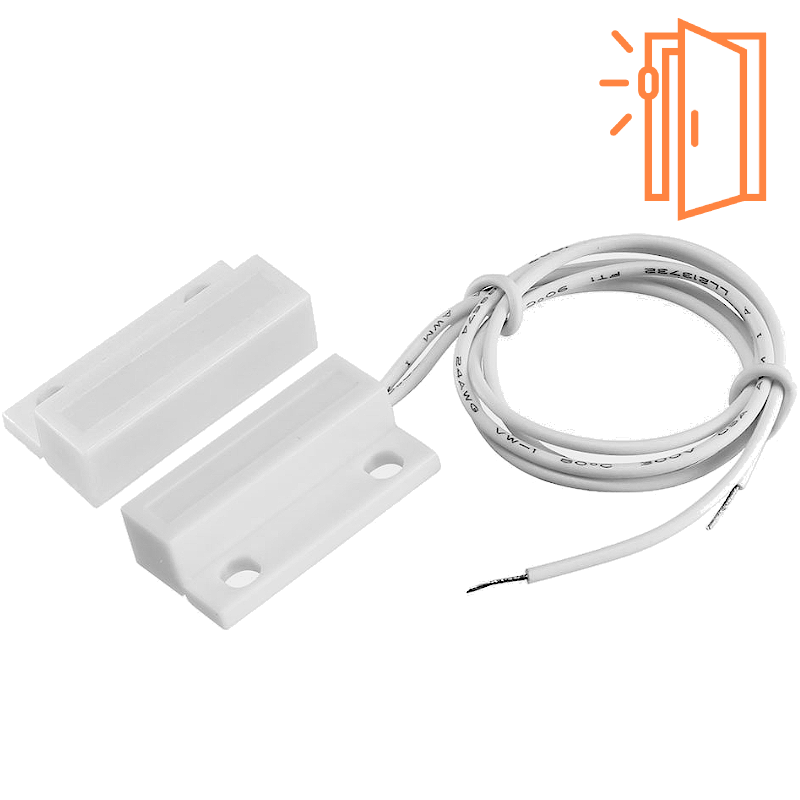

O sensor magnético vem em par que consiste num sensor Reed e um íman. A parte com fio do módulo é o interruptor reed. É comum ser usado por um sistema de alarme de segurança doméstica.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The sensor can be connected to a microcontroller or a processor pretty easily. The Reed Switch part has 2 outputs- Ground and Signal.

MC-38 Connections with MCU

Note: The magnetic switch is non-polar, there is no specific pinout. You can connect the switch’s ground and signal cable in any order.



Working

MC-38 Magnetic Switch Working

In the left half of the image, the magnet is at a distance to the switch, which prevents the metal reeds to go closer and complete the circuit. Whereas, on the other half of the image, it can be seen that when the magnet is closer to the switch, the metal reeds get connected to one another and the circuit is completed and we observe an output through the sensor module.

To summarise, when the magnet is close by, the circuit is closed and we obtain an output, and when the magnet is far from the reed switch, the circuit is open and we do not get an output



Applications

Here are some of the applications of this module.

  1. Can be used at doors or windows to know the open and closed state
  2. Used to detect an intruder activity
  3. Home Alarm system



2D Model

Below is the 2D model of the module. It can be used to design custom footprints and be used in custom-designed printed circuit boards or CAD models.

MC-38 Magnetic Switch Dimensions

Note: All the dimensions are in millimeters.

SEN02014
