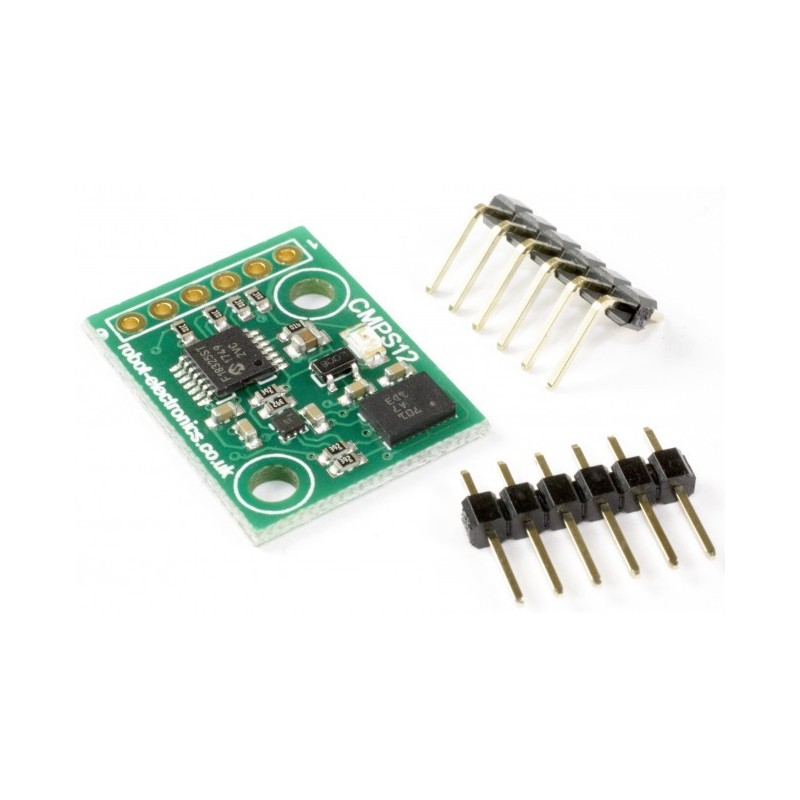

CMPS12 - Tilt compensated compass

:SEN02007
€34.50
Tax included

The 4th generation tilt compensated compass, powered by the Bosch BNO055, delivering better performance than ever!

Power - 3.3v-5v 18mA Typ.
Resolution - 0.1 Degree
Accuracy - Better than 1%. after calibration
Signal levels - 3.3v, 5v tolerant
I2C mode - up to 400khz
Serial mode - 9600, 19200, 38400 baud

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The 4th generation tilt compensated compass, powered by the Bosch BNO055, delivering better performance than ever!

Power - 3.3v-5v 18mA Typ.
Resolution - 0.1 Degree
Accuracy - Better than 1%. after calibration
Signal levels - 3.3v, 5v tolerant
I2C mode - up to 400khz
Serial mode - 9600, 19200, 38400 baud

Full Technical Data

We also have a free design for a 3d printed tower here

Examples:
I2C bus tutor - general I2C guide
Arduino - I2C interface or a serial interface and displaying data via the serial monitor
ATMEGA32 - reading the result and displaying on a LCD03/LCD05
PIC18F4410 - reading the result and displaying on a LCD03/LCD05
PIC24FJ16GA002 - reading the result and displaying on a LCD03/LCD05
Picaxe18x - I2C communication example
Raspberry Pi - using I2C communication

SEN02007
