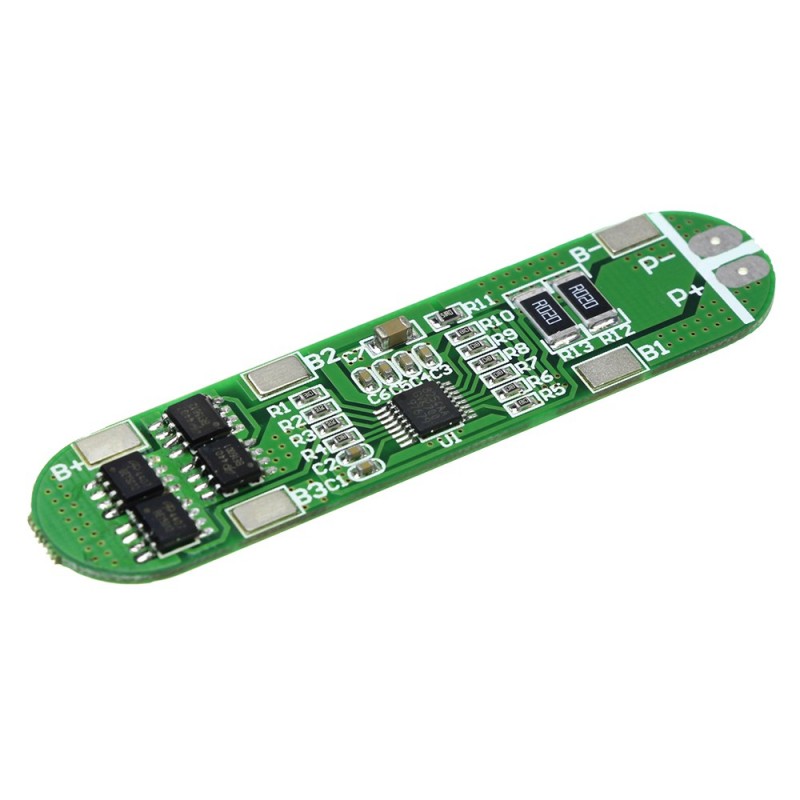

BMS para protecção Baterias 18650 4S 14.4V~16.8V 6A

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

• 4 series 18650 battery 16.8V 16V 14.8V
•    14.8V (Li-ion 18650 or li-ion battery rated voltage)
•    16.8V (Li-ion battery full charge voltage)
•    14.4V ( Lipo battery pack rated voltage)
•    The lithium battery protection board is not included the welding tabs
•    Over Charge Voltage:4.25-4.35v±0.05v
•    Over Discharge Voltage: 2.3-3.0v±0.05v
•    Max working current:4-5A
•    Max Peak current:6-7A
•    Working Temperature:-40---+50
•    Storage Temperature:-40-- +80
•    Small current:6uA
•    Life cycle:50000hours
•    Resistance:45m
•    Short cut Protection:Protectable
•    Size:67*16*1.0mm

1. High-accuracy voltage detection circuit;
2. Terminal of the charger using high voltage device;
3. Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4. CMOS transistor can control the battery charge and discharge;
5. Low standby current consumption.
