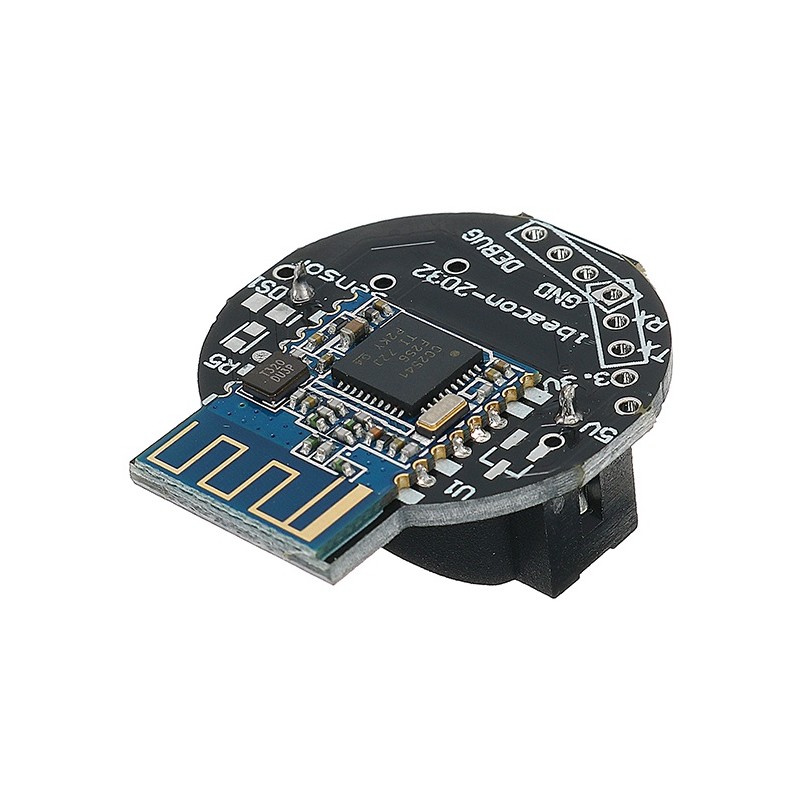

Módulo Bluetooth 4.0 iBeacon BLE - Near-field Positioning Sensor - CR2032

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specifications:

• iBeacon  Module Bluetooth 4.0 BLE Support Near-field Positioning Sensor Wireless Acquisition
• Compatible with Apple iOS 7.0 or Android 4.3+, Bluetooth 4.0+
• BT version: Bluetooth Specification V4.0 BLE
• Send and receive no bytes limit.
• Working frequency: 2.4GHz ISM band
• Modulation method: GFSK(Gaussian Frequency Shift Keying)
• RF power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT
• Command AT+POWE.
• Speed: Asynchronous: 6K Bytes
• Synchronous: 6K Bytes
• Security: Authentication and encryption
• Service: Central & Peripheral UUID FFE0,FFE1
• Power: +3.3VDC 50mA
• Long range: Open space have 100 Meters with iphone4s
• Power: In sleep mode 400uA~1.5mA, Active mode 8.5mA.
• Working temperature: –5 to +65 Centigrade
• Size: 24.8mm x 24.8mm,  thickness 7.5mm
• Battery type: CR2032 (NOTE: the battery not included)
• You can customize your own iBeacon configuration including UUID etc
• Support firmware upgrade
• Support payment interface
• Support broadcast read the battery level, temperature, humidity acquisition, without connecting module
• Lightblue for Apple: you can download it in your apple store
• Tested with iOS 7.0
• Based on TI's CC2541. The range is 30M (HM10 Compatible)
• Support broadcast read the battery level, temperature, humidity acquisition, without connecting module

Video Demonstration:

Documents:

http://www.diymalls.com/files/FZ1095.zip
