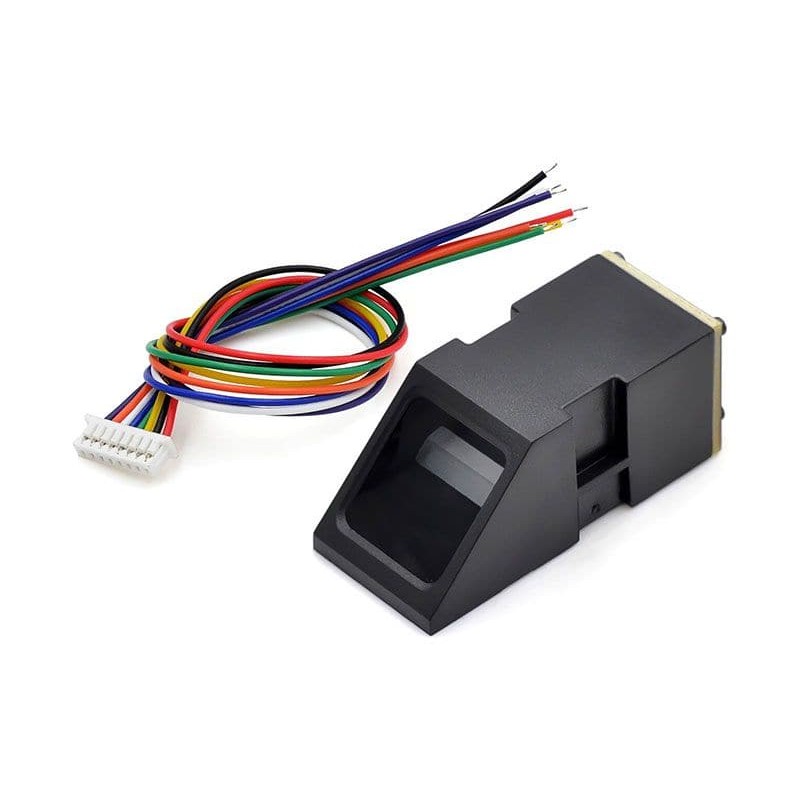

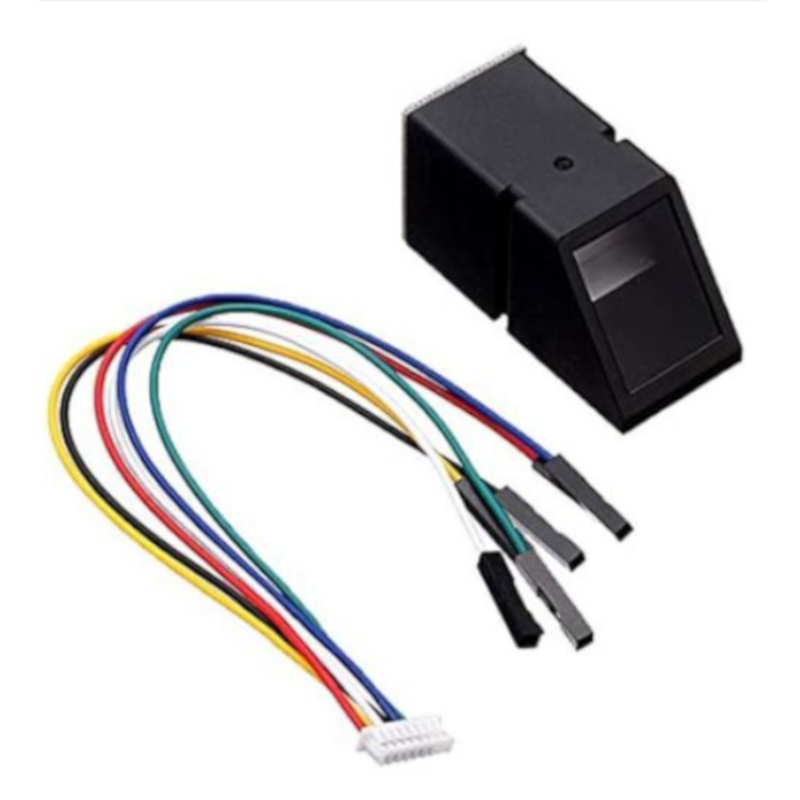

Módulo Leitor Impressão Digital AS608

: SEN13009
28,55 €
preço com IVA incluído

Proteja o seu projeto com biometria - este sensor de impressão digital tudo-em-um fará a detecção de impressões digitaise e verificação super simples.

Quantidade

ESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Dive into biometric security with this easy to use fingerprint sensor! This fingerprint sensor simplifies the process of fingerprint detection, storage, and verification. Inside the sensor is a high power DSP chip that does all image rendering, calculation, feature finding, and searching.

The sensor is relatively easy to use with any TTL capable microcontroller or system. Although this is not the exact same sensor, it is compatible with the fantastic tutorial Adafruit has put together (just note that the pinout from the connector is different!). There is also free Windows based software available – this makes testing and viewing fingerprints very straight forward (but you will need a TTL serial cable!)

Pinout:

  • Red: 3.3V
  • Yellow: TX
  • White: RX
  • Black: GND
  • Blue: Touch
  • Green: VA



Features

  • Voltage: 3.3V
  • Resolution: 500dpi
  • Backlight color: Blue
  • Interface: TTL Serial
  • Peak Current: 60mA
  • Fingerprint Read Time: < 1.0 Second
  • Dimensions: 48 x 21 x 24mm

Tuturial:

Adafruit Tuturial pdf

Webpage Tutorial



SEN13009
