AS608 Fingerprint Reader Module - Funduino

: SEN13009
€28.55
Tax included
Secure your project with biometrics - this all-in-one optical fingerprint sensor will make adding fingerprint detection
and verification super simple.
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

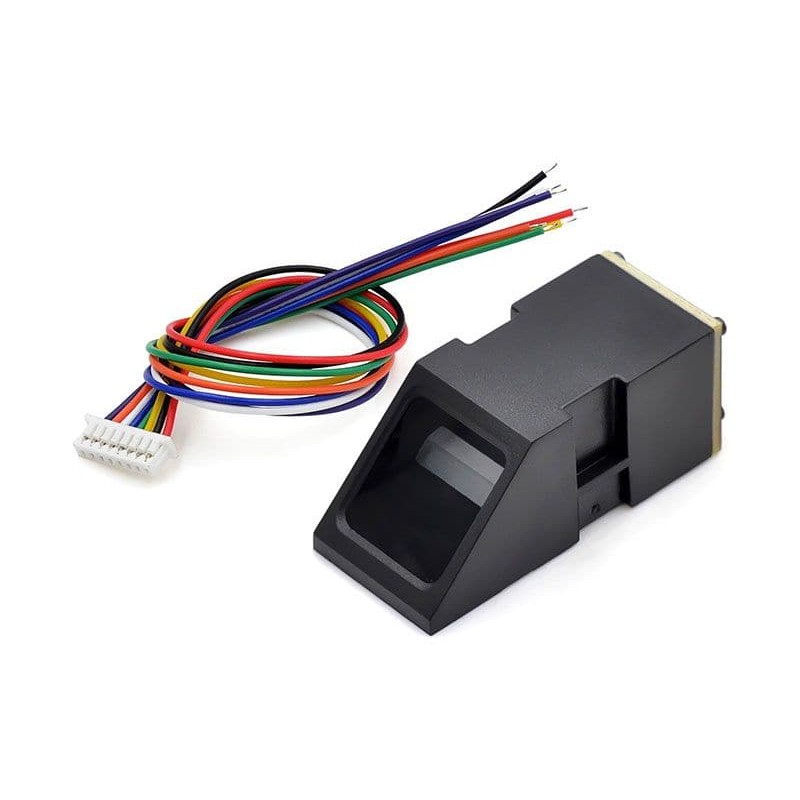

Dive into biometric security with this easy to use fingerprint sensor! This fingerprint sensor simplifies the process of fingerprint detection, storage, and verification. Inside the sensor is a high power DSP chip that does all image rendering, calculation, feature finding, and searching.

The sensor is relatively easy to use with any TTL capable microcontroller or system. Although this is not the exact same sensor, it is compatible with the fantastic tutorial Adafruit has put together (just note that the pinout from the connector is different!). There is also free Windows based software available – this makes testing and viewing fingerprints very straight forward (but you will need a TTL serial cable!)

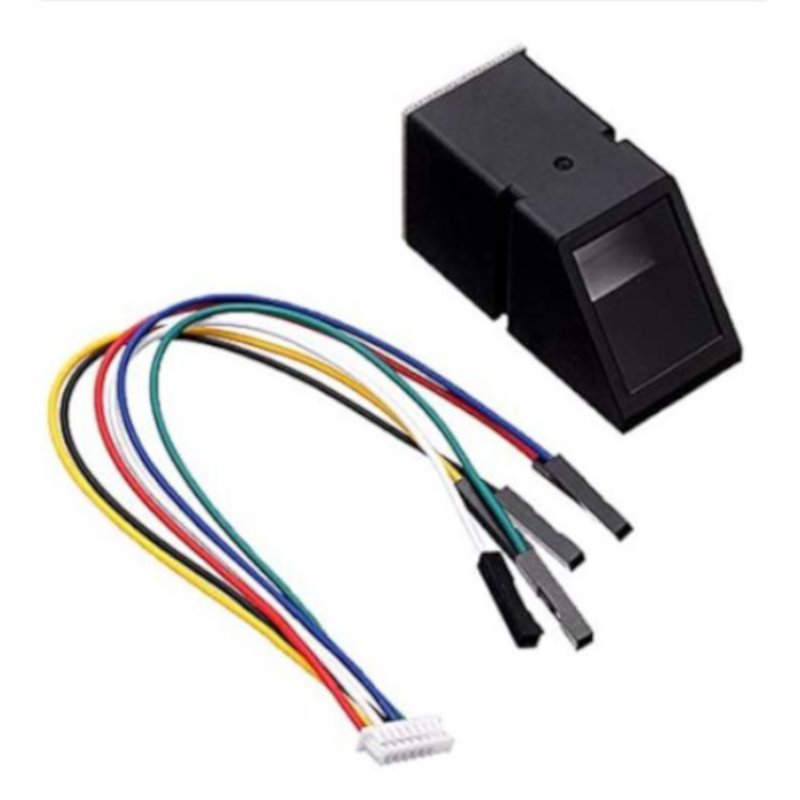

Pinout:

  • Red: 3.3V
  • Yellow: TX
  • White: RX
  • Black: GND
  • Blue: Touch
  • Green: VA



Features

  • Voltage: 3.3V
  • Resolution: 500dpi
  • Backlight color: Blue
  • Interface: TTL Serial
  • Peak Current: 60mA
  • Fingerprint Read Time: < 1.0 Second
  • Dimensions: 48 x 21 x 24mm

Simple to use: as long as there is a serial microcontroller, embedded can operate the module, MSP430, 51, AVR, PIC, STM32, ARM, FPGA, Arduino controller, pcDuino, etc. can operate the module.
You can also use the computer’s serial port to control the module through the serial port.



  • Supply voltage: 3.6- 6.0VDC
  • Operating current: 120mA max
  • Peak current: 150mA max
  • Fingerprint imaging time: <1.0 seconds
  • Window area: 14mm x 18mm
  • Signature file: 256 bytes
  • Template file: 512 bytes
  • Storage capacity: 162 templates
  • Safety ratings (1-5 low to high safety)
  • False Acceptance Rate: <0.001% (Security level 3)
  • False Reject Rate: <1.0% (Security level 3)
  • Interface: TTL Serial
  • Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600)
  • Working temperature rating: -20C to +50C
  • Working humidy: 40%-85% RH
  • Full Dimensions: 56 x 20 x 21.5mm
  • Exposed Dimensions (when placed in box): 21mm x 21mm x 21mm triangular
  • Weight: 20 grams



Tuturial:

Adafruit Tuturial pdf

Webpage Tutorial



SEN13009
