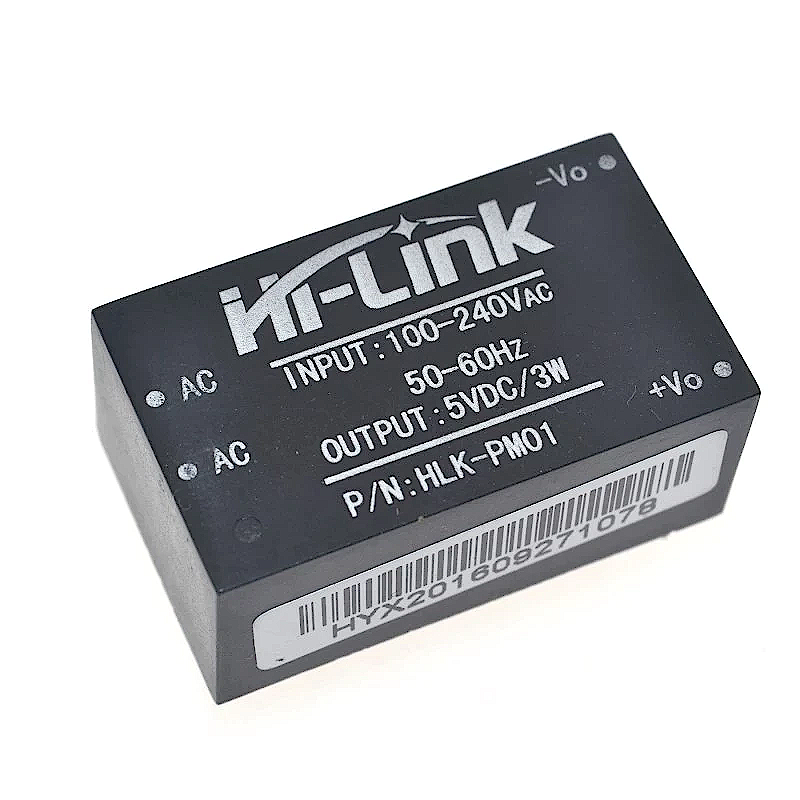

Alimentador AC-DC 5V 3W - HLK-PM01

: FAL04018
4,95 €
preço com IVA incluído

Este pequeno alimentador da Hi-Link consegue fornecer 5Vdv quando alimentado com uma tensão entre 100Vac ou 240Vac.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specification:

  1. Rated input voltage: 100-240 VAc

  2. Input voltage range: 90-264 VAc

  3. Maximum input current: ≤0.2 A

  4. Input current surge: ≤10 A

  5. Maximum input voltage: ≤270 VAc

  6. Enter slow start: ≤50 mS

  7. Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%

  8. Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%

  9. Long-term reliability: MTBF≥100000 h

  10. Load rated output voltage: +5±0.1 V DC

  11. Full rated output voltage: +5±0.2 V DC

  12. Short-term maximum output current: ≥1000 mA

  13. The maximum output current for a long time: ≥600 mA

  14. Voltage Regulation: ±0.2 %

  15. Load Regulation: ±0.5 %

  16. Output ripple and noise: ≤50 mVp-p

  17. Output over-current protection: 150-200% of the output maximum load

  18. Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal



FAL04018
