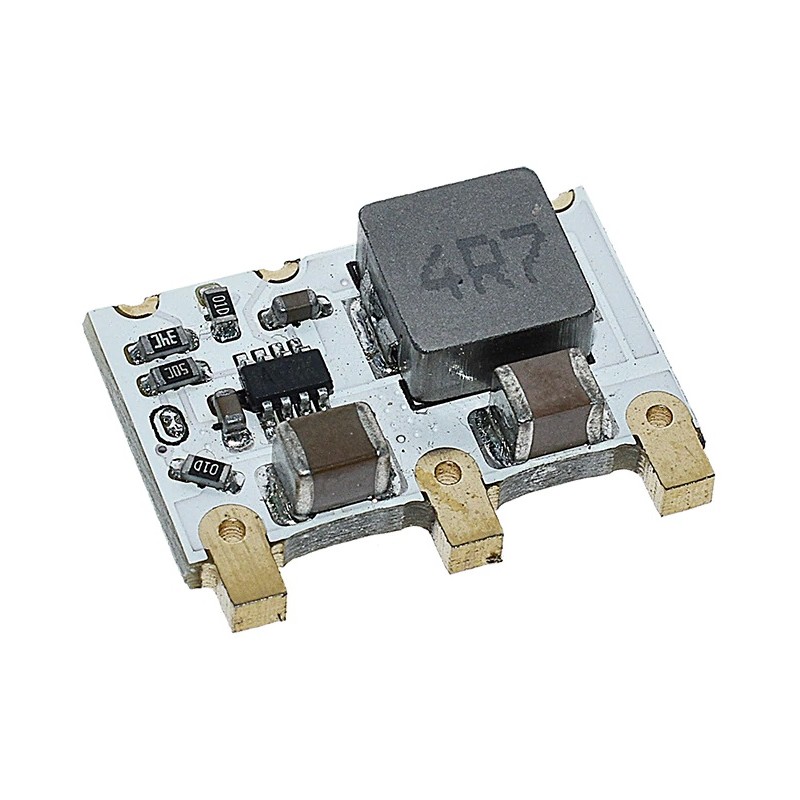

Mini Conversor DC-DC Step-Down 4A

:FAL08059
4,75 €
preço com IVA incluído

Está a usar um 7805 ou um LD33 para baixar a tensão de 12V e já não consegue puxar mais corrente destes reguladores de tensão?

Com este mini conversor step-down e pinout compatível com o 7805, embora ligeiramente mais largo, poderá muito bem resolver esse problema.

Por defeito vem configurado para a saída de 5.2Vdc, mas basta remover o shunt (usando um ferro de soldar) indicado na imagem da descrição para que a saída passe a ser 3.3Vdc.

A tensão de entrada pode variar entre 4.5~16Vdc e consegue debitar até 4A com uma eficiência máxima de 98%.

Tem ainda um pino de enable que poderá usar para ligar e desligar a saída. Por defeito ligado a nível alto a saída está ativa, ligado a nível baixo desativa a saída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specifications:

  • Input voltage: 4.5V~16V
  • Output voltage: 3.3V / 5.2V
  • Buck efficiency: up to 98%
  • Output current: 0~4A
  • Voltage accuracy: <1%
  • Load regulation: <0.5%
  • Output ripple noise: <20mV
  • Static power consumption: <500uA
  • Working environment: -40 ° ~ 85 °
  • Size: 13x18.6x5mm


Features:

Preset with two kinds of voltage, the default output is 5.2V for mobile phone and other electronic products can make up the line loss when charging to achieve greater charge current.

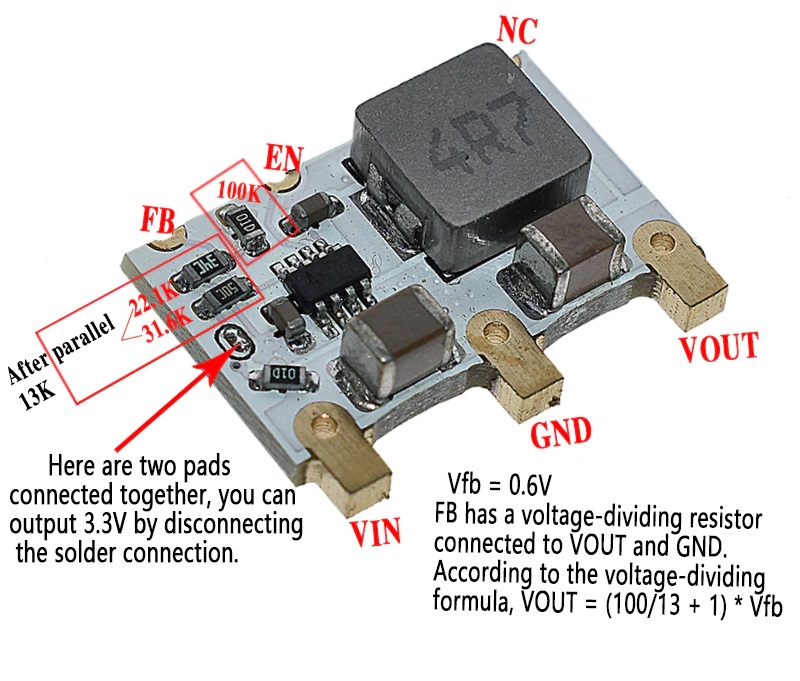

With a electric solsering iron you could disconnect the shunt as shown on the image and the output switch to 3.3Vdc.

Functions

Leads to the EN control pin, the default high-level enables output. When conected EN to the ground, disable the output.

Leads to FB pin, with professional knowledge the user can change the output voltage with external resistor.



FAL08059
