8 Channel Bluetooth GPIO Module
  • 8 Channel Bluetooth GPIO Module

Módulo GPIO bluetooth 8 canais

:COM01011
39,90 €
34,90 € Poupe 5,00 €
preço com IVA incluído

Módulo bluetooth GPIO de 8 canais de baixo custo e fácil implemnetação para ligar ao PC ou outro circuito electrónico.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

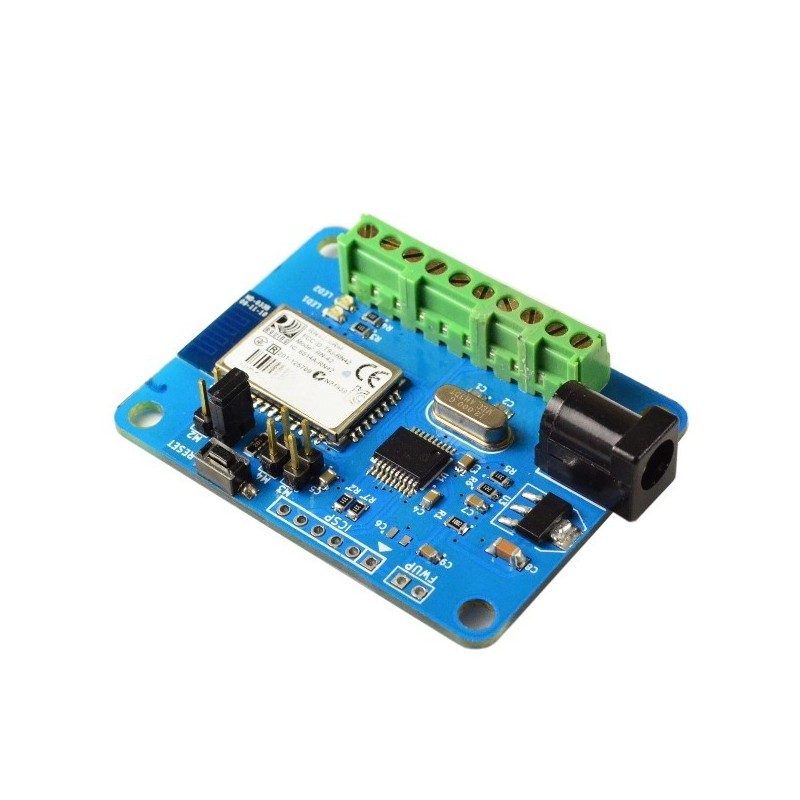

Numato’s 8 Channel Bluetooth GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through Bluetooth. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. 8 TTL compatible GPIOs available and 6 Analog input channels (shared with GPIOs). 10 Bit Analog input resolution. All GPIOs can be individually configured as input or output. 20ma Source/Sink capacity per IO.

ADC Resolution 10Bit
Communication Bluetooth
#Of ADC Inputs (Multiplexed with IOs) 6
ROHS Yes
Number Of GPIOs (Max) 8

Manual, drivers and sample code visit the supplier website.

COM01011
