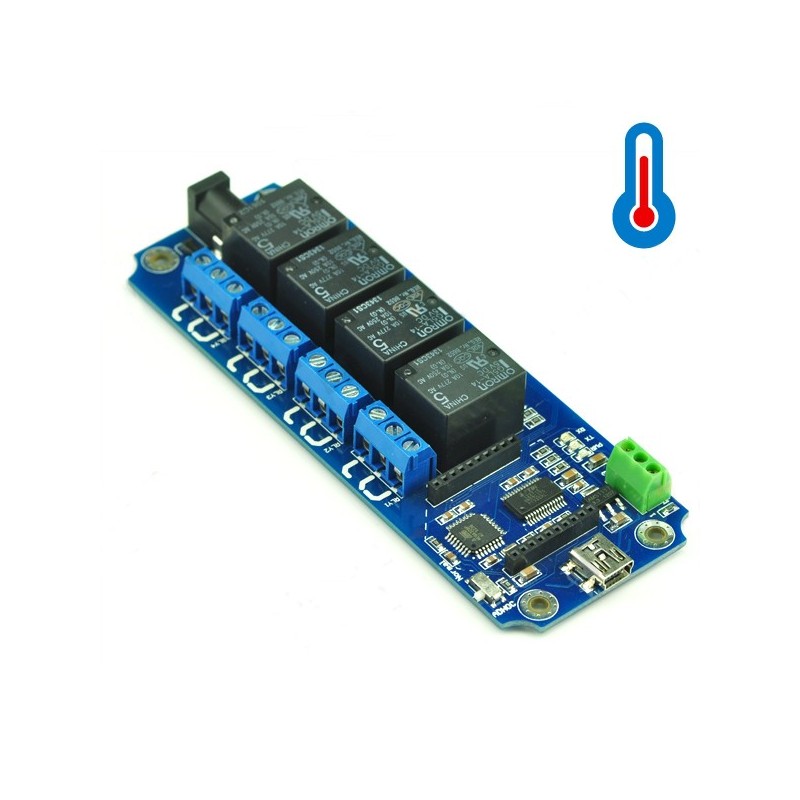

Modulo de Relés 4 Canais USB/Wireless
  • Modulo de Relés 4 Canais USB/Wireless
  • Modulo de Relés 4 Canais USB/Wireless
  • Modulo de Relés 4 Canais USB/Wireless

Modulo de Relés 4 Canais USB/Wireless

:MRE01019
24,31 €
preço com IVA incluído

TOSR02-T - 4 Canais USB/Wireless

(Suporta Sensor de Temperatura)

Compatível com XBEE, Bluetooth Bee e Wifly





Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Description:

This USB/Wireless Relay Module allows computer control switching of external devices by using the USB port of your computer!

Meanwhile, It  has a wireless extension port, can work with XBEE or Bluetooth Bee or Wifly Module, which mean now you can control your device by zigbee or Bluetooth or WiFi !

The TOSR04-T module can powered by USB bus or DC power and provides four volt free contact relay outputs with a current rating of up to 10 Amp each. It also has a DS18B20 temperature sensor port. You can use it make your thermostat or any other similar application by yourself.

Relay power rating
If the relay is used at a voltage or current exceeding this specification, the life of the contacts may be significantly shortened.

A full datasheet for the relays used on the TOSR04 is here: G5LA datasheet

If you use DC Power ,the Input voltage should be DC5V.

First Step - Install the Driver
The TOSR04-T module uses FT232RL USB to UART chip . Before using the TOSR04-T you will need to download the FT232RL Driver.

Connect the TOSR04-T and windows will detect it and ask for the drivers. Point windows to the inf folder and it will install the driver.

The TOSR04-T will now appear as a com port.

Commands
The TOSR04-T operates with an easy to use command set as described in the table below.

TOSR04-T Baud rate : 9600

Test program
To get the TOSR04-T up and running in the minimum amount of time we have put together an example program to demonstrate the functionality of the module.



Bluetooth control

WIFI control

Documents:
User Manual
G5LA datasheet
FT232RL Driver
Test Program
Realterm serial debug tool
Controlling a TOSR0x USB Relay Module Using Python
Linux Python module
iPhone APP (WIFI)
Android APP(WIFI)
Android APP(Bluetooth)
