Adaptador de cabo USB para terminal de 5 pinos sem solda para facilitar assim a ligação à alimentação.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.

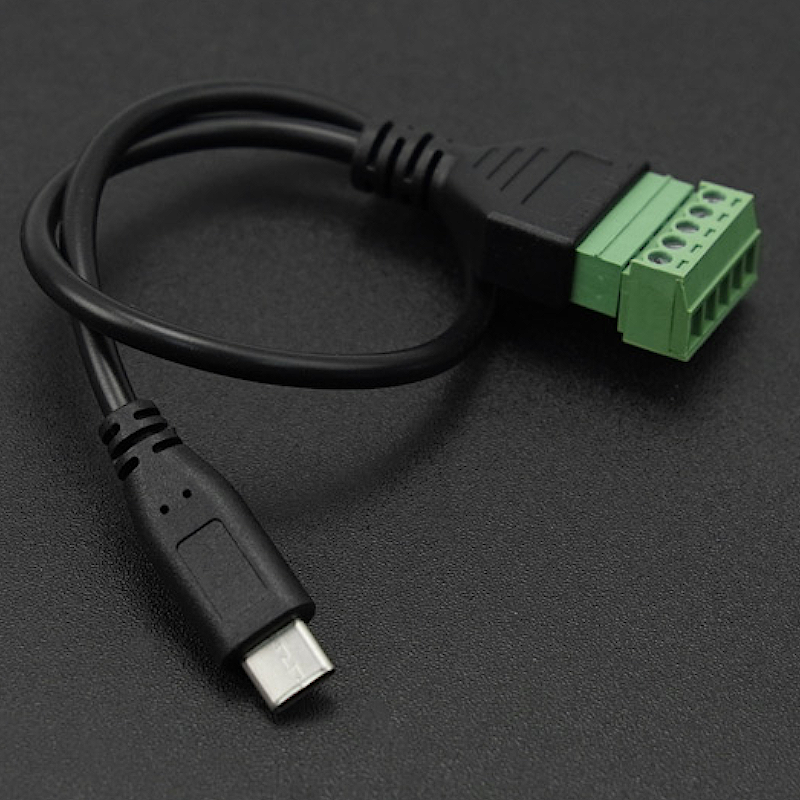

This power cord converts the Type-C interface into a 5-Pin solder-free terminal for easy connection and power supply. The positive and negative pins and data pins of the Type-C interface are led out, and the wire length is 30cm. Supports 5V2A power output, which is very suitable for debugging Type-C interface devices and power supply needs of outdoor projects.
Overview of the Type-C Male to Solderless Terminal Power Cord
Operating Voltage: 5V
Output: Type-C, USB2.0
Transmission Speed: 20-60MB/S
Support Voltage: 5V2A
Input: 5Pin terminal
Pin Definition: +: Positive Pole, -: Negative Pole, D+ D-: Data, S: GND
Wire Diameter: OD 4.0mm
Cord Length: 30cm
Type-C Male to Solderless Terminal Power Cord x1
