• DESCONTINUADO

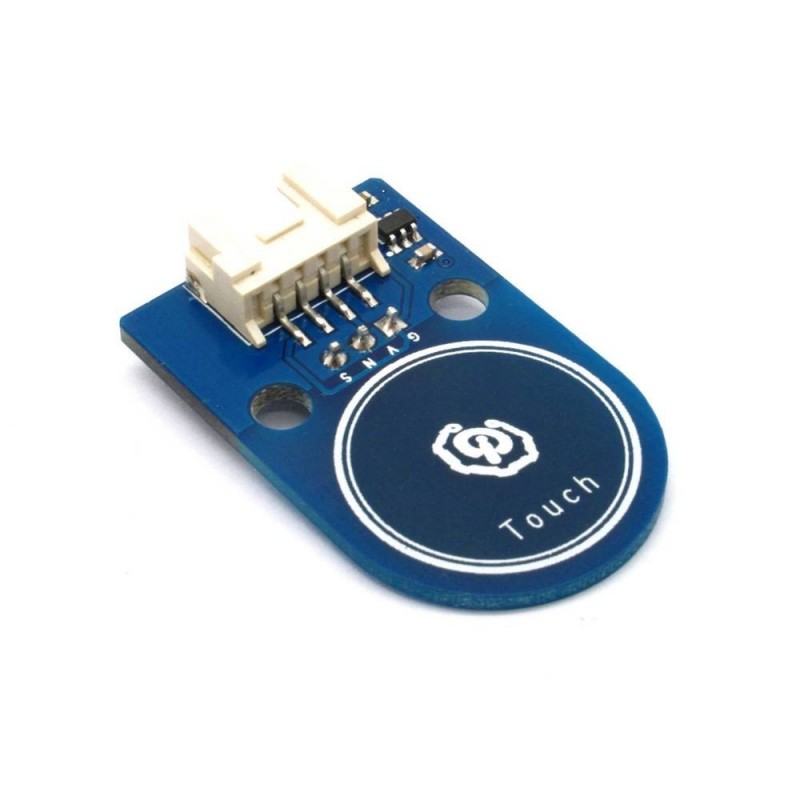

Electronic Brick -Sensor Toque-Botão

:SEN19006
1,87 €

O botão de toque eletrónico é do tamanho de um dedo, que pode ser conectado à porta de I/O da placa principal de controlo, como por exemplo o arduino uno. A partir daí é possível usar esta placa como um botão para por exemplo ligar ou desligar um LED.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

1. Plug and play, easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market. IM120710023_2.jpg

2. With use of M4 standard fixed holes, compatible with M4-standard kits such as Lego and Makeblock. IM120710023_3.jpg

Specifications

PCBsize 38.0mmX24.0mmX1.6mm
Workingvoltage 3.3or5VDC
Operatingvoltage 3.3or5VDC
Compatibleinterfaces 2.543-pininterfaceand4-pinGroveinterface (1)

Note 1: S for digital output port, N for not used pin, V and G for voltage at the common collector and ground respectively. When there is no operation, digital output is VDD; when the button is pressed down, the digital output is 0V.

Electrical Characteristics

Electrical characteristics Min. Typical Max. Unit
Supply voltage 2 3 5.5 VDC
Working current(VCC=5V) - 18 - uA
Digital output voltage(VCC=5V) 0 - 5 V

Hardware


Demo

Connect S port of electronic brick of touch button switch to D2 port of Arduino board, and we will use the following program to read its digital value. When the digital value read is low level, LED lamp will be ON; when the digital value read is high level, LED lamp will be OFF.

 int Button=2;       //connect button to D2
 int LED=13;
 void setup()
 {
 pinMode(LED, OUTPUT);
 pinMode(Button, INPUT);

 }

 void loop()
 {

 if(digitalRead(Button)==HIGH)   //when the digital output value of button is high, turn on the LED.
 {
   digitalWrite(LED, LOW);

 }

 if(digitalRead(Button)==LOW)  //when the digital output value of button is low, turn off the LED.
 {
   digitalWrite(LED, HIGH);
 }

 }

Download

Datasheet for Touch Sensor/Button Brick

Schematic for Touch Sensor/Button Brick

Demo code for Touch Sensor/Button Brick

SEN19006
