Driver p/ 5 sensores capacitivos (To0uch Sensor) - AT42QT1070

: SEN19003
7,80 €

Crie um projeto com múltiplos sensores de toque capacitivos! Alimente a placa com 5V e conecte até 5 sensores que podem ser placas de cobre com um fio! A placa detecta o toque sem recurso a qualquer microcontrolador. Para cada sensor existe uma saída correspondente e por protecção não detecta múltiplos toques, somente um de cada vez!

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

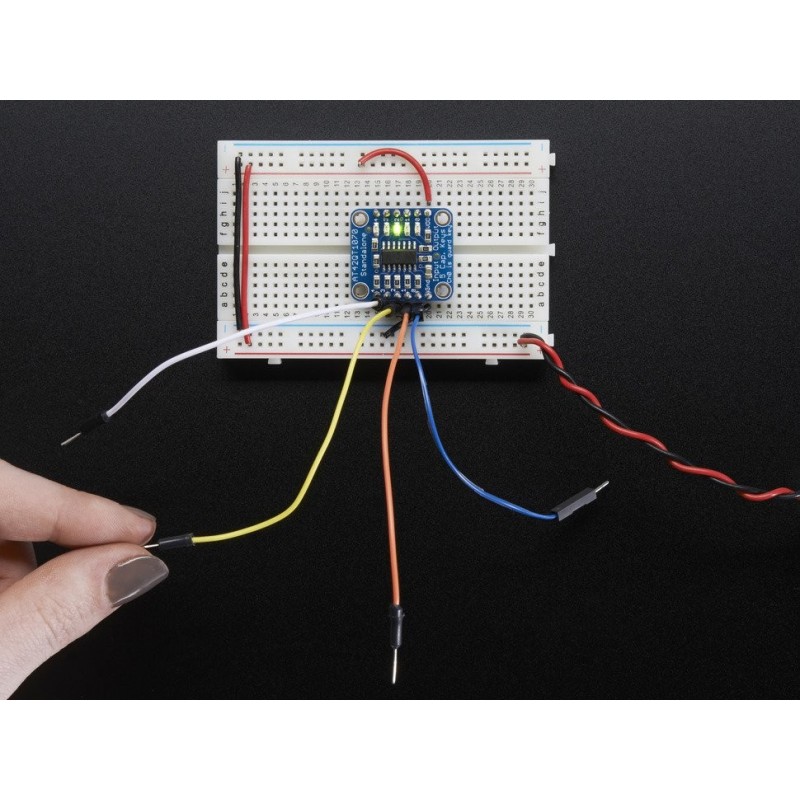

This breakout board is the simplest way to create a project with mutiple capacitive touch sensors. No microcontroller is required here - just power with 1.8 to 5.5VDC and connect up to 5 conductive pads to the 5 left-hand pins. When a capacitive load is detected (e.g. a person touches one of the conductive contacts) the corresponding LED on the right lights up and the output pin goes low. You can use this to update an existing normal-button project where buttons connect to ground when pressed.

Note that only one contact will be detected at once (this is to protect against having a hand brush against two or more contacts at once.

Comes with a fully assembled board, and a stick of 0.1" header so you can plug it into a breadboard. For contacts, we suggest using copper foil, then solder a wire that connects from the foil pad to the breakout.

The datasheet has many details on sensitivity, power usage, etc. - note that this board uses the chip in 'standalone' mode only, it cannot be used in I2C mode.

Standalone 5-Pad Capacitive Touch Sensor Breakout - AT42QT1070 (11:38)
