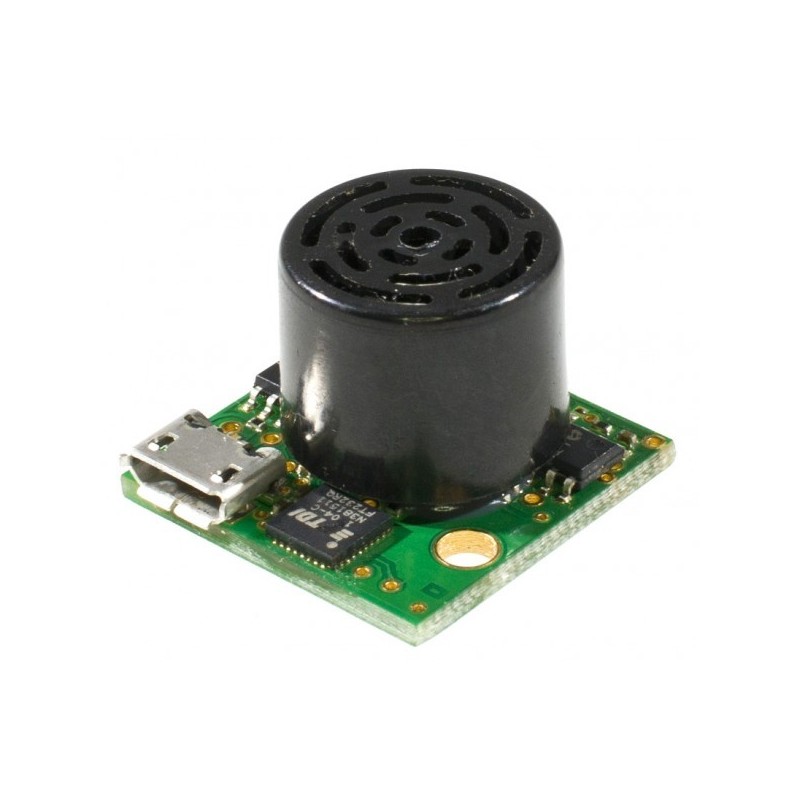

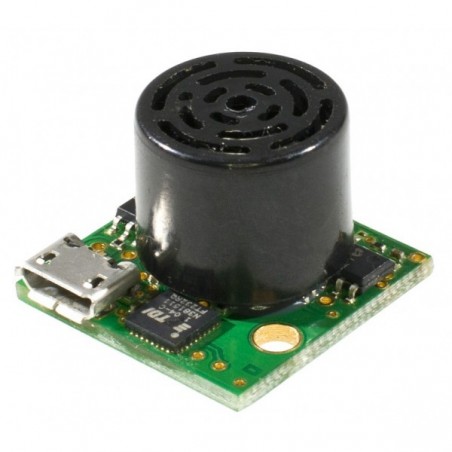

Sensor de proximidade USB - ProxSonar - EZ (MB1414)
  • Sensor de proximidade USB - ProxSonar - EZ (MB1414)
  • Sensor de proximidade USB - ProxSonar - EZ (MB1414)
  • Sensor de proximidade USB - ProxSonar - EZ (MB1414)

Sensor de proximidade USB - ProxSonar - EZ (MB1414)

: SEN10011
48,62 €

Interface USB , Operação Multi-sensor Automatica, sensor de pessoas, 3cm de resolução, alcance maximo: 318 cm,  zona de deteção 152 cm

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction
The USB-ProxSonar-EZ1 has a detection zone of ~5 feet and will allow for 8+ simultaneous sensors.
The USB-ProxSonar-EZ ultrasonic proximity sensors feature an easy to use USB interface that connects directly to a computer with a standard Micro-B USB cable. The USB?ProxSonar?EZ sensors detect objects in a calibrated detection zone and report when an object (such as a person) enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ detection zone.


Specification
  • USB interface
  • ~2.5 second target acquire time
  • ~1.5 second target release time
  • Automatic multi-sensor operation
  • People sensor
  • Resolution of 3 cm
  • Maximum Range of 318 cm
  • Detection zone range of 152 cm
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 15cm
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Longest range detection zone
Shipping List
  • USB-ProxSonar-EZ(MB1414)                  (1 unit)

Documents
SEN10011
