Analisador de Som

:SEN05020
22,85 €
preço com IVA incluído

Basea-se no filtro equalizador gráfico MSGEQ7 que irá dar ouvidos ao Arduino. O som é dividido em 7 bandas de frequência podendo ser obtido o nível de pico de cada banda.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste ou outro produto não hesite em nos contactar



This module features the MSGEQ7 graphic equalizer display filter.It will give your arduino ears. Sound is broken down into seven frequency bands and the peak level for each band can be read. The seven frequencies measured are as follows: 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.25kHz and 16kHz.

This module can be used to create sound visualizers, detect patterns in music or add sound activation to your microcontroller.

Applications
  • Detect patterns in music - make a robot dance!
  • Process the values read, then display on LEDs as a soothing visualization which changes with the music.
  • Pimp the interior lighting in your car so it pumps to the beat and twinkles to the high hats.
  • Create / listen for fingerprints in certain sounds - voice analysis.



Specification

  • Voltage:5V
  • Size:30x20mm
  • Weight: 5 grams

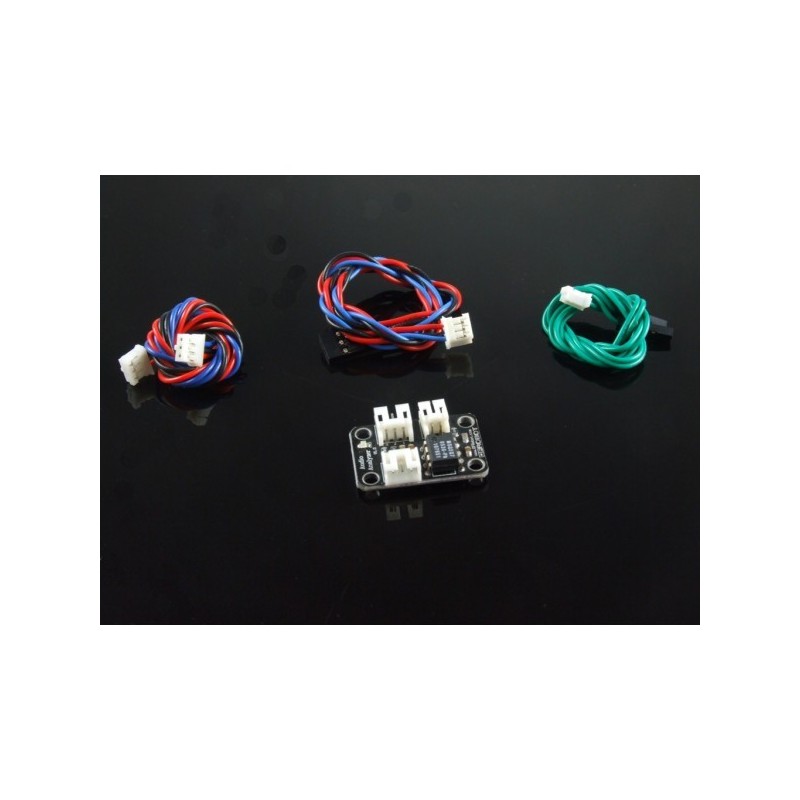

Shipping List
  • Audio Analyzer Module(1 Unit)
  • Analog Cable(2 units)
  • Digital Cable(1 unit)



Documents



SEN05020
