Mini Player MP3 p/ Arduino - compatível c/ DFPlayer

: ARD03172
4,70 €
preço com IVA incluído

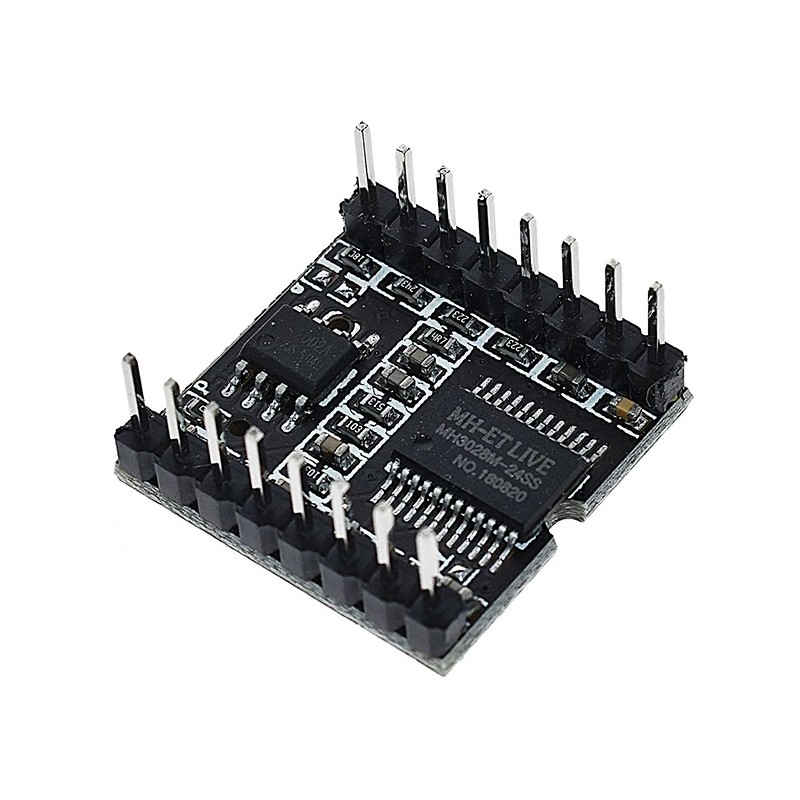

Este Mini MP3 player é 100% compatível com o DFplayer. É um módulo MP3 pequeno e de baixo custo que poderá usar para ler ficheiros MP3 a partir de um cartão de memória e reproduzir directamente para umas colunas amplificadas.

O controlo das músicas ou ficheiros audio a reproduzir é feito através de comando pela porta série ou mediante IOs.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

This fully compatible with DFPlayer Mini is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

It perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

Build a talking Alarm Clock synced to Google calendars

Hardware Components for the project on the video:
Mini MP3 Player For Arduino


APPLICATIONS

  • Car navigation voice broadcast;
  • Road transport inspectors, toll stations voice prompts;
  • Railway station, bus safety inspection voice prompts;
  • Electricity, communications, financial business hall voice prompts;
  • Vehicle into and out of the channel verify that the voice prompts;
  • The public security border control channel voice prompts;
  • Multi-channel voice alarm or equipment operating guide voice;
  • The electric tourist car safe driving voice notices;
  • Electromechanical equipment failure alarm;
  • Fire alarm voice prompts;
  • The automatic broadcast equipment, regular broadcast.



SPECIFICATION

  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
  • Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
  • 30 level adjustable volume, 6 -level EQ adjustable



SHIPPING LIST

  • Mini MP3 Player x1



ARD03172
