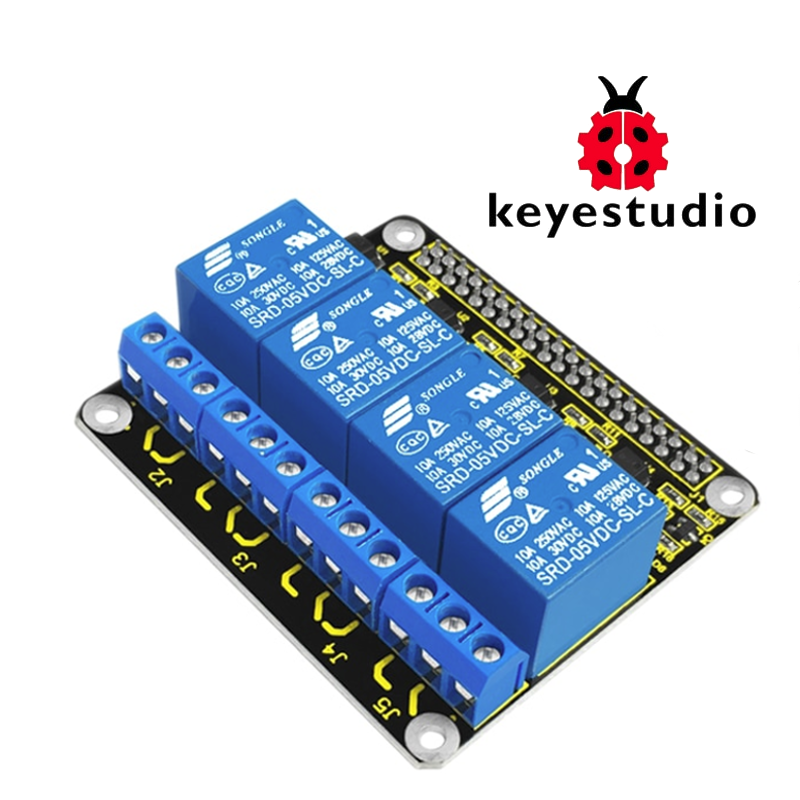

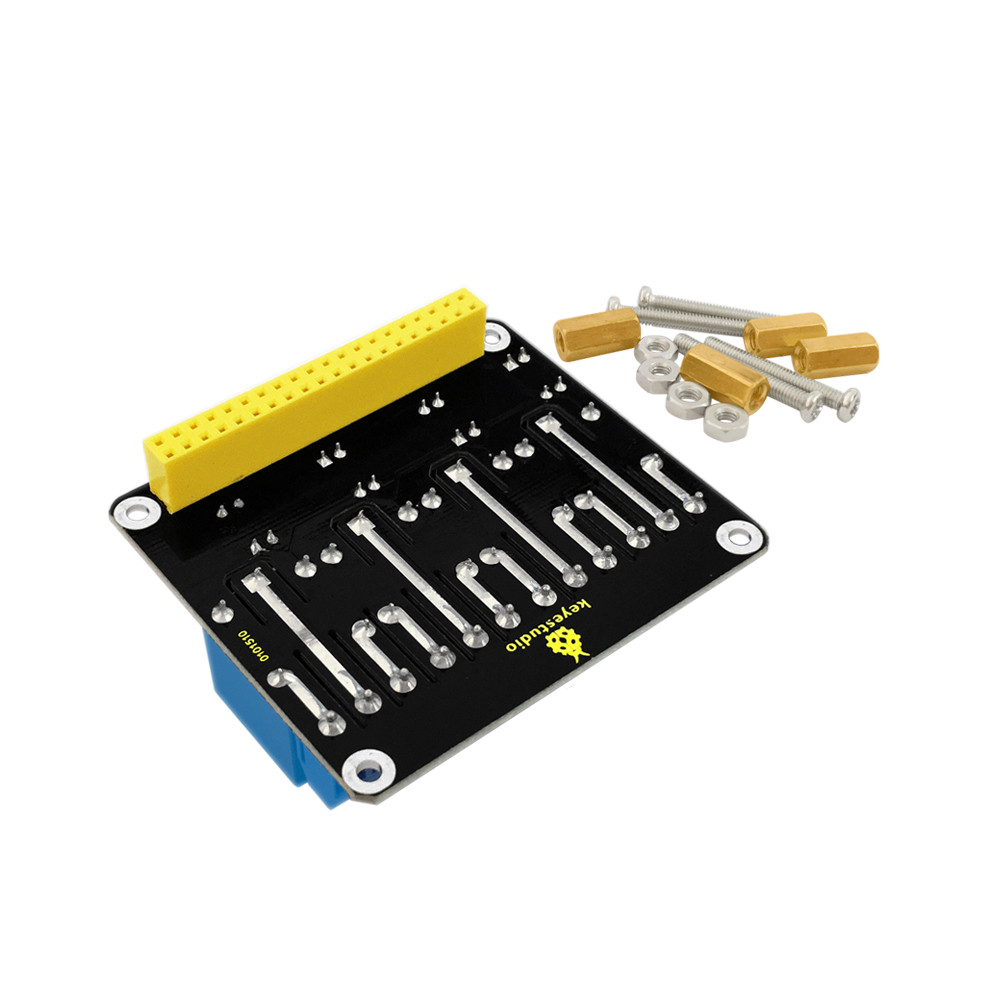

HAT Relés 4 canais 5V para Raspberry Pi - Keyestudio KS0212

:PCO01162
8,50 €
preço com IVA incluído

Neste Shield, todos os relés são isolados no PCB. Todos os canais podem controlar até 24 Vdc ou 250 Vac em 10 A. Este Shield permite que controles componentes como luzes e motores com a tua Raspberry Pi 3. Este HAT tem também um LED que indica o estado dos Relés.

Se quiseres saber mais sobre este produto, consulta a Wiki Page

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

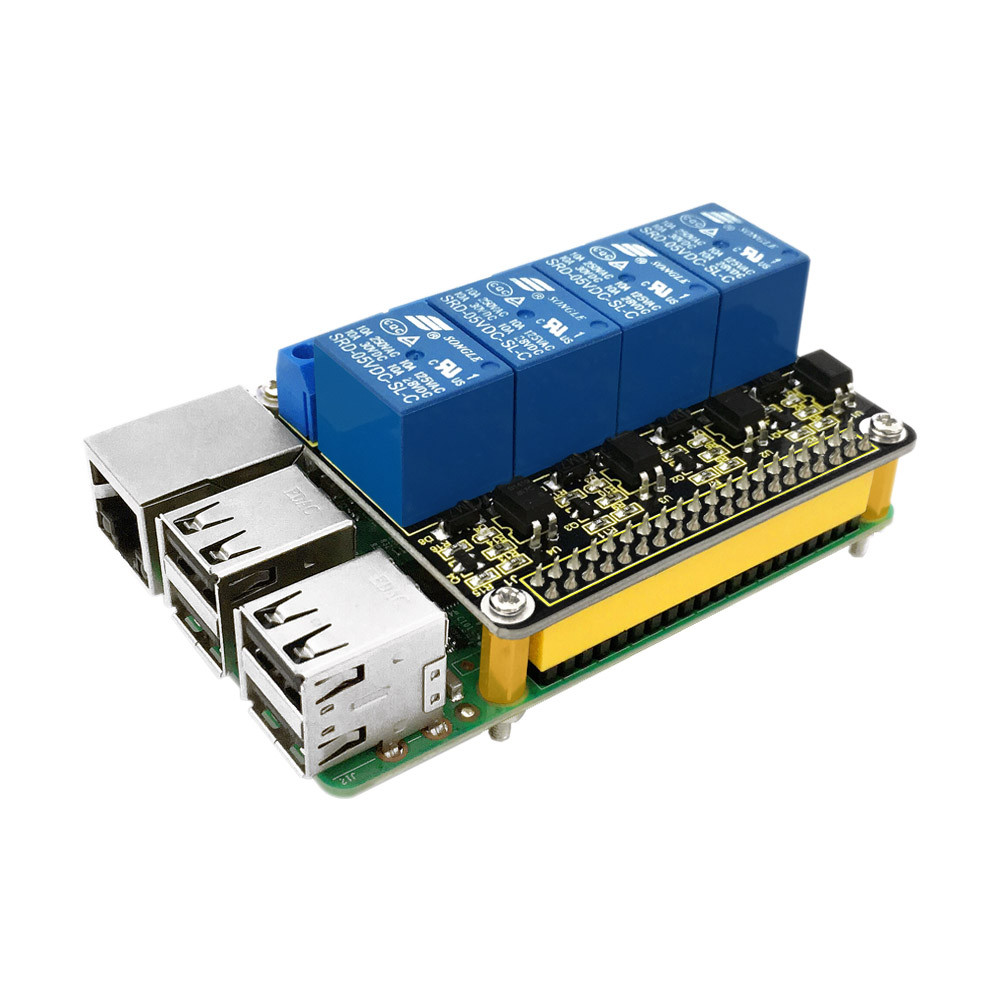

This shield uses SONGLE relay, providing 4-channel input and output. The relays are isolated in the PCB. All the channels can control up to 24V DC or 250V AC on 10 A. It allows you to control high power components like lights and motors via Raspberry Pi 3. Just plug it directly into your pi with 5 V. You will find a LED indicates the status of the relays.
We will provide installation package, source code and quickstart guide PDF. We will teach you step by step, so don’t worry!

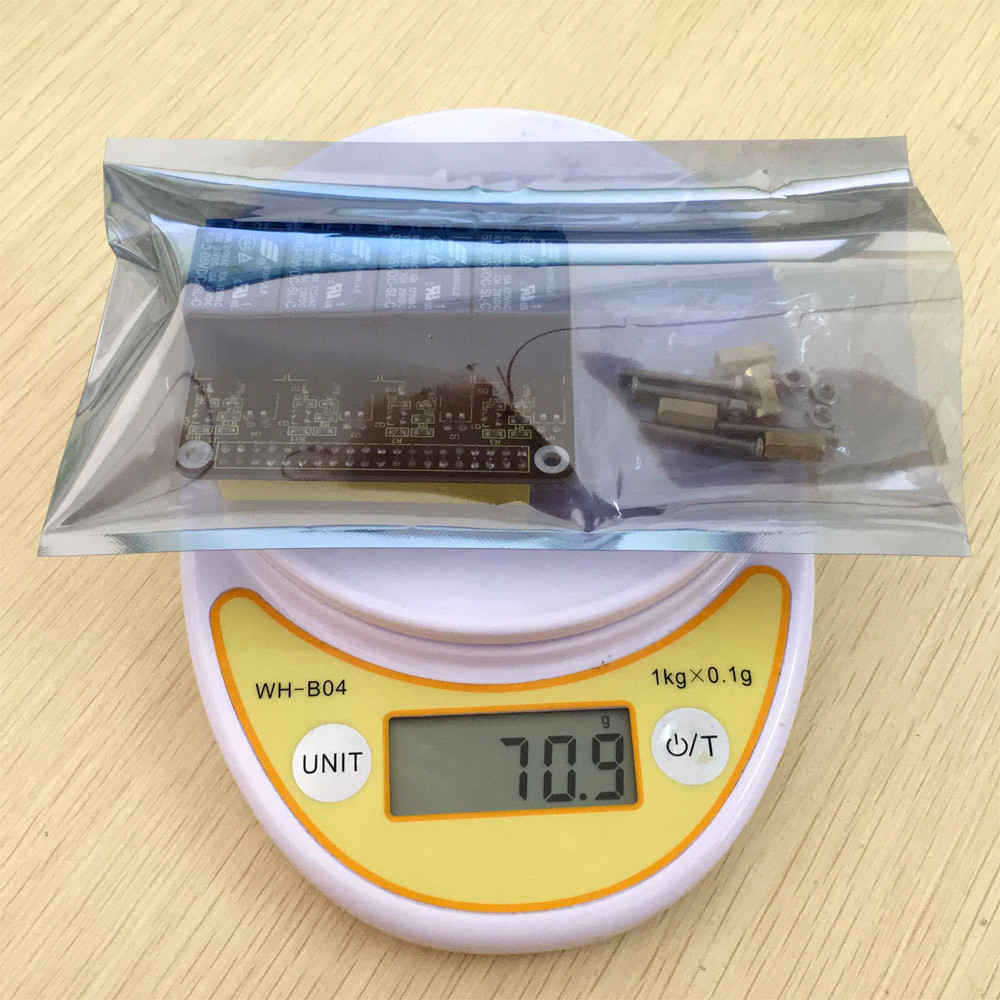

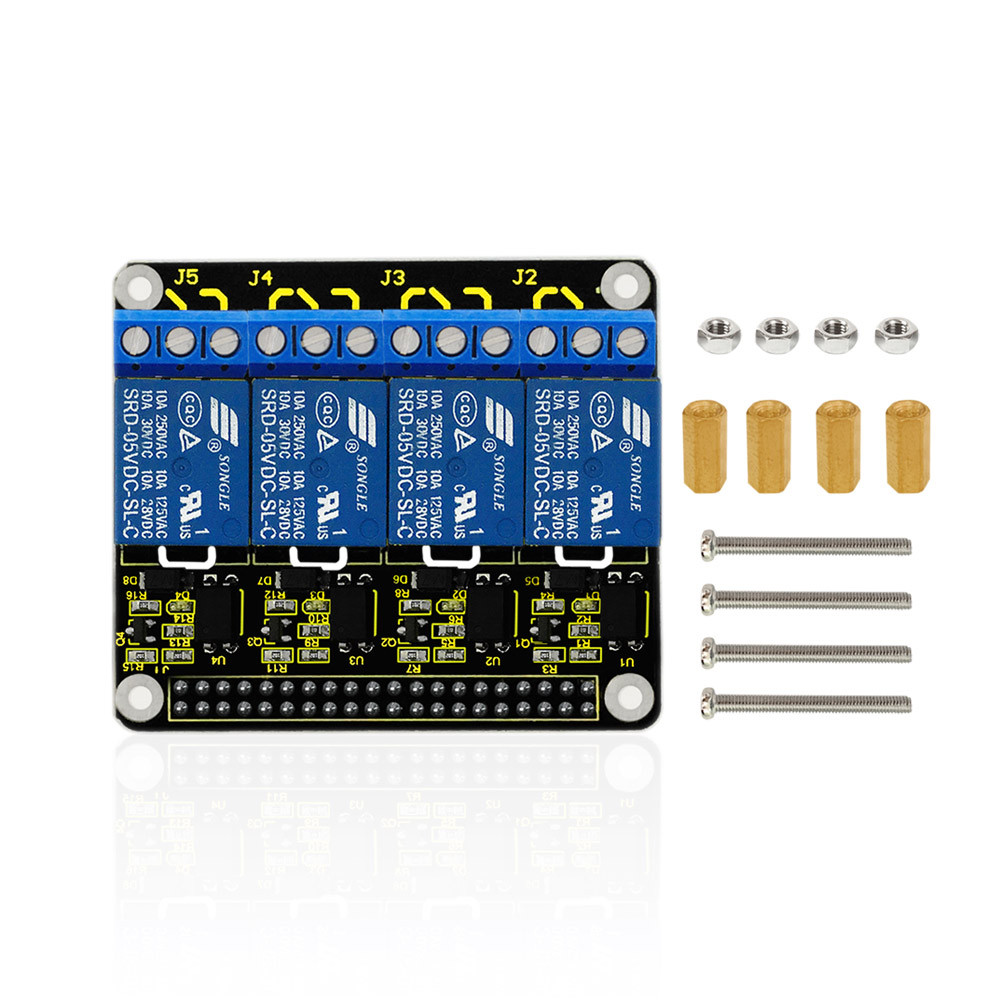

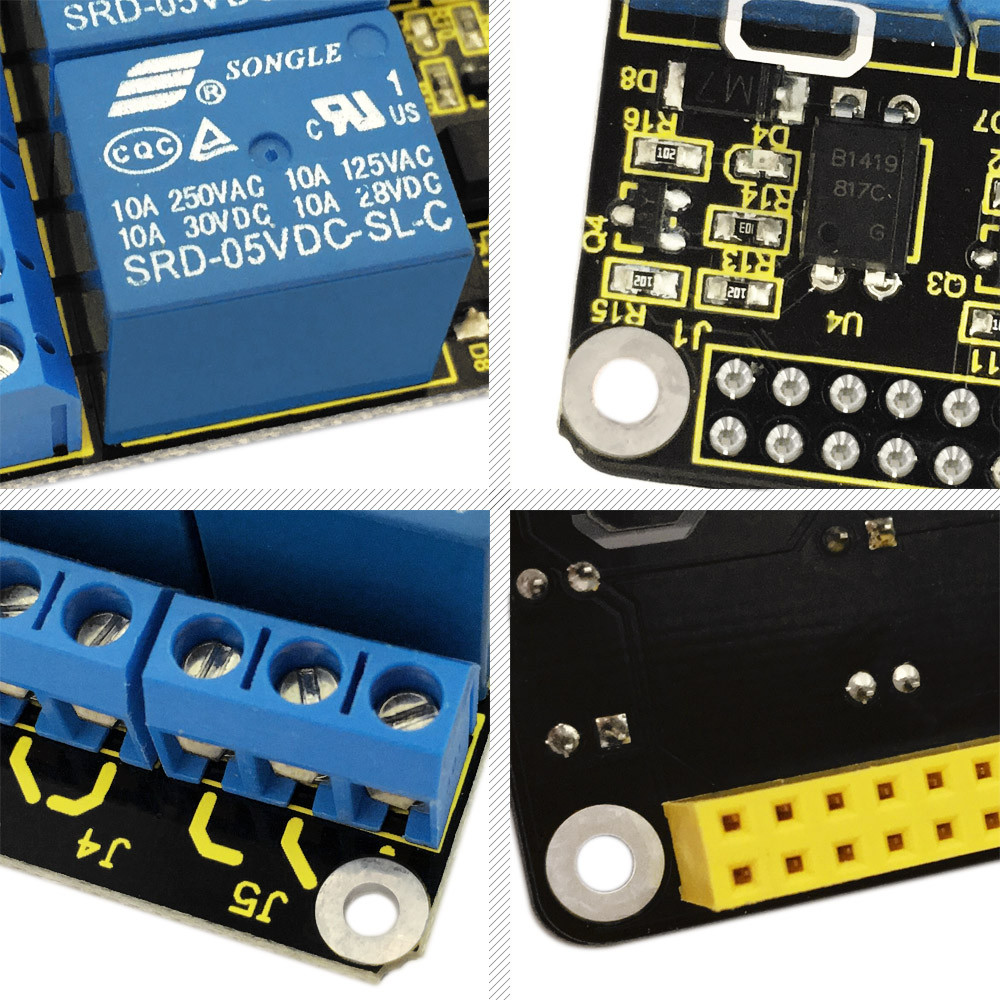

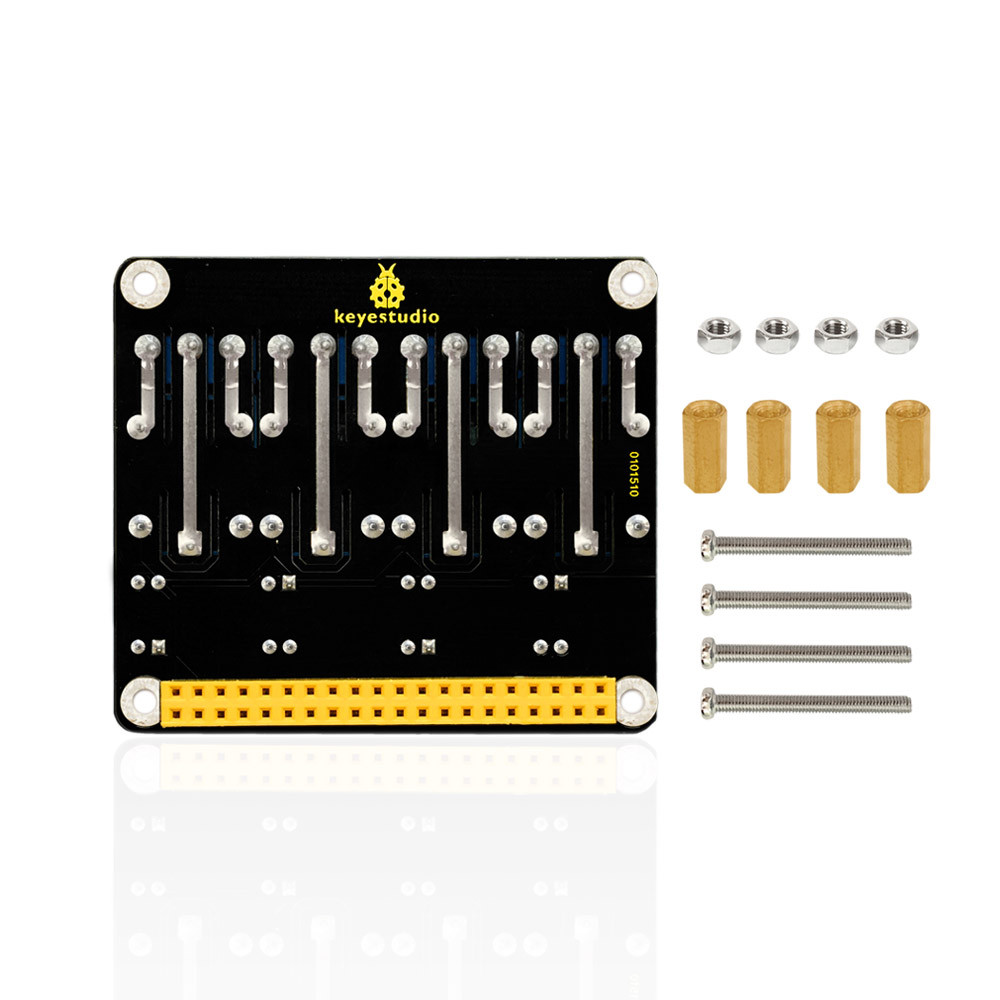

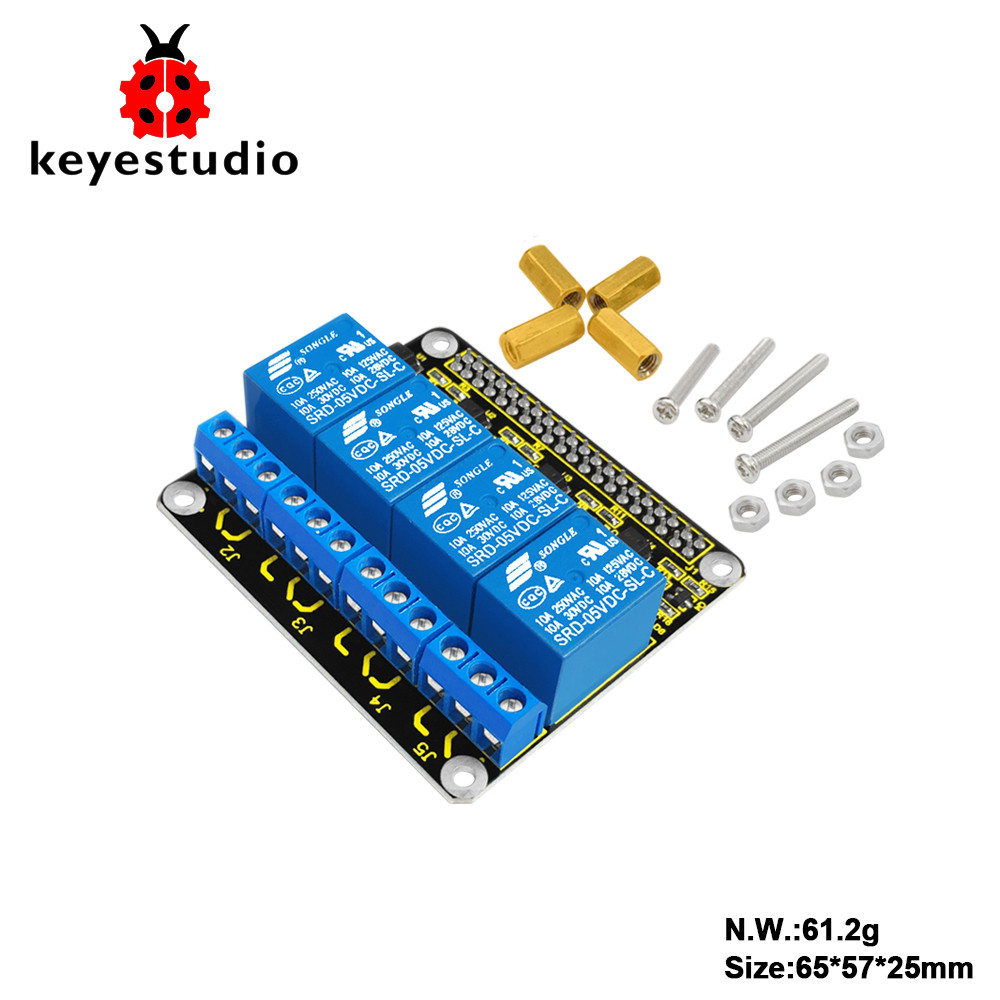

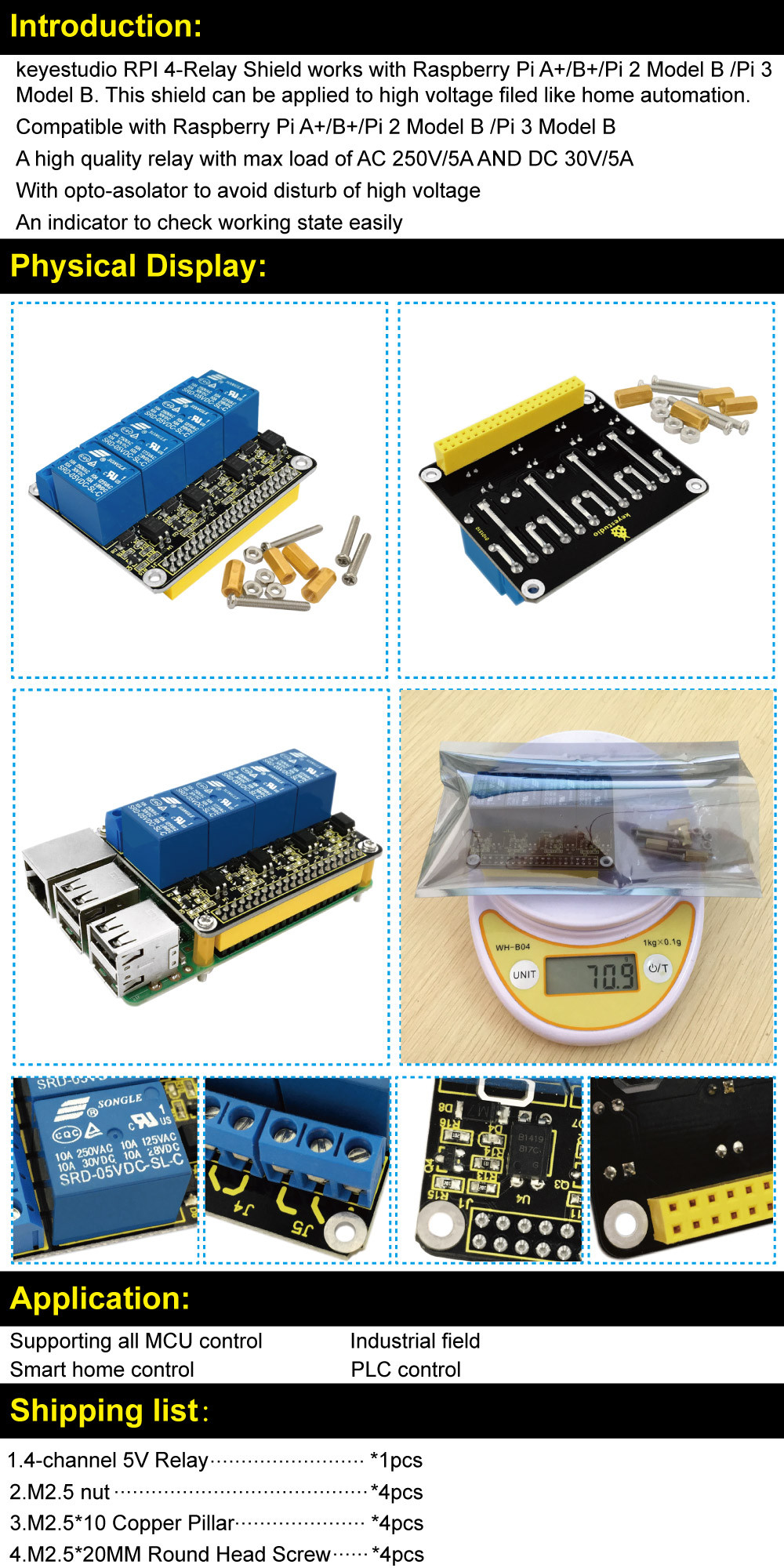

KS0212 (5)KS0212 (1)KS0212 (2)KS0212 (3)KS0212 (6)KS0212 (7)KS0212 (8)KS0212 (9)

Documents

Wiki Page

PCO01162
