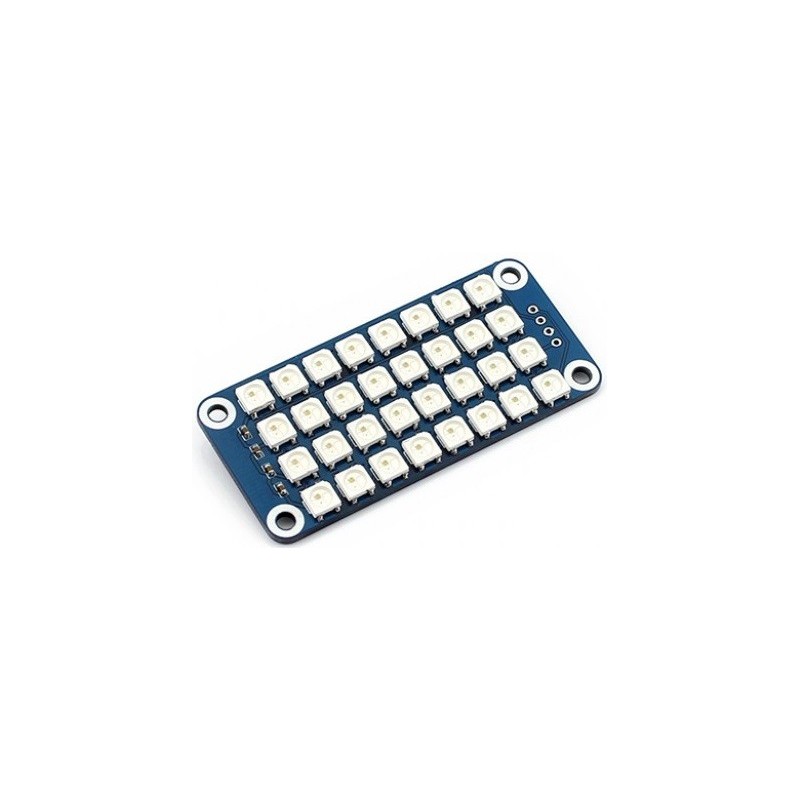

HAT - Matriz de LEDs RGB para Raspberry Pi - WS

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

• Supports any revision of Raspberry Pi (directly-pluggable)
• Onboard 4 × 8 RGB LED (WS2812B)
• Control pin is configurable via jumpers (0Ω resistor)
• Break out control pins, easy for working with other MCUs
• Comes with development resources and manual (examples in Python and Web control)

Specifications

• Operating voltage: 5V
• Brightness: adjustable 256 levels
• Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors)
• Data rate: 800Kbps(typ)
• Dimension: 65mm × 30.2mm
• Mounting hole size: 3.0mm

How to Use

In the case of working with a MCU:

• 5V ↔ 5V power
• GND ↔ GND
• DIN ↔ Signal input
• DOUT ↔ Signal output (optional)

Demo

Dimensions

Development Resources

Wiki
