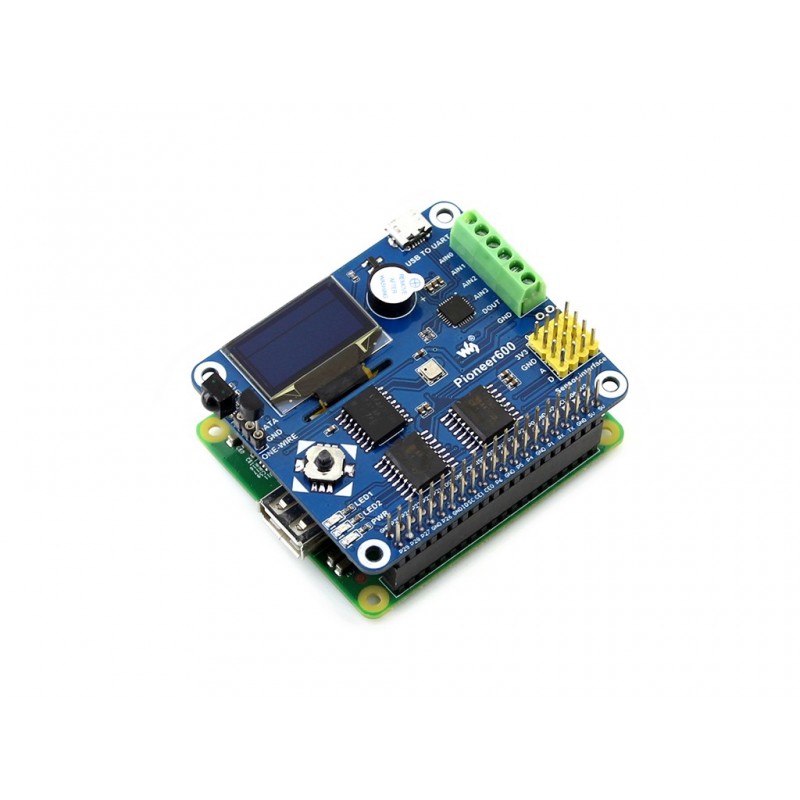

Pioneer600, Placa de Expansão para Raspberry Pi

Pioneer600 Features

• Supports Raspberry Pi A+/B+/2B/3B
• <Standard I/O> dual LED, joystick, buzzer, the basic components
• <USB TO UART> CP2102, control the Pi through serial terminal
• <Display> 0.96inch OLED, big world in the little screen
• <RTC> DS3231, high precision, backup battery holder is also available
• <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
• <GPIO Expansion> PCF8574, more GPIO, more possibility
• <IR Control> LFN0038K, Raspberry Pi remote control comes true
• <Pressure Sensor> BMP180, measuring air pressure and temperature
• <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
• <Sensor Interface> for connecting various sensors

What's on the Pioneer600

1. Raspberry Pi GPIO interface : for connecting Raspberry Pi
2. USB TO UART : control the Pi through serial terminal
3. AD/DA IO interface : screw terminal
4. 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
5. Sensor interface : for connecting various sensors
6. 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
7. Buzzer
8. CP2102 : USB TO UART converter
9. PCF8591 : 8-bit AD/DA converter, I2C interface
10. BMP180 : pressure sensor, I2C interface
11. PCF8574 : I/O expansion chip, I2C interface
12. DS3231 : high precision RTC chip, I2C interface
13. Power indicator
14. User LED
15. Joystick
16. LFN0038K IR receiver

Photos

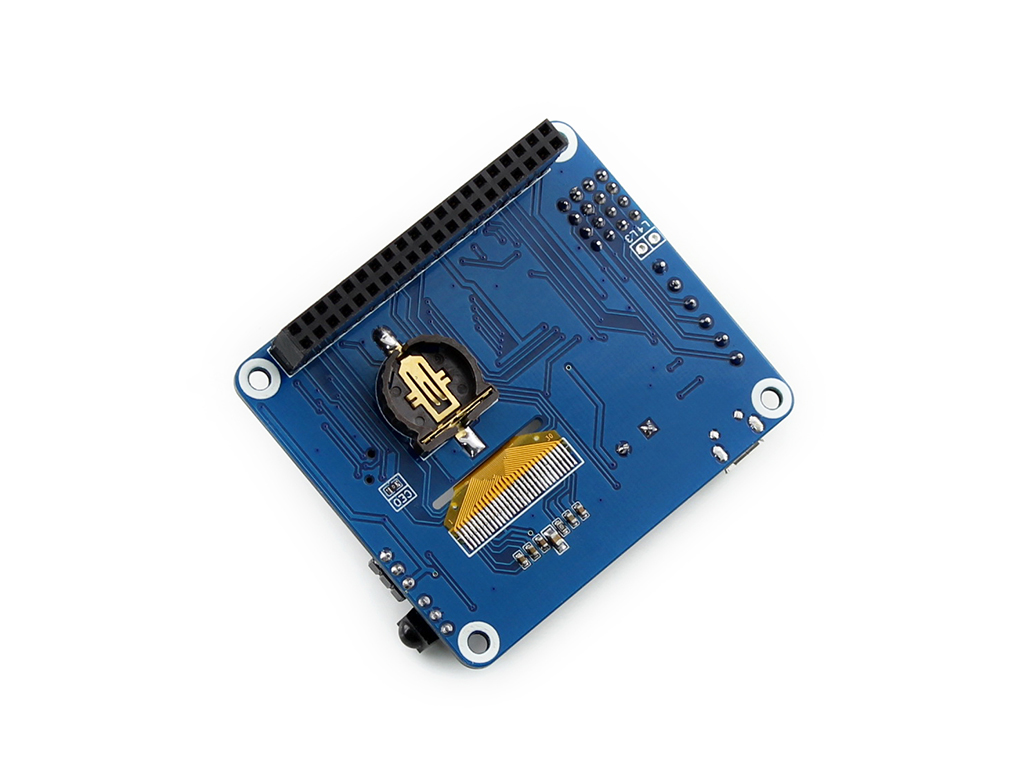

Pioneer600 Raspberry Pi Expansion Board back view

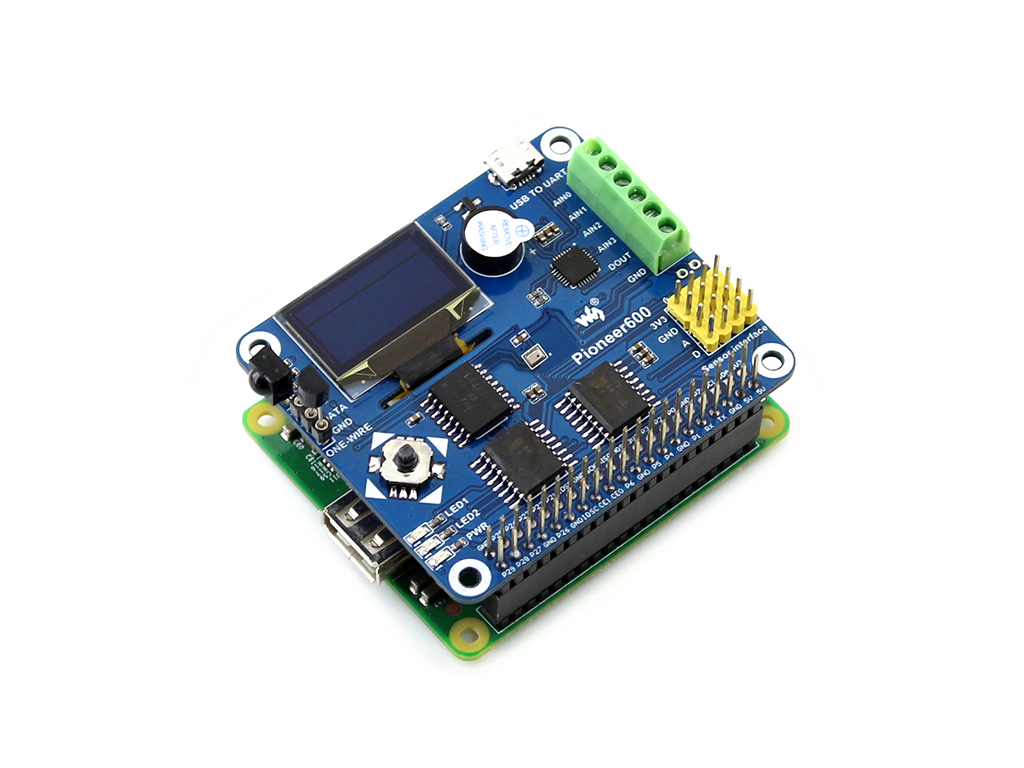

Pioneer600 connecting with Raspberry Pi A+

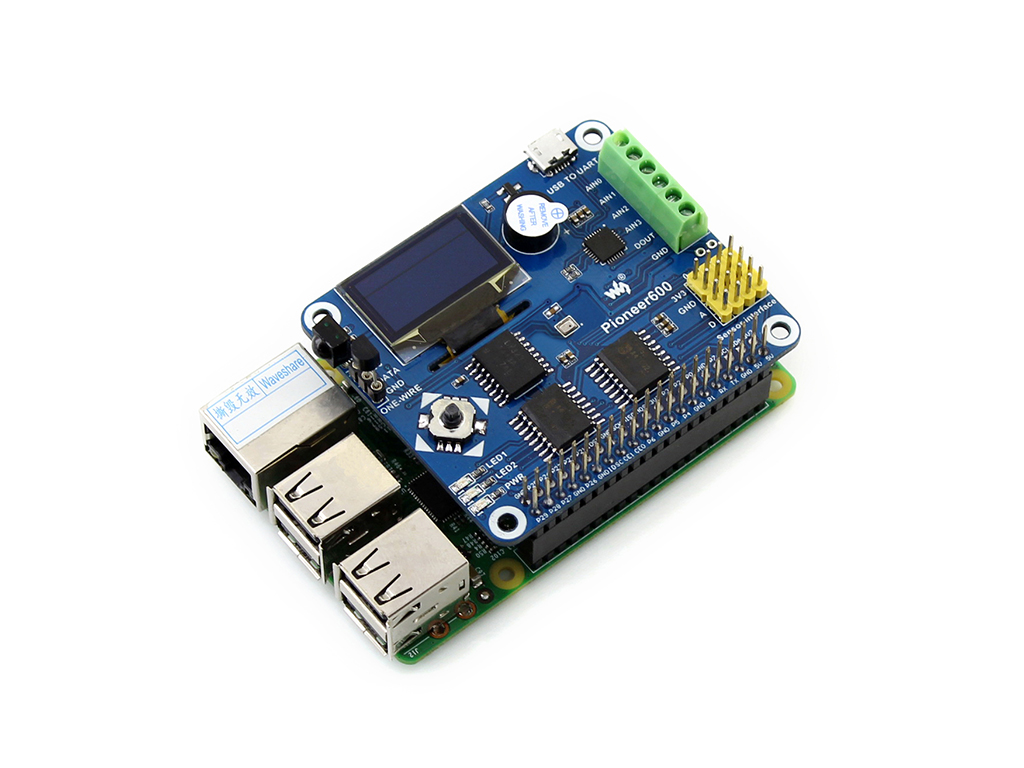

Pioneer600 connecting with Raspberry Pi 2/3 B

Pioneer600 connecting with sensors

Package Content

Weight: 0.077 kg

1. Pioneer600 x 1
2. DS18B20 ×1
3. USB Type A Plug to Micro B Plug Cable x 1
4. RPi screws pack (2pcs) x 1

1234

Examples

Development Resources

• User manual
• Schematic
• Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
• Raspberry Pi tutorials
• Raspbian (configured system image)

Wiki : www.waveshare.com/wiki/Pioneer600

Note : the Pi and sensors are NOT included.
