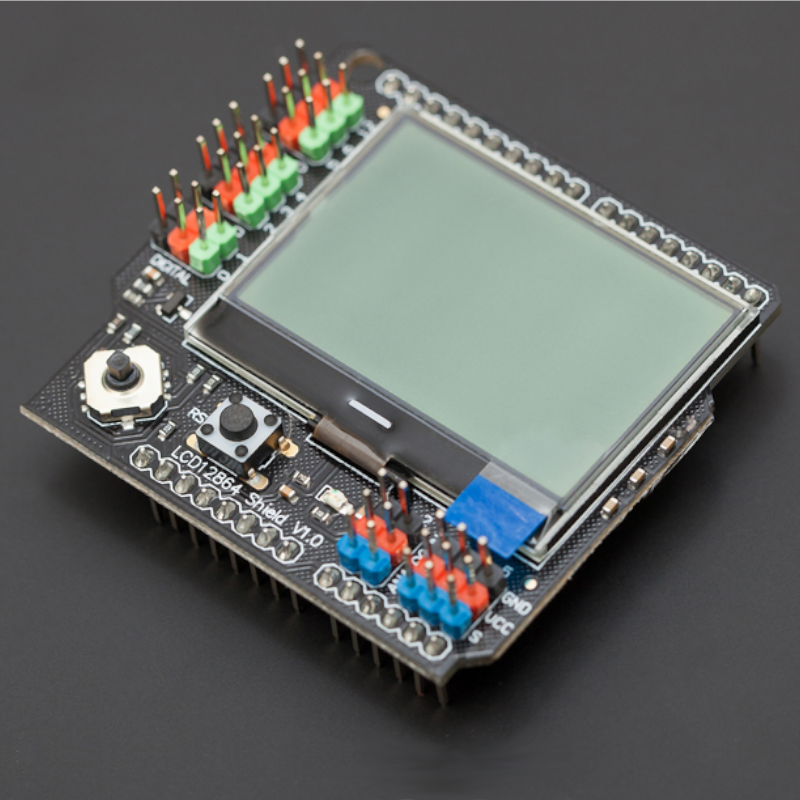

LCD12864 Shield para Arduino

17,44 €

Este Shield para Arduino da DFRobot conta já com um Joystick de 5 botões e podes conecta-lo diretamente na placa Arduino sem necessidade de soldas ou fios.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.


Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.


This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.


LCD12864 Shield for Arduino - DFRobot



Project 1: Environmental Monitoring System Based on OBLOQ-IoT Module
This product is mainly applied in electronic laboratory to monitor and control indicators such as temperature, humidity, light and dust, and timely upload them to the cloud data space to achieve remote monitoring and control of dehumidifier, air purifier, exhaust fan and dimmable light, etc. in the laboratory.

Project 2: Make Your Own Arduino Weather Station

This durable arduino weather station kit includes an anemometer, wind vane, rain bucket and DH11 temperature and humidity sensor. It can transmit data via serial or RF interfaces.



  1. Power supply: 3.3V

  2. Pin used: D7, D8, D9, D10, D11, D13, A0

  3. Reset button

  4. 5 degree joystick (using Arduino Analog Pin 0)

  5. Backlit control (using Arduino Digital Pin 7)

  6. Extra 5 Analog pins & 8 Digital pins

  7. Size:60x55x20mm(2.36x2.16x0.79")




Shipping List

  1. LCD12864 Shield  x1
