Servo 270° 15KG c/ feedback analógico - DSS-M15S

:MOT03039
20,00 €
preço com IVA incluído

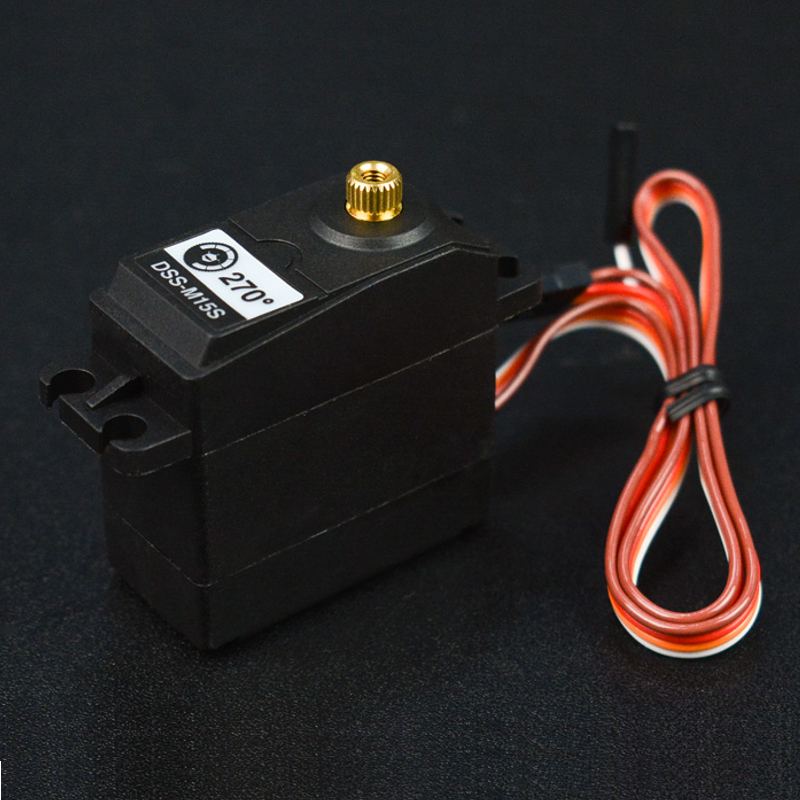

Servo 270° 15KG com feedback analógico. Com um quarto fio de cor branca, este servo pode obter valores analógicos e assim consegues validar a posição do teu servo. O sinal analógico opera entre 0V até 3.3V.

Se quiseres saber mais sobre este produto, consulta a Wiki Page.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

DSS-M15S servos have been well received by customers in these years. It has extremely wide angle range control, huge load capacity and excellent quality. This DSS-M15S with analog feedback has broken its internal potentiometer signal. This is an analog signal with 0~3.3V feedback. You can connect it to MCU to realize close-loop feedback control.
DSS-M15S 270° Metal servo with feedback is compatible with Arduino Servo library. You can drive it with Arduino Board and read the angle value from analog side.



Angle-Analog Value

Dimension

How to control DSS-M15S servos with Analog Feedback - DFROBOT




Specification

Electronic specifications

  1. Operating voltage: 4.8-7.2V

6V test environment

  1. Operating speed (no load): 0.18 sec/60 degrees
  2. Resting current: 80mA
  3. Locking torque: 13.5KG*cm
  4. Stall current: 1.8A
  5. Standby current: 4mA

7V test environment

  1. Operating speed (no load): 0.16sec/60 degrees
  2. Resting current: 100mA
  3. Locking torque: 15KG*cm
  4. Stall current: 2A
  5. Standby current: 5mA

Mechanical specifications

  1. Gear material: metal gear
  2. Operating angle: 270 degrees
  3. Wiring gauge: 28PVC
  4. Data line length: 320mm
  5. Gear bracket spline: 25T/5.80
  6. Gear ratio: 310:1
  7. Size: 54.5*20*47.5mm

Control specifications

  1. Feedback signal: 0-3.3V
  2. Control signal: RC PWM
  3. Pulse range: 500-2500 us
  4. Median signal value: 1500us
  5. Clockwise rotation: <1500us
  6. Control frequency: 50-330Hz (Arduion compatible)



Documents



Shipping List

  1. DSS-M15S 270° servo with analog feedback x1
  2. Crossed horn x1
  3. Long straight horn x1
  4. Short straight horn x1
  5. M2*8 self-tapping screws and gasket x5
  6. M3*6 screw x1
