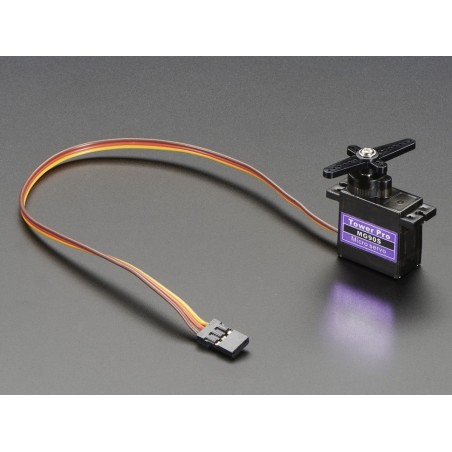

MicroServo MG90S c/ engrenagem metálica 1,8Kg

:MOT03025
10,90 €
6,90 € Poupe 4,00 €
preço com IVA incluído

Este pequeno servo com 180º de rotação é capaz de mover cargas até 2.2Kg afastadas 1cm do seu eixo, quando alimentado a 6Vdc.

É o servo ideal para pequenas aplicações robóticas.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



  • Description

    You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino, our 16-channel Servo Driver, or by just wiring up with the Servo library. Comes with a few horns and hardware.

    Please note, this servo will 'hold' the position even when no signal is sent!

    To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.



  • Technical Details


    • Size : 22.8 x 12.2 x 28.5 mm
    • Voltage : 4.8V to 6V DC
    • Weight: 13.4 grams
    • Speed : 0.1 sec/60degrees (at 4.8V), 0.08 sec/60 degrees (at 6.0V)
    • Stall Torque : At 4.8V: 1.8 kg-cm / 25 oz-in. At 6.0V: 2.2 kg-cm / 30.5 oz-in
    • Spline Count: 20
MOT03025
