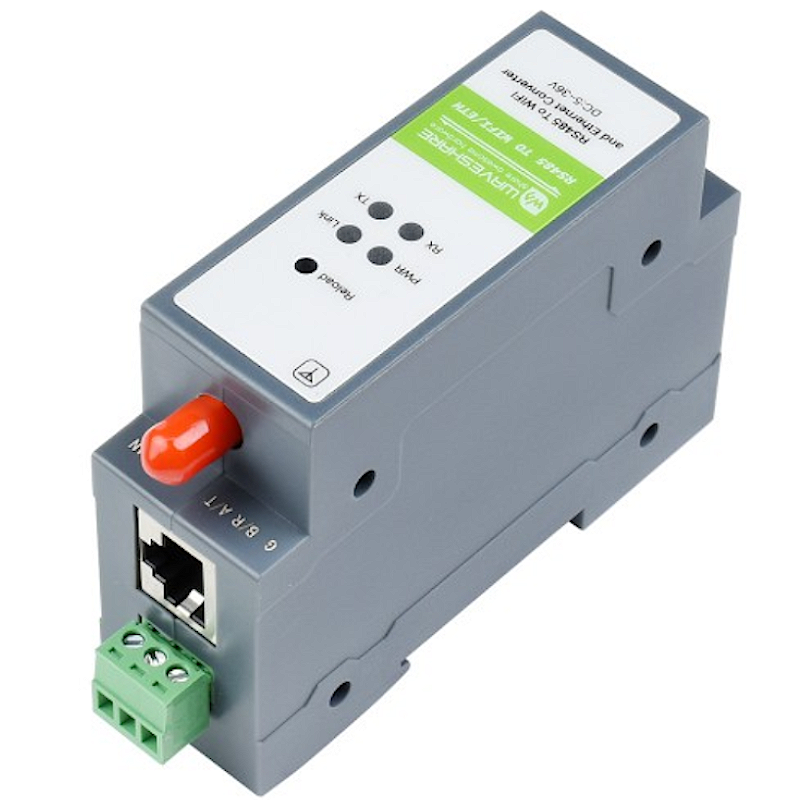

O RS485 para WiFi/Ethernet da Waveshare é a forma mais simples e eficaz de ligar equipamentos industriais à rede moderna. Este módulo converte sinais RS485 em WiFi ou Ethernet, permitindo comunicação transparente ou via protocolos como Modbus, MQTT ou HTTP. Compacto e robusto, pode ser facilmente montado em calha DIN, tornando-se perfeito para integração em sistemas existentes.
Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
This RS485 device data acquisitor / IoT gateway is designed for an industrial environment. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway and RS485 to HTTPD Client.
With RS485, WiFi and Ethernet ports, the module has functions such as serial to WiFi, serial to Ethernet, Ethernet to WiFi and many others. With screw terminals for power input, it supports a 5~36V power supply. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring. With Industrial DIN Rail Mount Support, it is easy to install, has a compact size, and is cost-effective.
A power supply is not included however we stock the recommended 12V 2A DIN-rail PSU here.
Rail-Mount Serial Server, RS485 to WiFi/Ethernet Module, Modbus MQTT Gateway
Offers an RS485 device data acquisitor / IoT gateway
Designed for industrial environment
Socket Distribution Protocol: In the transparent transmission mode, the serial device can send data to the specified socket link; the network data of each Socket is sent to the serial device through the serial port.
Multi Configuration Methods: supports multi-configuration methods such as hosts, web browsers and serial port configuration
Hardware Protection: ESD Level 4 Static Protection, Level 3 Surge Protection and EFT Level 3 Electrical Fast Transient/Burst Protection
Suitable for applications like data acquisition and IoT gateway
Power Supply: 5 ~ 36 V DC
DIN Rail Mount for easy installation
OUTLINE |
|
Communication interface |
RS485, screw terminal |
Power supply |
5 ~ 36V DC, screw terminal |
Case |
PC + ABS, V0 flame retardant grade |
Dimensions |
L × W × H: 109.66 × 28 × 64.71 mm |
COMMUNICATION |
|
Ethernet |
10 / 100M auto-negotiation RJ45 connector |
WIFI |
802.11b/g/n compliant |
Serial port |
RS485 interface (Anti-surge, Lightningproof, Over-current protection) |
WIRELESS SPECIFICATION |
|
Frequency Band |
2.412 ~ 2.484 GHz |
Wireless network |
Station / AP / AP+Station Mode |
Security mechanism |
WPA-PSK / WPA2-PSK |
Encryption type |
TKIP / AES |
Transmitting power |
802.11b: +19dBm (Max.@11Mbps) |
|
802.11g: +18dBm (Max.@54Mbps) |
|
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7) |
Receiving sensitivity |
802.11b: -89dBm (@11Mbps) |
|
802.11g: -81dBm (@54Mbps) |
|
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7) |
SERIAL SPECIFICATION |
|
Baud rate |
300 ~ 460800 bps |
Parity bit |
none, odd, even, mark, space |
Data bit |
5 ~ 9 bits |
Flow control |
N/A |
SOFTWARE |
|
Protocol |
TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT |
Configuration |
host, web browser, serial AT command |
Communication method |
TCP/IP direct communication, VCOM |
Operating mode |
Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU |
ENVIRONMENT REQUIREMENT |
|
Operating temperature |
-40℃ ~ 85℃ |
Storage temperature |
-45℃ ~ 125℃ |
Humidity range |
5% ~ 95% relative humidity |
Weight: 0.157 kg
RS485 TO WIFI/ETH x1
Antenna x1
