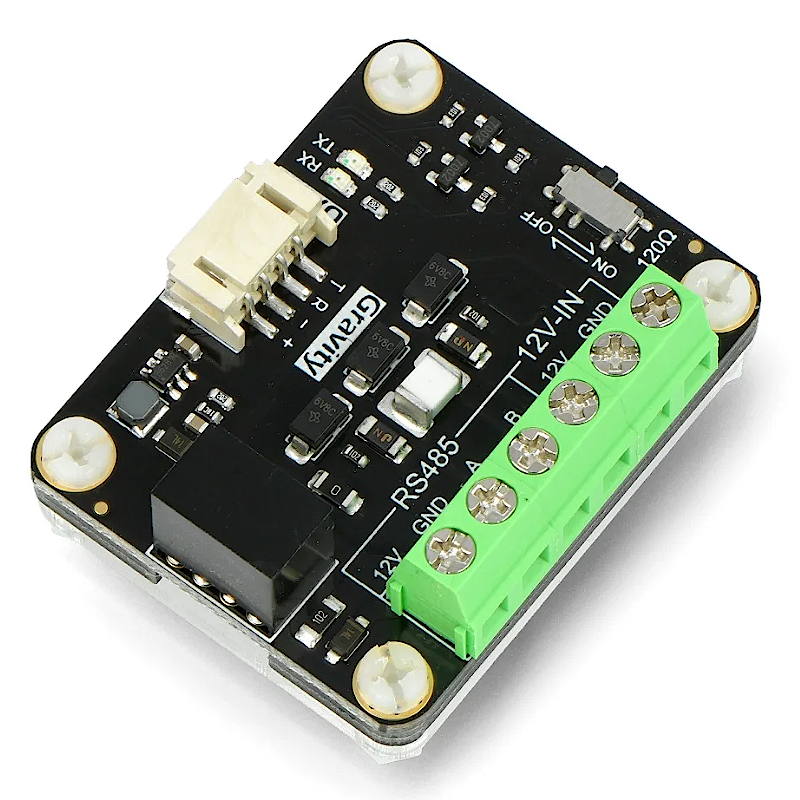

Conversor de Sinal Ativo e Isolado RS485 para UART 3.3~5V - DFRobot DFR0845

:COM03030
23,80 €
preço com IVA incluído

Este módulo conversor de sinal RS485 para UART ativo e isolado é fornecido com circuitos de proteção, tais como isolamento de potência e TVS. Compatível com a maioria dos controladores principais, este conversor é bastante ráppido, estável e fiável no que toca a a comunicação, tem também elevada segurança, etc., e pode ser aplicado a vários sensores industriais, equipamento de controlo industrial ou aplicações que requerem conversão de sinal RS485.

Se quiseres saber mais sobre este produto e ter acesso a códigos de exemplo, consulta a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS.

Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety, etc.

It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.


Connect with Arduino Board




Connection Diagram (Use serial port to read sensor data)




Board Overview



Features

  1. Fast communication speed

  2. Stable and reliable performance

  3. High safety



Applications

  1. Industrial sensors

  2. Industrial control equipment

  3. Applications that require RS485 signal conversion



Specification

  1. Power Supply Voltage: 3.3~5V

  2. Communication baud rate up to 1M bps

  3. Up to 12V-2W power output (output current is about 160mA)

  4. Isolation voltage 3000 VDC

  5. Bus electrostatic protection capacity is up to 15kV

  6. 1/8 unit load, bus load capacity up to 256 nodes

  7. Bus fail protection and bus drive short circuit protection

  8. Operating temperature range: -40℃ to +105℃



Documents

Shipping List

  1. Gravity: Active Isolated RS485 to UART Signal Adapter Module x1

  2. Gravity-4pin UART Cable x1

COM03030
