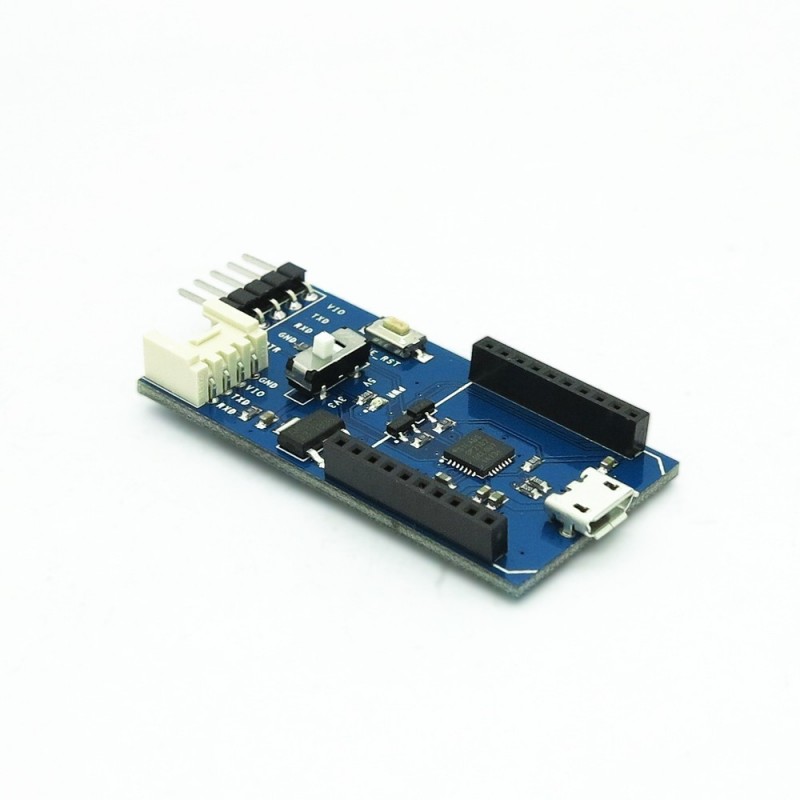

Foca Pro

: CNV01019
11,30 €

Foca Pro é uma placa USB para UART serie com interface socket XBee. É das ferramentas essenciais para estabelecer a comunicação entre PC e principalmente MCU ou para uso XBee.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Overview



Foca Pro is a USB to serial UART board with XBee interface socket. It’s the essential tool for establishing communication between PC and mostly MCU or use XBee. Especially, it’s a optimum tool for some Arduino based boards without USB interface, like Sniffer Nano, Colorduino and etc.



Specification



PCB size

26mm X 49.6mm X 1.6mm

Voltage Input

5V

Interface

UART

Indicator

PWR



Features



  • Single chip USB to asynchronous serial data transfer interface

  • Entire USB protocol handled on the chip – No firmware programming require

  • 5V Single Supply Operation and compatible with 3.3V/5V operation voltage

  • USB 2.0 Full Speed compatible

  • Compatible with Xbee

  • Compatible with 2.00mm Grove Electronic Interface



Electronic Characteristics

Min

Typical

Max

Unit

Power Supply

4.5

5

5.5

VDC

Input voltage VinH(Target Voltage = 3.3V )

3

3.3

3.6

V

Input voltage VinH(Target Voltage = 5V )

4.5

5

5.5

V

Input voltage VinL

-0.3

0

0.5

V

Current Consumption

-

20

40

mA

Packing list

1*Foca Pro



Documents



Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Module Type Adaptor
Weight 12.00g
Model IM141125006
Board Size 26mm X 49.6mm X 1.6mm
Version 1.0
Operation Level
  • Digital 3.3V
  • Digital 5V
Power Supply USB 5V



CNV01019
